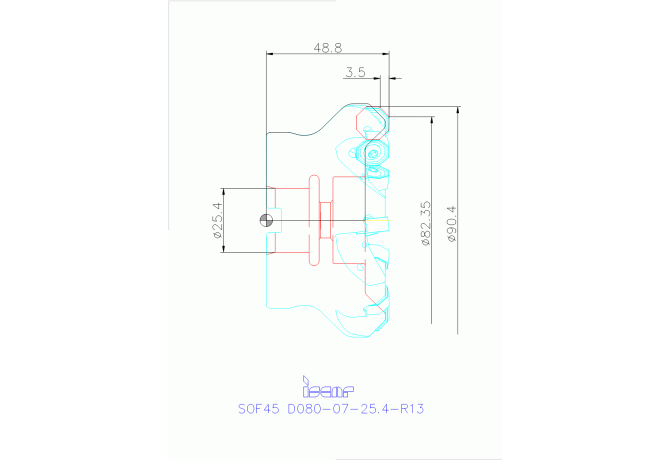

SOF45 D080-07-25.4-R13

SOF45 D080-07-25.4-R13

Iscar
Артикул: 3106107
В наличии
В корзину
Характеристики
BD Body diameter
92.9 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
82.65 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
86.35 mm
DHUB Hub diameter
70 mm
DIN
FDA02540215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Multifunction Face Mills for Octagonal, Square and Round Insert Contours with Various Entry Angles
HAND Cutting direction
R - Right
ID Technical product number
3106107
Interface codes
J6 / J61
ISO
FDA02G2540H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0254
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G2540H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02540215
Name Identifying order number
SOF45 D080-07-25.4-R13
OAL Overall length
50.2 mm
RMPX Ramping angle maximum
6 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
1.24 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
