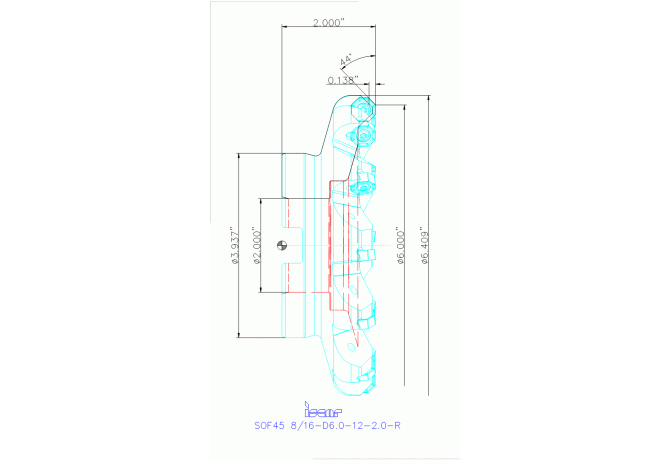

SOF45 8/16-D6.0-12-2.0-R

SOF45 8/16-D6.0-12-2.0-R

Iscar
Артикул: 3196820
В наличии
В корзину
Характеристики
A1A Cutting edge angle major Pos. A
135 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
4.5 mm
B3A Inscribed circle diameter Pos. A
13 mm
BD Body diameter
162.8902 mm
BLDA Tool style code Position A
9
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
5.2 mm
CCONMS Connection count machine side
1
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
152.4 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
162.7886 mm
Delivery state valid from
7/7/2017
DHUB Hub diameter
100.076 mm
DIN
FDA20001220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
12
FamilyProducts
Multifunction Face Mills for Octagonal, Square and Round Insert Contours with Va
HAND Cutting direction
R - Right
ID Technical product number
3196820
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA20001220
Name Identifying order number
SOF45 8/16-D6.0-12-2.0-R
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
2 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
FPL - Face milling
WT Weight of item
159.512 kg
ZEFF Face effective cutting edge count
12
ZEFP Peripheral effective cutting edge count
12
