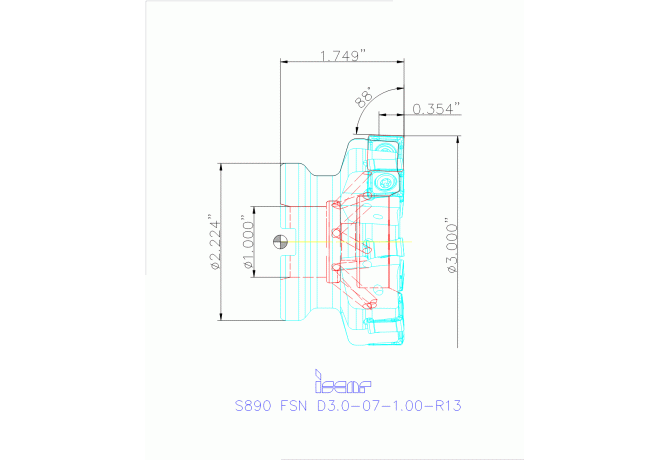

S890 FSN D3.0-07-1.00-R13

S890 FSN D3.0-07-1.00-R13

Iscar
Артикул: 3106092
В наличии
В корзину
Характеристики
BD Body diameter
79.2988 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
76.2 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
72.6948 mm
Delivery state valid from
7/7/2017
DHUB Hub diameter
56.388 mm
DIN
FDA10000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Face Mills Carrying Double-Sided Square Inserts with 8 Cutting Edges
HAND Cutting direction
R - Right
ID Technical product number
3106092
Interface codes
J6 / J61
ISO
FDA02G2540H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
89 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G2540H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000230
Name Identifying order number
S890 FSN D3.0-07-1.00-R13
OAL Overall length
44.45 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
35.814 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
