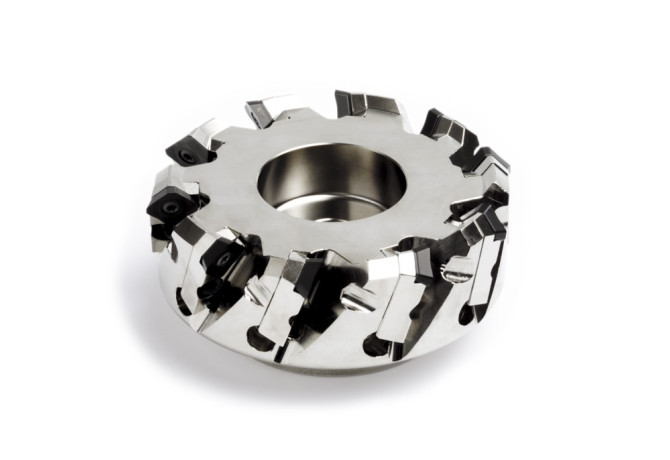

Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter R220.53-06.00-12-10C

R220.53-06.00-12-10C

R220.53-06.00-12-10C R220.53-06.00-12-10C R220.53-06.00-12-10C R220.53-06.00-12-10C

R220.53-06.00-12-10C

Seco
Артикул: 02536803
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
20 Degree
B1A Cutting edge length Pos. A
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.76 mm
CCONMS Connection count machine side
0
CDX Cutting depth maximum
6 mm
CICT Cutting item count
10
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
1 mm
DC Cutting diameter
160 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
172 mm
Delivery state valid from
6/7/2017
DHUB Hub diameter
90 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
R220.53-06.00-12-10C
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
20 Degree
HAND Cutting direction
R - Right
ID Technical product number
02536803
Interface codes
/
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
Name Identifying order number
R220.53-06.00-12-10C
RPMX Rotational speed maximum
5200 1/min
Working process
No working processes available
WT Weight of item
6.6 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
