Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter R220.29I-04.00-06.7A

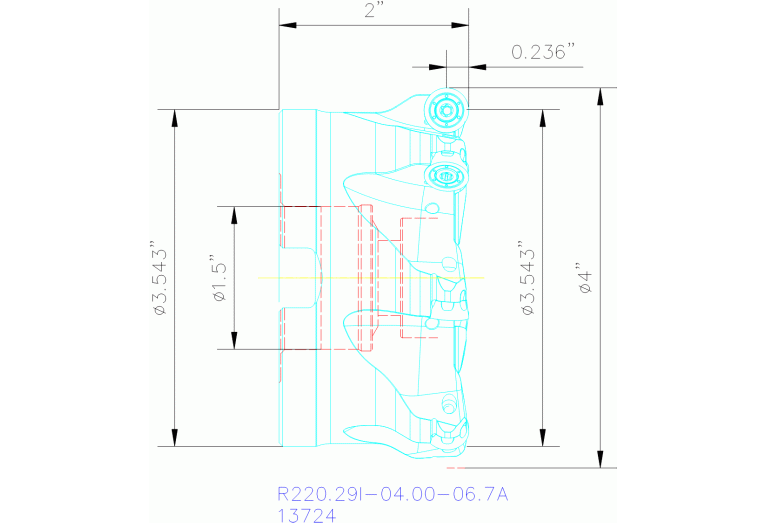

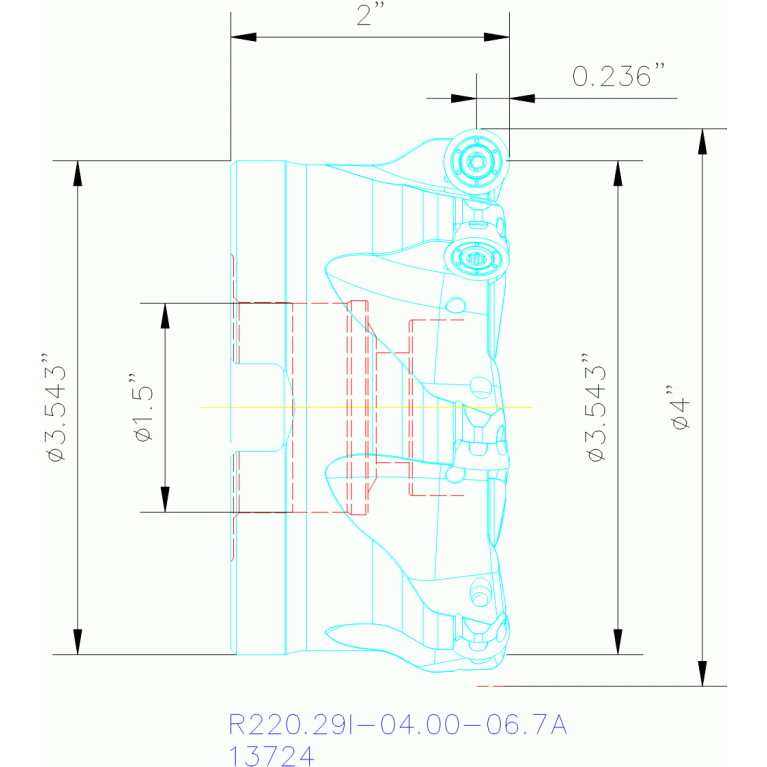

R220.29I-04.00-06.7A

R220.29I-04.00-06.7A R220.29I-04.00-06.7A R220.29I-04.00-06.7A R220.29I-04.00-06.7A

R220.29I-04.00-06.7A

Seco
Артикул: 02949649
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

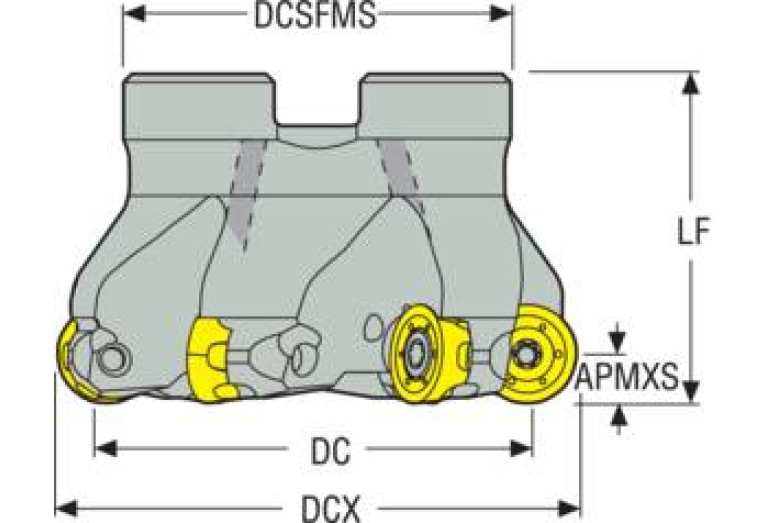

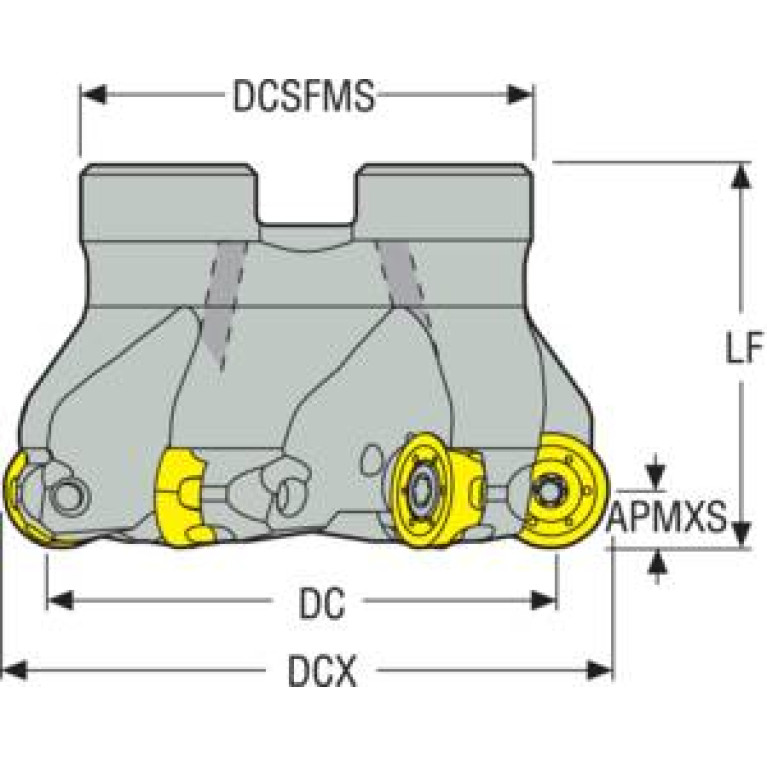

DC Cutting diameter
89.6 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
101.6 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
90 mm
DIN
FDA15002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
R220.29I-04.00-06.7A
GAMF Rake angle radial
-3 Degree
GAMP Rake angle axial
4 Degree
ID Technical product number
02949649
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
Name Identifying order number
R220.29I-04.00-06.7A
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
2 Degree
RPMX Rotational speed maximum
8800 1/min
Working process
No working processes available
WT Weight of item
1.699 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
