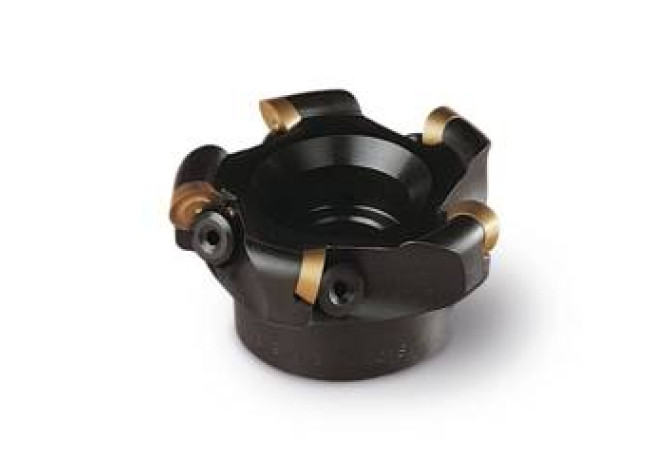

R220.23-0100-16

R220.23-0100-16 R220.23-0100-16 R220.23-0100-16 R220.23-0100-16

R220.23-0100-16

Seco
Артикул: 75012426
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
20 Degree
B3A Inscribed circle diameter Pos. A
16 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
5.56 mm
CCONMS Connection count machine side
3
CDX Cutting depth maximum
8 mm
CICT Cutting item count
6
COMPC Company code
SO - SECO Tools

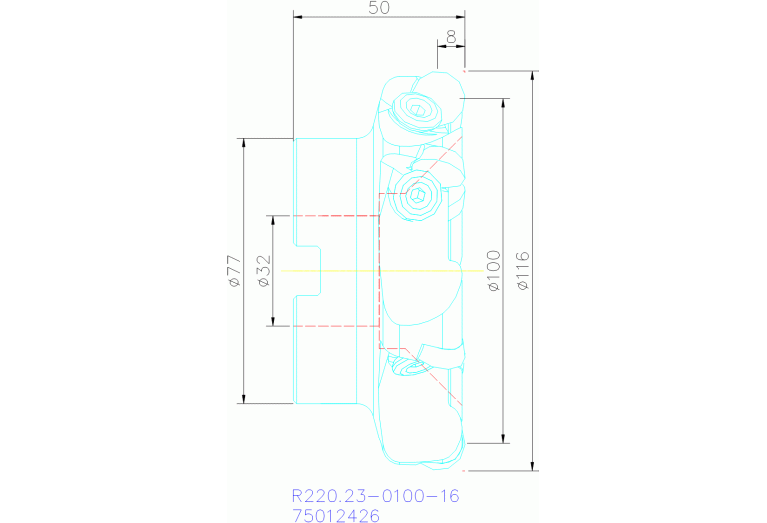

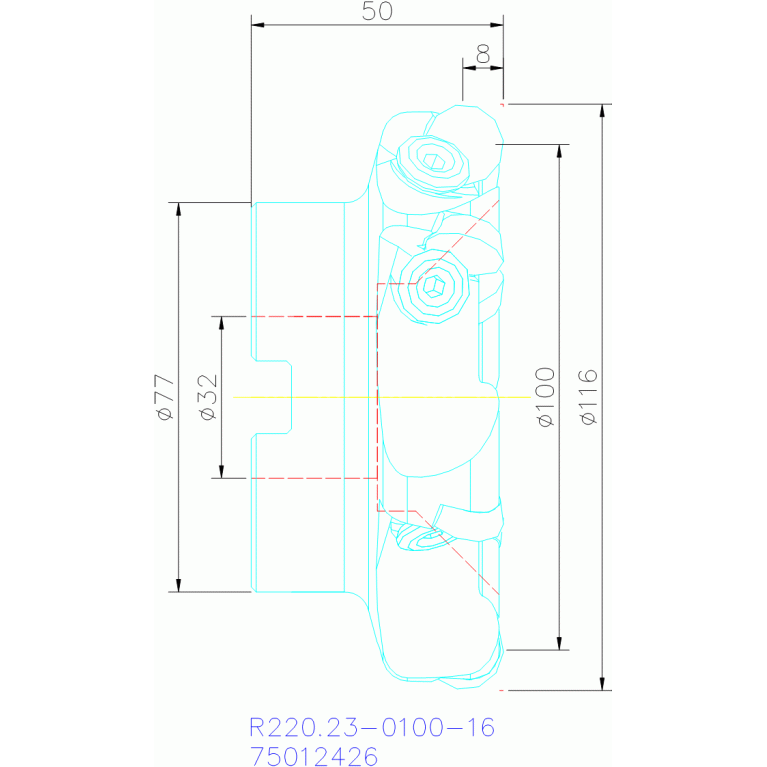

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
116 mm
Delivery state valid from
3/14/2020
DHUB Hub diameter
90 mm
DIN
FDA03202200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
R220.23-0100-16
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
14 Degree
HAND Cutting direction
R - Right
ID Technical product number
75012426
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
FDA22G3200H$07
ISYC Subclass
308-01 - Face milling cutter

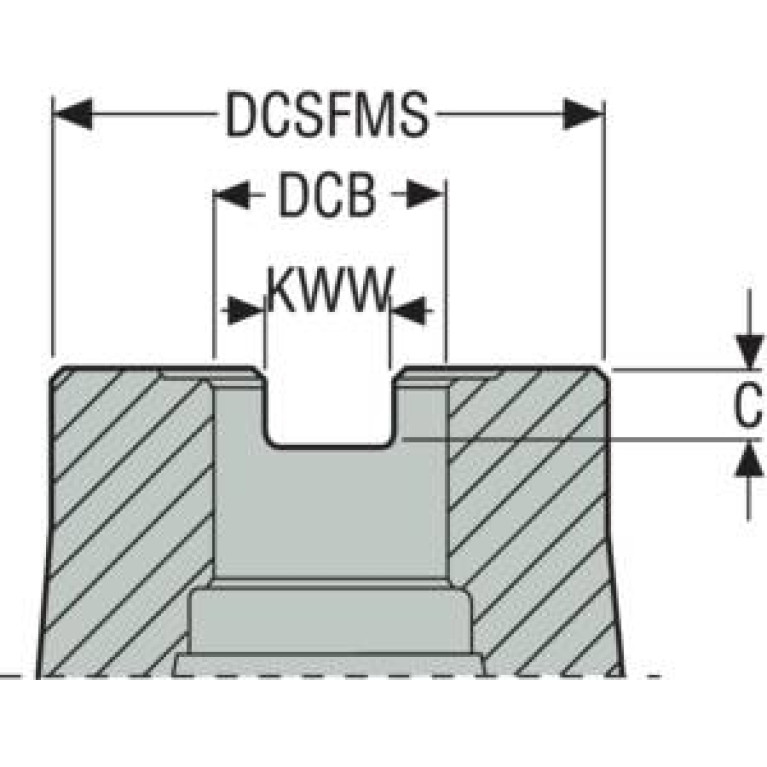

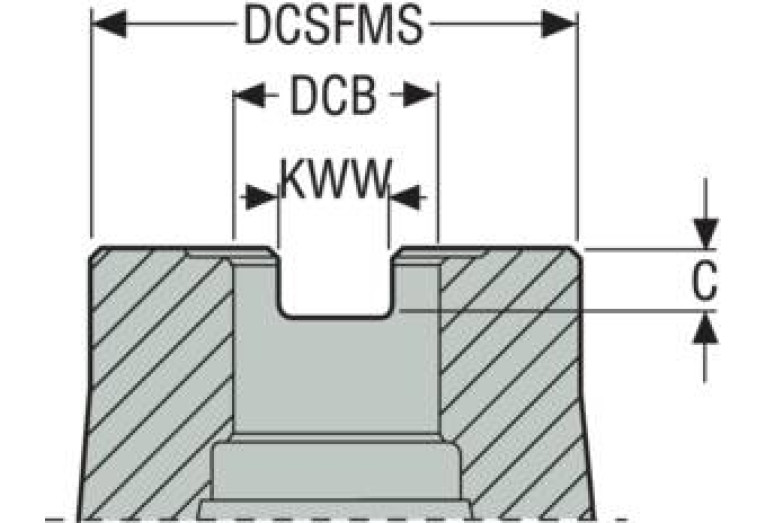

LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
FDA22G3200H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
Name Identifying order number
R220.23-0100-16
RPMX Rotational speed maximum
4400 1/min
Working process
No working processes available
WT Weight of item
1.6 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
