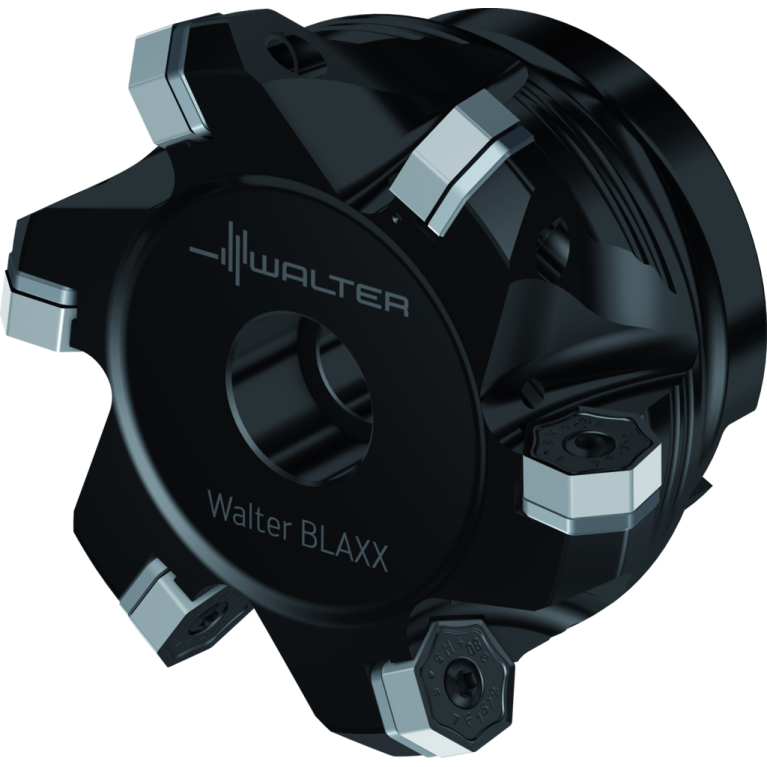

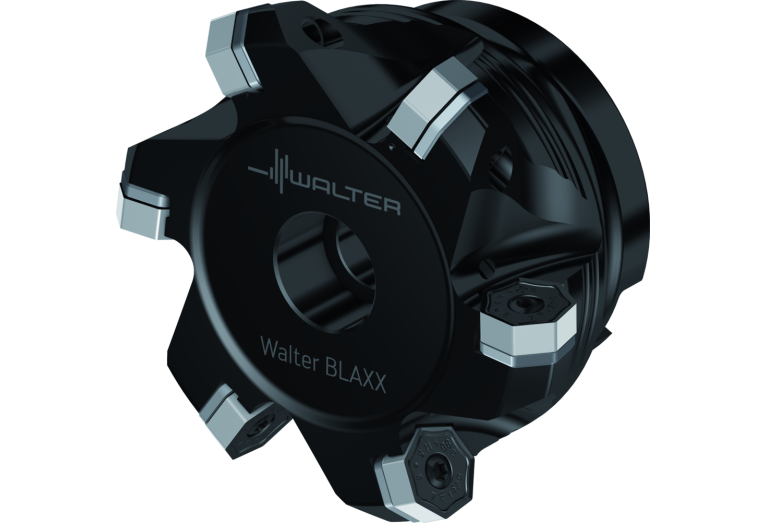

Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter M3024.152-B38-09-06

M3024.152-B38-09-06

M3024.152-B38-09-06 M3024.152-B38-09-06 M3024.152-B38-09-06

M3024.152-B38-09-06

Walter
Артикул: 6943629
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.5 mm
BD Body diameter
163.609 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
33 mm

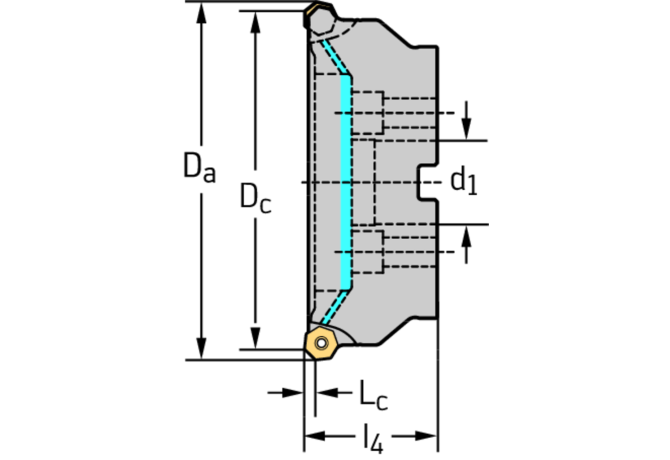

DC Cutting diameter
152.4 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
165.26 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
122.4 mm
DIN
FDA15001230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
9
FamilyProducts
Heptagon face milling cutters M3024
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6943629
Interface codes
J6 / J61
ISO
FDA12S1500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA12S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15001230
Name Identifying order number
M3024.152-B38-09-06
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
4300 1/min
Working process
FPL - Face milling
WT Weight of item
7.114 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
