Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter IQ845 FSYD4.0-10-1.50-R07

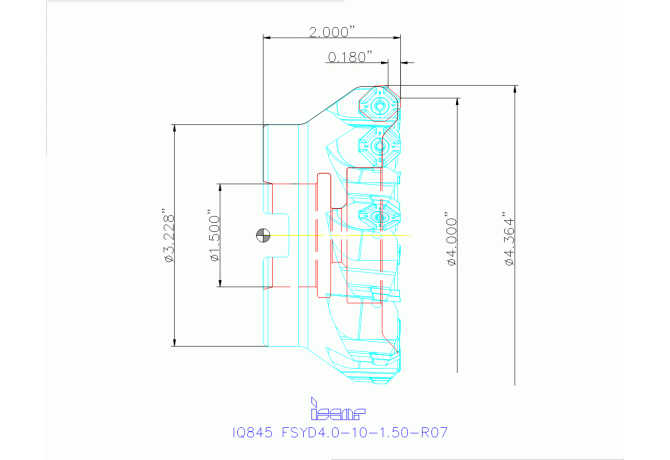

IQ845 FSYD4.0-10-1.50-R07

IQ845 FSYD4.0-10-1.50-R07 IQ845 FSYD4.0-10-1.50-R07

IQ845 FSYD4.0-10-1.50-R07

Iscar
Артикул: 3106552
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
B1A Cutting edge length Pos. A
13.8 mm
B3A Inscribed circle diameter Pos. A
13.8 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
4.2 mm
CCONMS Connection count machine side
2
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
3.4 mm
DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
110.998 mm
Delivery state valid from
7/7/2017
DHUB Hub diameter
82.042 mm
DIN
FDA15000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
50\S\0 Face Mills Carrying Square Inserts with 8 Cutting Edges
HAND Cutting direction
R - Right
ID Technical product number
3106552
Interface codes
J6 / J61
ISO
FDA02G3810H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
50 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA02G3810H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15000230
Name Identifying order number
IQ845 FSYD4.0-10-1.50-R07
OAL Overall length
50.8 mm
Working process
No working processes available
WT Weight of item
92.202 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
