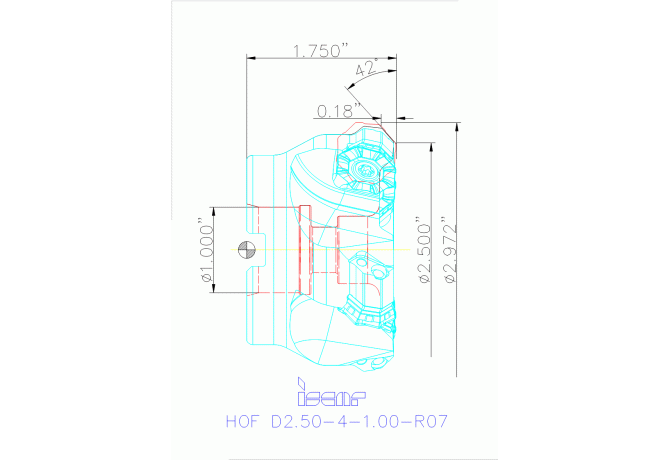

HOF D2.50-4-1.00-R07

Артикул: 3103251

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

135 Degree

A2A Clearance angle major Pos. A

25 Degree

B1A Cutting edge length Pos. A

3.9 mm

B3A Inscribed circle diameter Pos. A

18.07 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

4.54 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1 mm

D6A Wiper edge length Pos. A

1.75 mm

DC Cutting diameter

63.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

75.4888 mm

Delivery state valid from

7/7/2017

DHUB Hub diameter

56.2102 mm

DIN

FDA10000220

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face Mills Carrying Octagonal Round and High Feed Segmented Radius Inserts

HAND Cutting direction

R - Right

ID Technical product number

3103251

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

42 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10000220

Name Identifying order number

HOF D2.50-4-1.00-R07

OAL Overall length

44.45 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

34.544 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
