Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter FF FWX D1.50-05-0.50-05

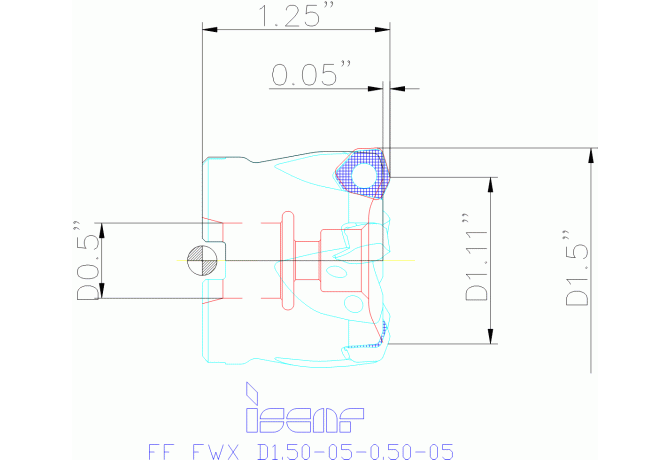

FF FWX D1.50-05-0.50-05

FF FWX D1.50-05-0.50-05

FF FWX D1.50-05-0.50-05

FF FWX D1.50-05-0.50-05

FF FWX D1.50-05-0.50-05

Iscar

Артикул: 3105552

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

5.5 mm

B3A Inscribed circle diameter Pos. A

8.33 mm

BLDA Tool style code Position A

7

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

4.2 mm

CCONMS Connection count machine side

1

CICT Cutting item count

5

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1.2 mm

DC Cutting diameter

28.194 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

38.1 mm

Delivery state valid from

7/7/2017

DHUB Hub diameter

35.0012 mm

DIN

FDA05002230

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

5

FamilyProducts

Fast Feed Face Mills Carrying Double-Sided Inserts with 6 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3105552

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

17 Degree

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA05002230

Name Identifying order number

FF FWX D1.50-05-0.50-05

OAL Overall length

31.75 mm

RMPX Ramping angle maximum

3 Degree

Working process

No working processes available

WT Weight of item

9.144 kg

ZEFF Face effective cutting edge count

5

ZEFP Peripheral effective cutting edge count

5
