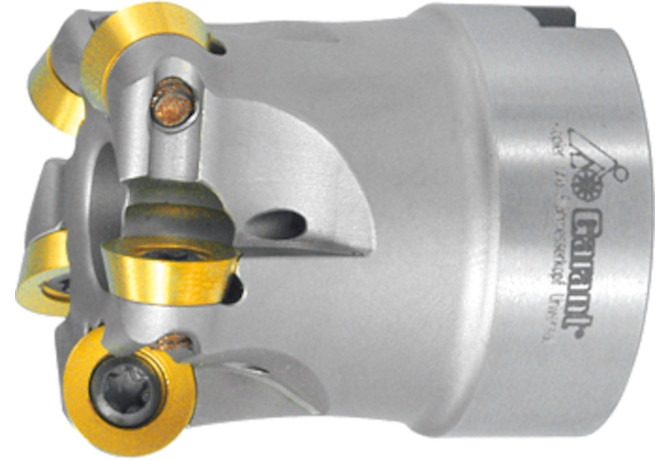

Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter 212130 35/3

212130 35/3

212130 35/3

Hoffmann Group

Артикул: 212130 35/3

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

10 mm

BD Body diameter

32 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

3.18 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

2.5 mm

CICT Cutting item count

3

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

35 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

Delivery state valid from

10/1/2016

DHUB Hub diameter

32 mm

DIN

FDA01602210

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

3

FamilyProducts

Copy milling cutter 7° positive

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

7 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01602210

Name Identifying order number

212130 35/3

OAL Overall length

40 mm

Working process

No working processes available

WT Weight of item

0.14 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
