Главная Каталог продукции СЗЦПК инструмент 17 309-09 - System tool for internal turning C6-PTFNR-35175-22-W

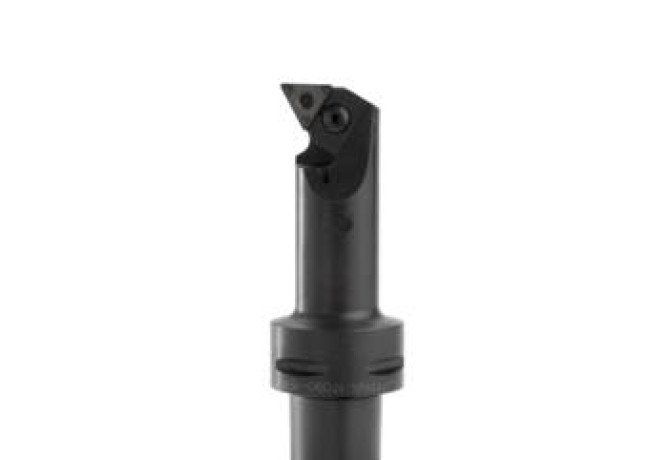

C6-PTFNR-35175-22-W

C6-PTFNR-35175-22-W C6-PTFNR-35175-22-W C6-PTFNR-35175-22-W C6-PTFNR-35175-22-W

C6-PTFNR-35175-22-W

Seco
Артикул: 02590048
В наличии
В корзину
Описание
Характеристики
BDRED Body diameter reduced
50 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300195
DMIN Minimum bore diameter
63 mm
FamilyProducts
C6-PTFNR-35175-22-W
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02590048
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0630$$$$
ISO CSW1
ISO$TN2204**2RB****
ISYC Subclass
309-09 - System tool for internal turning

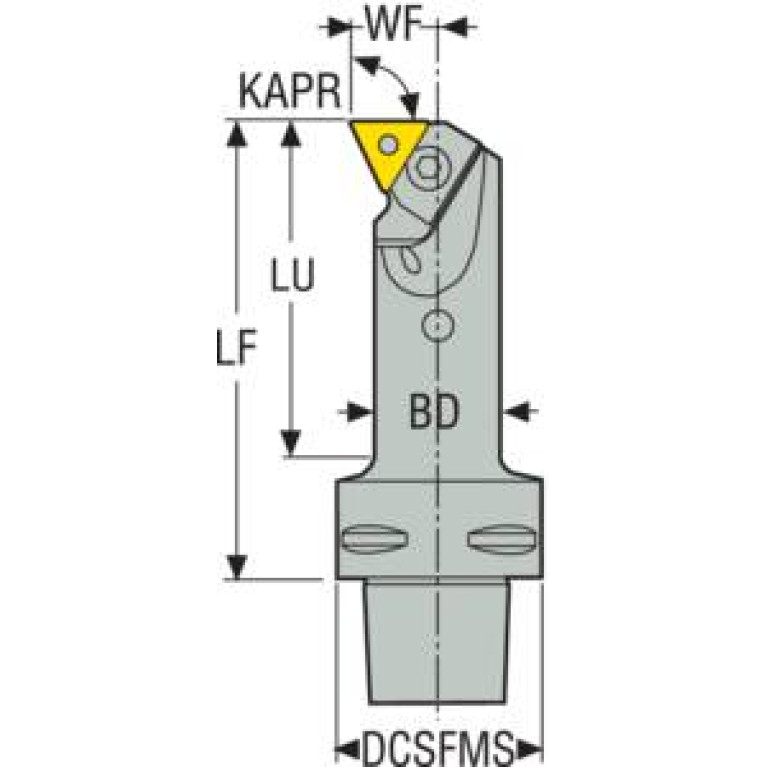

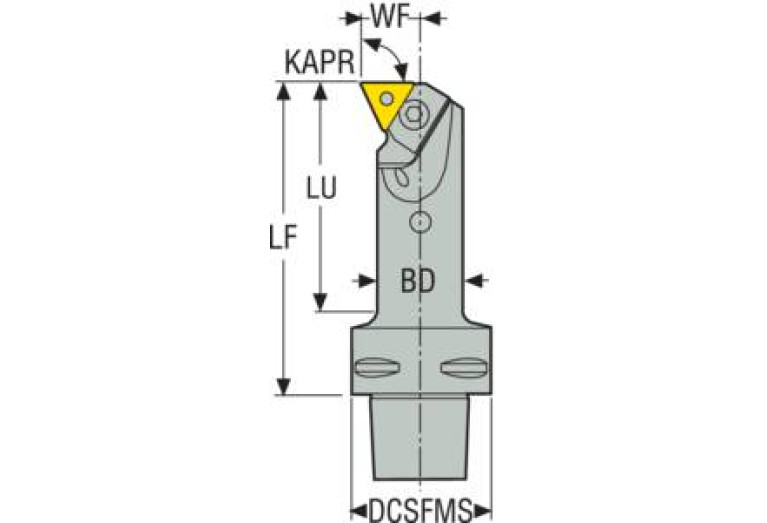

KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-10 Degree

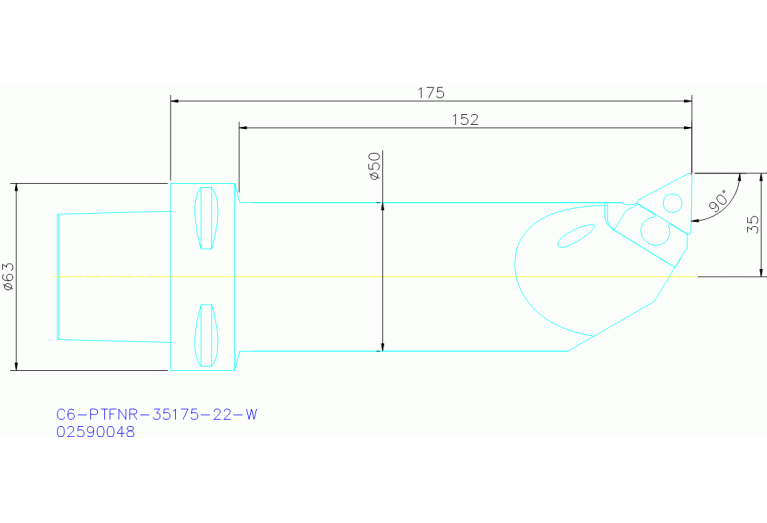

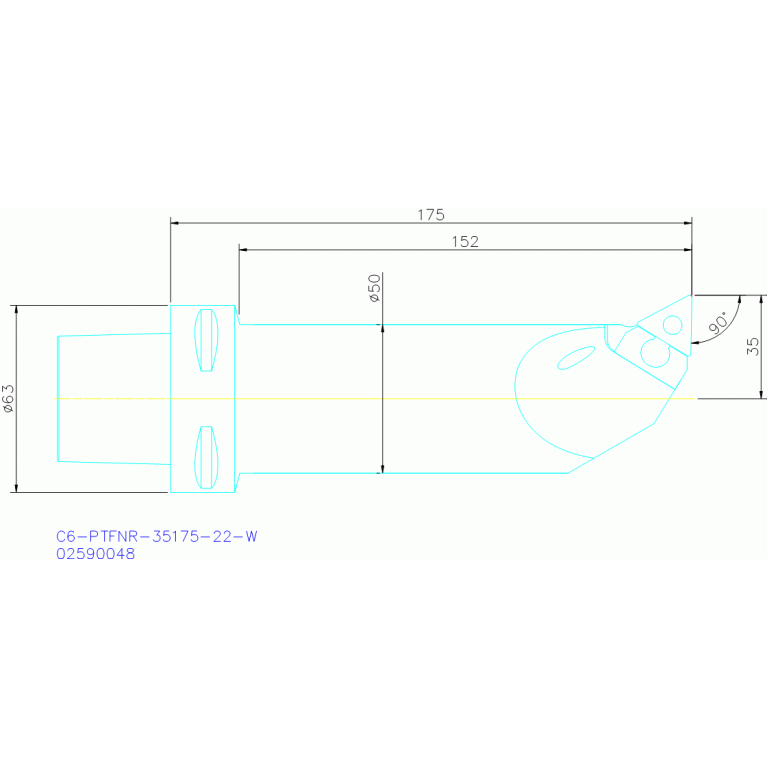

LF Functional length
175 mm
LH Head length
152 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LTA Length tool assembly
175 mm
MIID Master insert identification
TN2204
MTP Clamping type code
W
Name Identifying order number
C6-PTFNR-35175-22-W
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
2.8 kg
