Главная Каталог продукции Toolunited 17 309-09 - System tool for internal turning C4-STFCR-11070-11

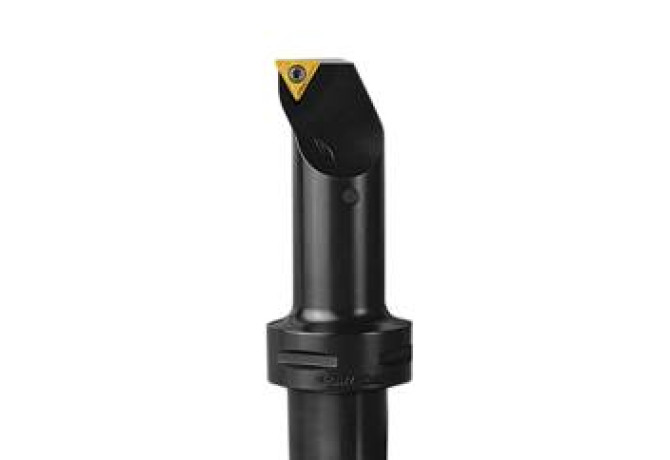

C4-STFCR-11070-11

C4-STFCR-11070-11 C4-STFCR-11070-11 C4-STFCR-11070-11 C4-STFCR-11070-11

C4-STFCR-11070-11

Seco
Артикул: 00084501
В наличии
В корзину
Описание
Характеристики

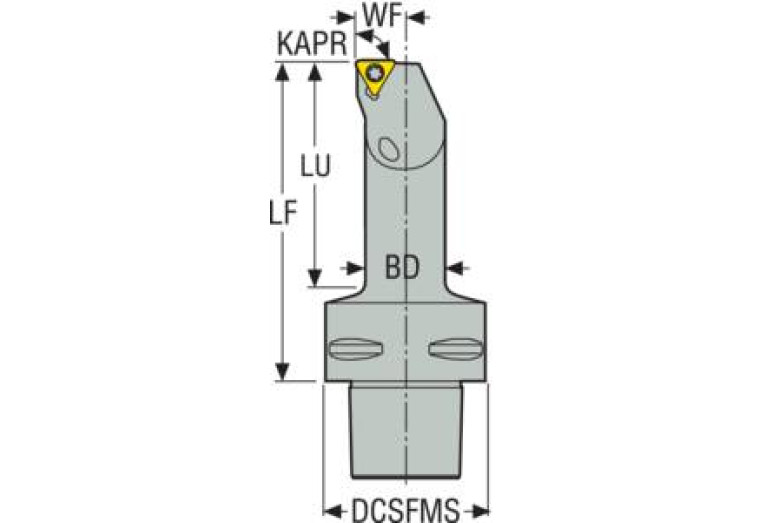

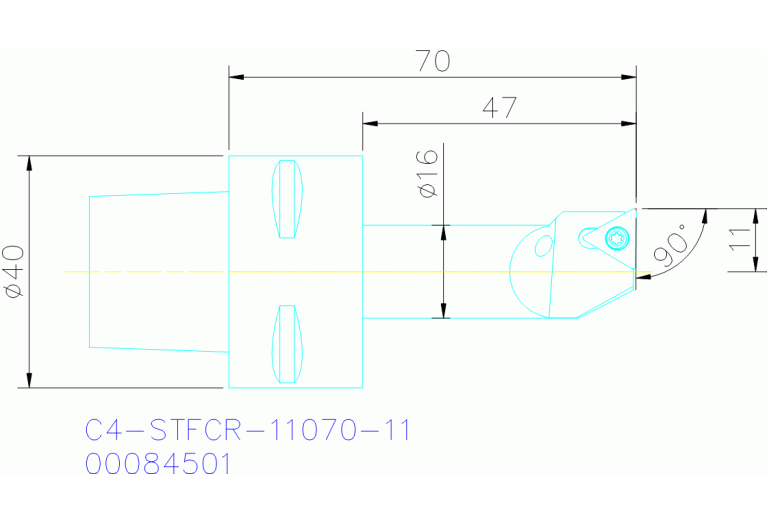

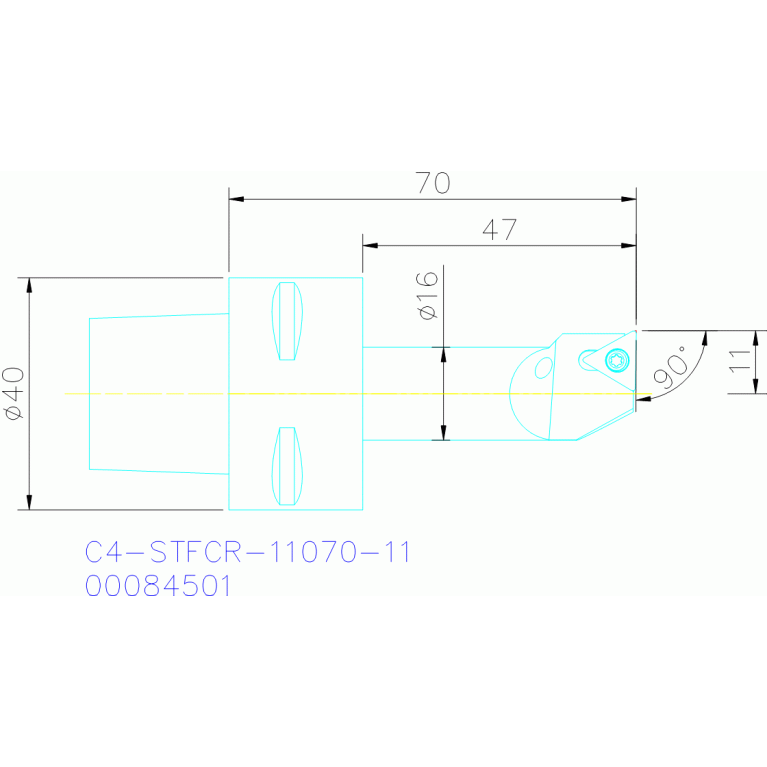

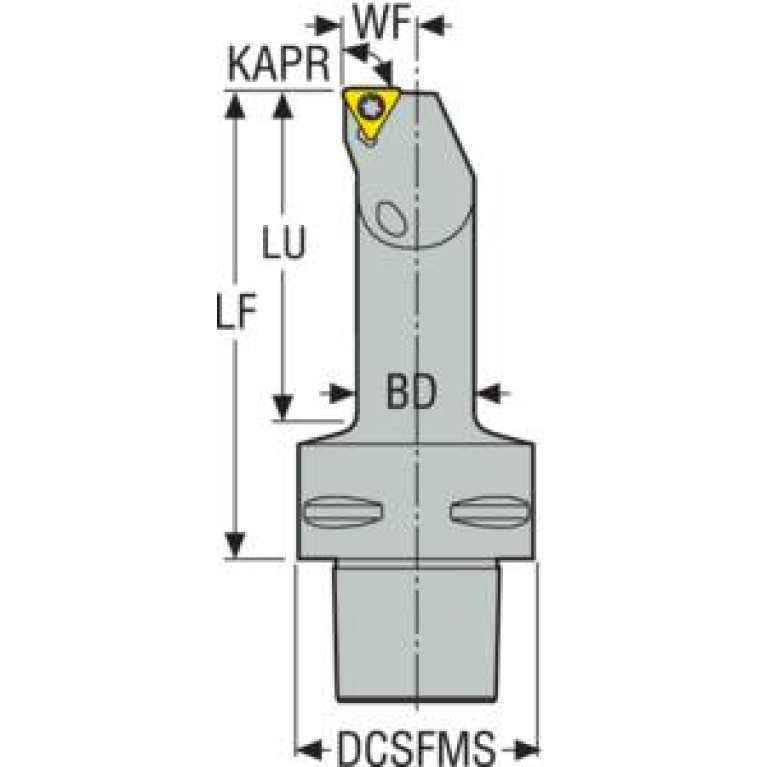

A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BDRED Body diameter reduced
16 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS04000195
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
60 Degree
FamilyProducts
C4-STFCR-11070-11
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
00084501
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0400$$$$
ISO CSW1
ISO$TC1102**3RB****
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-4 Degree
LF Functional length
70 mm
LH Head length
47 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LTA Length tool assembly
70 mm
MIID Master insert identification
TCGT110201-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C4-STFCR-11070-11
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.312 kg
