Главная Каталог продукции Toolunited 17 309-00 - Tool holder for indexable inserts unspecified GR075B-V21

GR075B-V21

Артикул: 00051869

В наличии

В корзину

Описание

Характеристики

BI Block index

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT12120125

FamilyProducts

GR075B-V21

HAND Cutting direction

R - Right

ID Technical product number

00051869

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO CSW1

SMS01V21CLRGR

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

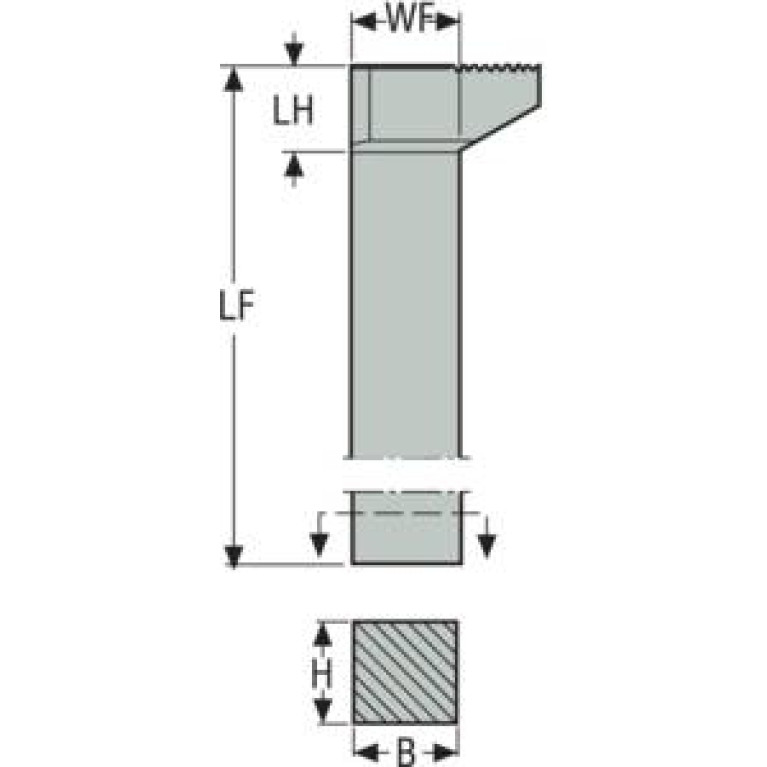

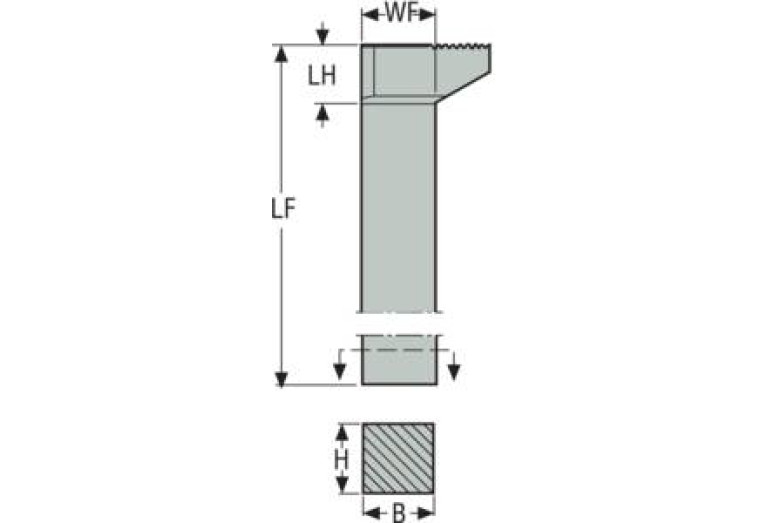

LF Functional length

114.3 mm

LH Head length

16 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

Blade-V21

LOC-01 ISO

SMS01V21CLRGR

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-02 BI Block index

LOC-02 MIID Master insert identification

Blade-V21

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

SO-SMS01V21CLRGR

LOC-03 B Shank width

19.05 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120125

LTA Length tool assembly

114.3 mm

MIID Master insert identification

Blade-V21

Name Identifying order number

GR075B-V21

WF Functional width

19.05 mm

Working process

No working processes available

WT Weight of item

0.39 kg
