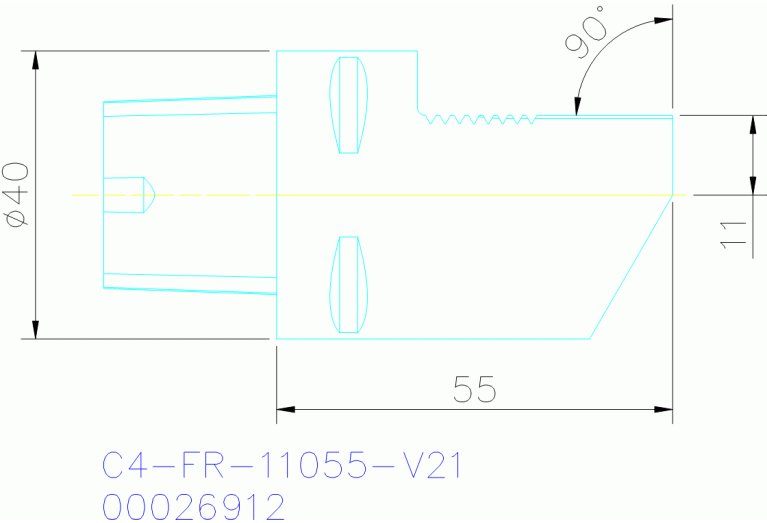

Главная Каталог продукции Toolunited 17 309-00 - Tool holder for indexable inserts unspecified C4-FR-11055-V21

C4-FR-11055-V21

Артикул: 00026912

В наличии

В корзину

Описание

Характеристики

BDRED Body diameter reduced

40 mm

BI Block index

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

CCS04000185

FamilyProducts

C4-FR-11055-V21

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

00026912

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0400$$$$

ISO CSW1

SMS01V21CRLFRSMS01V21CRNFRSMS01V21CRRFR

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LF Functional length

55 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

Blade-V21

LOC-01 ISO

SMS01V21CRLFRSMS01V21CRNFRSMS01V21CRRFR

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-02 BI Block index

LOC-02 MIID Master insert identification

Blade-V21

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

SO-SMS01V21CRLFR

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

CCS01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000185

LTA Length tool assembly

55 mm

MIID Master insert identification

Blade-V21

Name Identifying order number

C4-FR-11055-V21

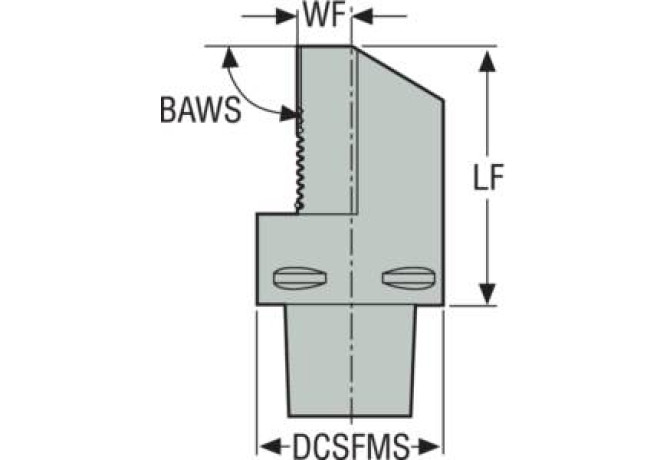

WF Functional width

11.6 mm

Working process

No working processes available

WT Weight of item

0.476 kg
