Главная Каталог продукции Toolunited 17 309-04 - Turning tool for OD grooving and parting L64T.1616.4.10.IK

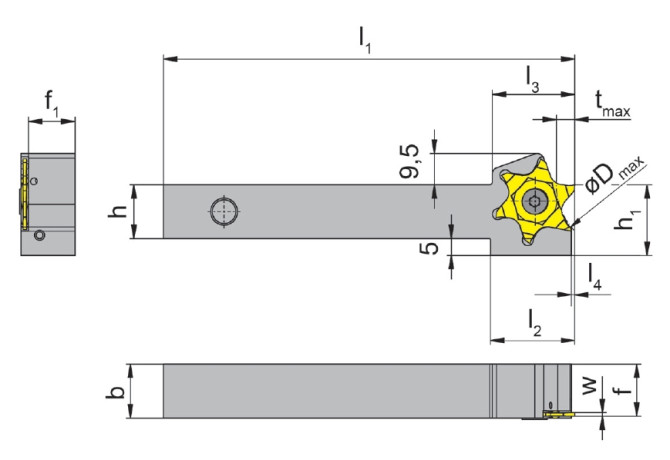

L64T.1616.4.10.IK

L64T.1616.4.10.IK L64T.1616.4.10.IK

L64T.1616.4.10.IK

Paul Horn
Артикул: L64T1616410IK
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
5.5 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HORN - Paul Horn
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/23/2016
DIN
VKT16160105
DIN CSW1
HORN-S64T-01
END KAPP DIST End chamfer distance
1 mm
FamilyProducts
Toolholder type 64T
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
21 mm
ID Technical product number
L64T1616410IK
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
125 mm
LH Head length
24.5 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
LPR Protruding length
25 mm
Name Identifying order number
L64T.1616.4.10.IK
OAL Overall length
125 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
13.8 mm
Working process
DEA - Outer diameter grooving
