Главная Каталог продукции Toolunited 17 309-04 - Turning tool for OD grooving and parting I12R90-2.5D-GX09-E

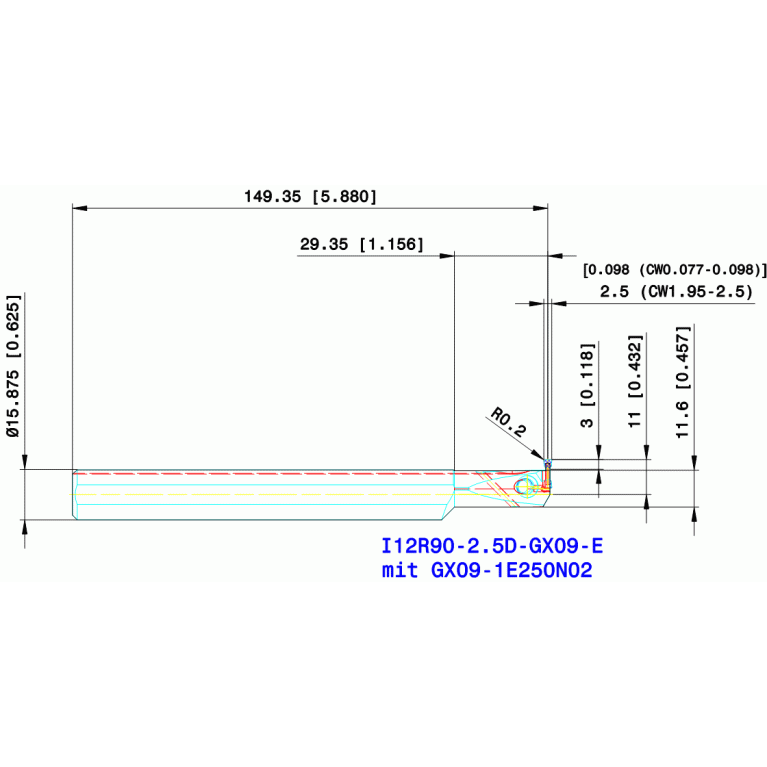

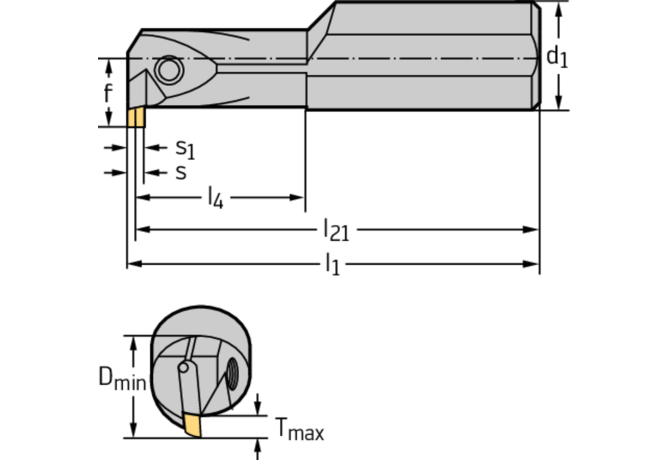

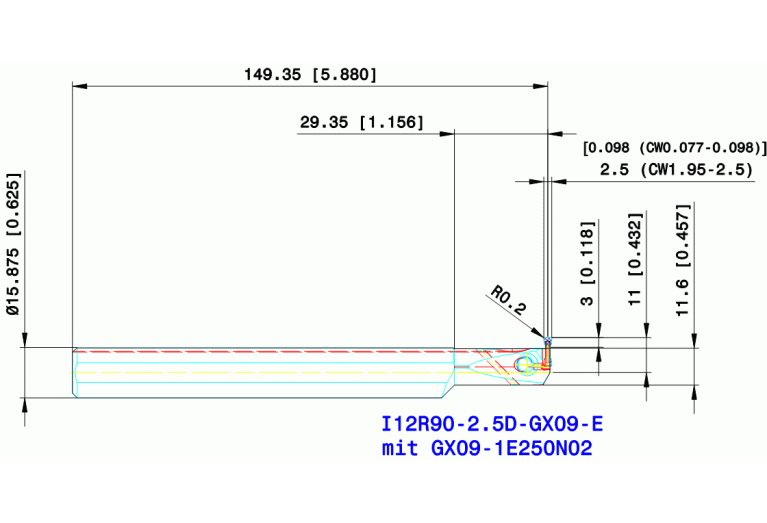

I12R90-2.5D-GX09-E

I12R90-2.5D-GX09-E I12R90-2.5D-GX09-E I12R90-2.5D-GX09-E

I12R90-2.5D-GX09-E

Walter
Артикул: 5029057
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
3 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL62500125
DIN CSW1
W-GX0910EX
FamilyProducts
Boring bar – Internal grooving I12
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5029057
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
ZYL01R6250$$$$
ISO CSW1
WR$$GX091000***EX**
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
149.35 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03 ISO
ZYL01R6250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL62500125
LPR Protruding length
37 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
I12R90-2.5D-GX09-E
OAL Overall length
150.6 mm
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.327 kg
