Главная Каталог продукции Toolunited 17 309-04 - Turning tool for OD grooving and parting E25R0025-2525X-GX24-4 AS150-300

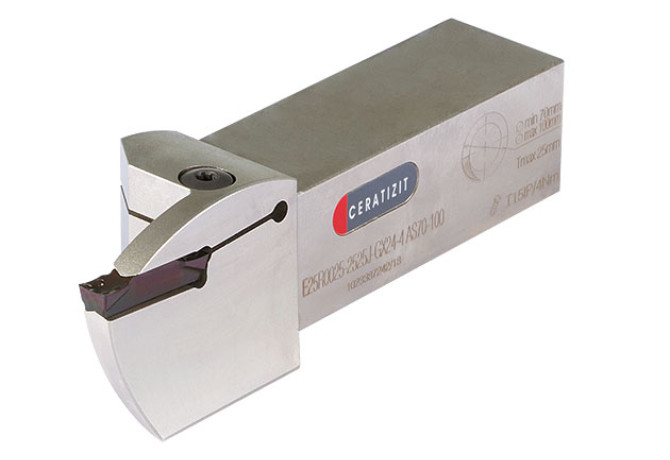

E25R0025-2525X-GX24-4 AS150-300

E25R0025-2525X-GX24-4 AS150-300 E25R0025-2525X-GX24-4 AS150-300

E25R0025-2525X-GX24-4 AS150-300

Ceratizit
Артикул: 11753817
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
25 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
DAXN Axial groove od min
150 mm
DAXX Axial groove od max
300 mm
DCP Data chip provision
0 - Without data chip
DHD Drop head design
0 - Normal
DIN
VKT25250105
DIN CSW1
CE-MSGX244N
FamilyProducts
holder for GX24 inserts, for axial grooving
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
11753817
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
115 mm
LH Head length
45 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
GX24-4.. E01
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
E25R0025-2525X-GX24-4 AS150-300
OAL Overall length
115 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
23.2 mm
Working process
DSS - Face grooving
