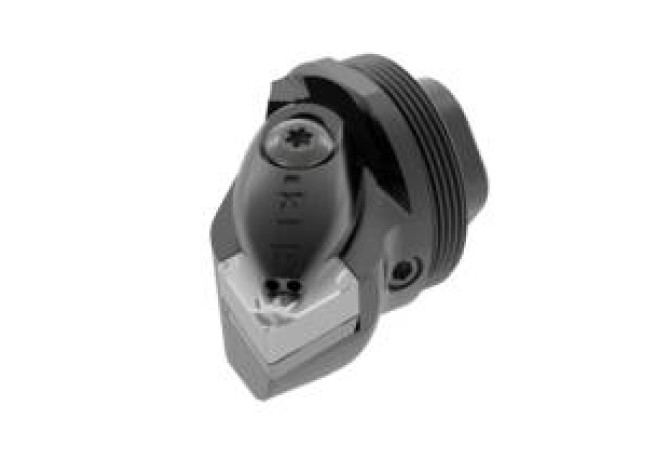

Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

GL50-DCLNR-32032-12JET

Seco

Артикул: 02994354

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.397 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GRL05000115

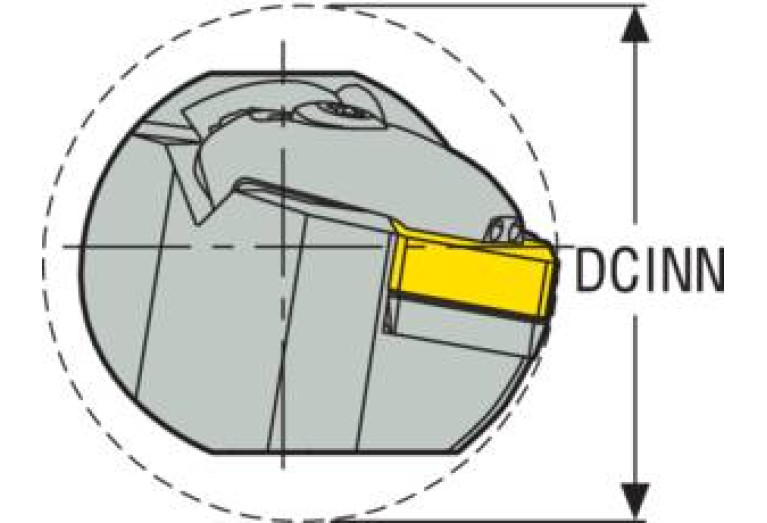

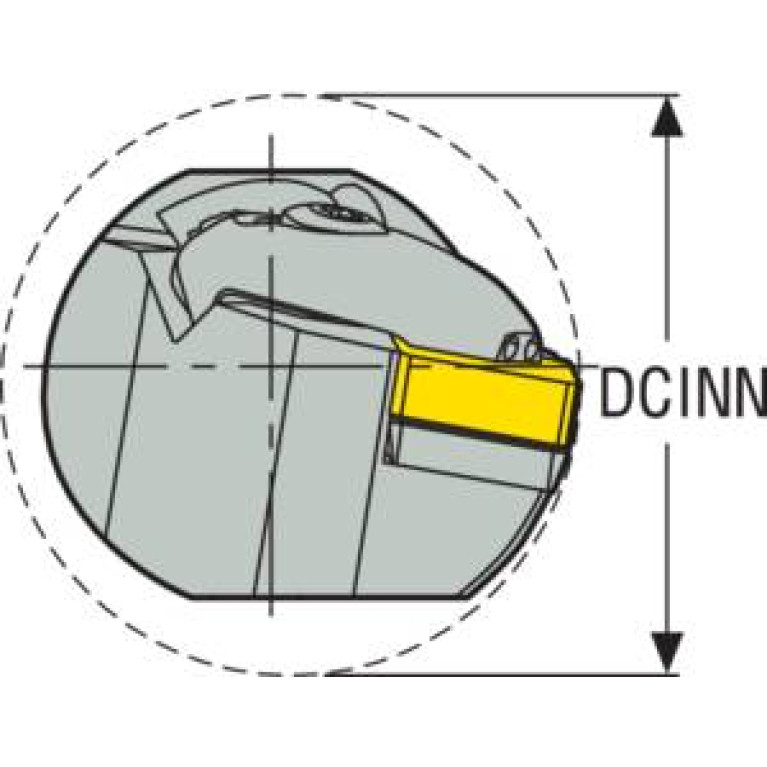

DMIN Minimum bore diameter

63 mm

FamilyProducts

GL50-DCLNR-32032-12JET

GAMF Rake angle radial

-7.45 Degree

GAMO Rake angle orthogonal

-6 Degree

GAMP Rake angle axial

-6.67 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

02994354

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO

SGL01C0500$$$$

ISO CSW1

ISO$CN1204**2RB****

ISYC Subclass

309-07 - System tool for external turning

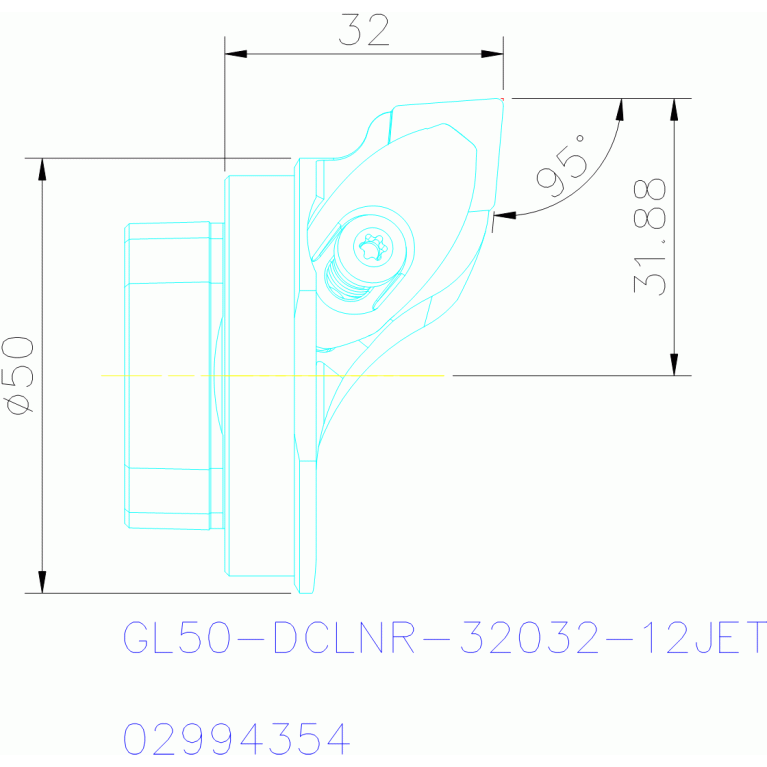

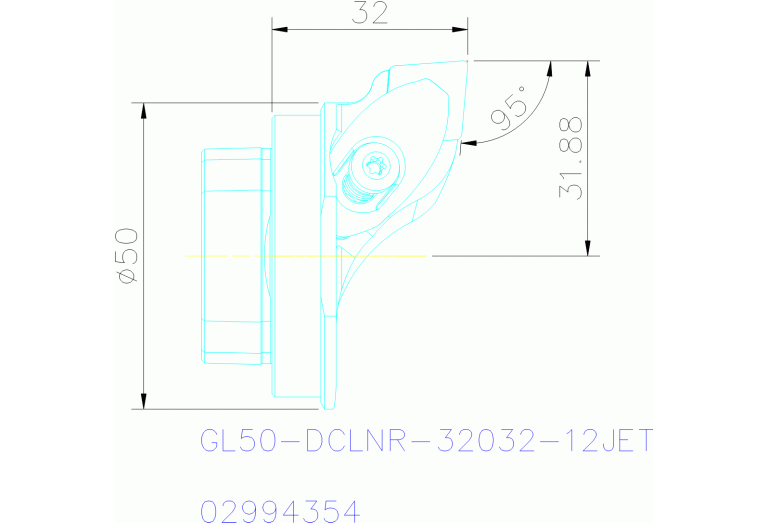

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-8 Degree

LF Functional length

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GRL GRANLUND

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SGL01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GRL05000115

LTA Length tool assembly

32 mm

MIID Master insert identification

CNGA120404S-02020-L1-B

MTP Clamping type code

D

Name Identifying order number

GL50-DCLNR-32032-12JET

STDDES Standard designation

GL50-DCLNR-32032-12J

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.288 kg
