Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning GL50-DCLNL-32037-16

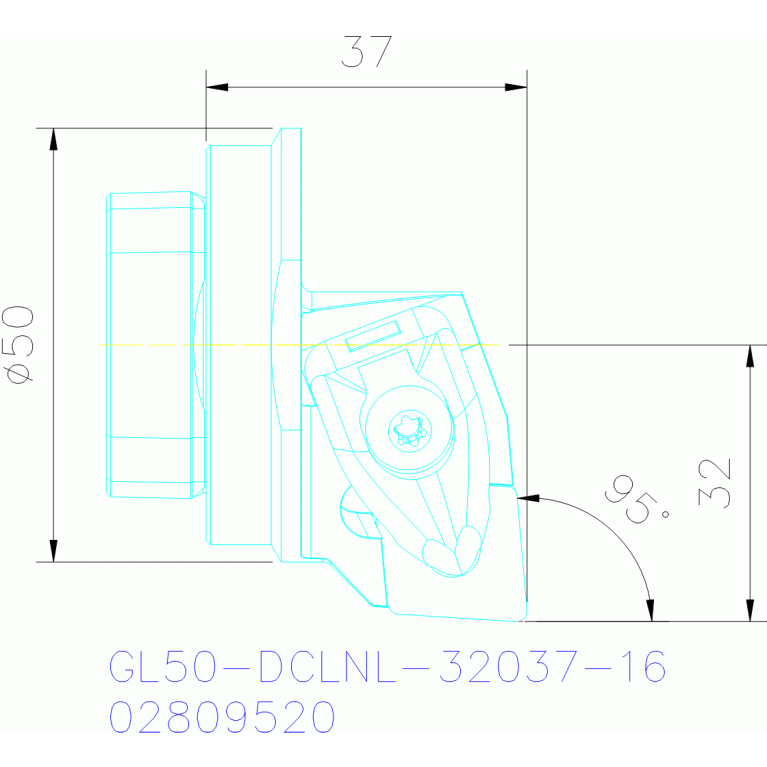

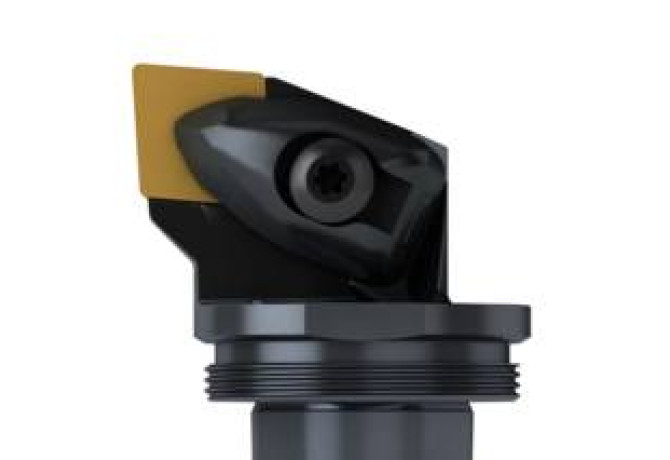

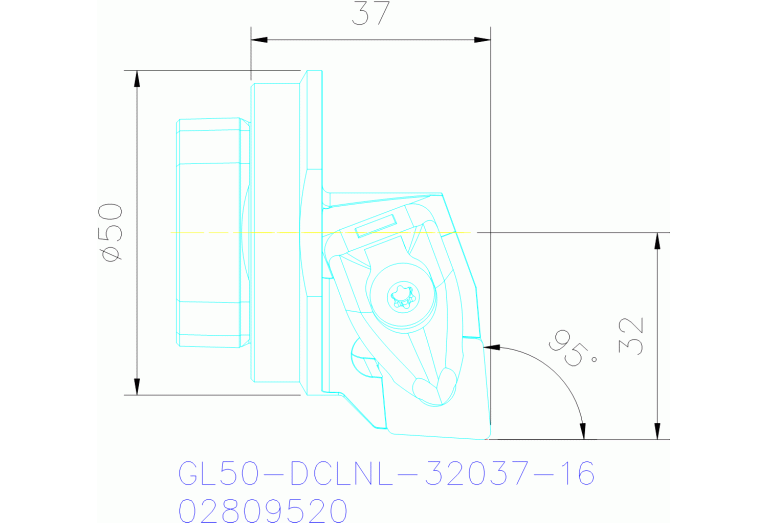

GL50-DCLNL-32037-16

GL50-DCLNL-32037-16 GL50-DCLNL-32037-16 GL50-DCLNL-32037-16 GL50-DCLNL-32037-16

GL50-DCLNL-32037-16

Seco
Артикул: 02809520
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL05000115

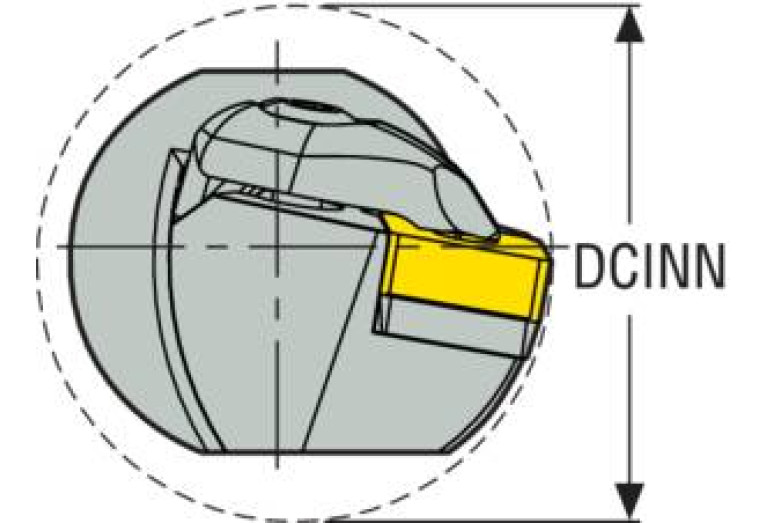

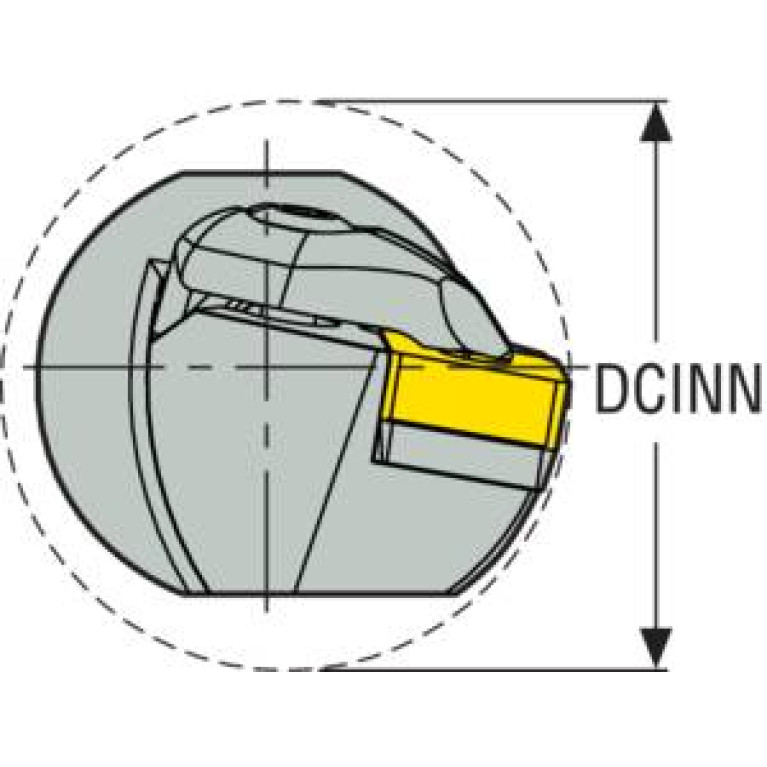

DMIN Minimum bore diameter
63 mm
EPSR Insert included angle
80 Degree
FamilyProducts
GL50-DCLNL-32037-16
GAMF Rake angle radial
-13.54 Degree
GAMO Rake angle orthogonal
-5 Degree
GAMP Rake angle axial
-6.21 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
02809520
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0500$$$$
ISO CSW1
ISO$CN1606**2LB****
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-14 Degree
LF Functional length
37 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SGL01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL05000115
LTA Length tool assembly
37 mm
MIID Master insert identification
CN1606
MTP Clamping type code
D
Name Identifying order number
GL50-DCLNL-32037-16
STDDES Standard designation
GL50-DCLNL-32037-16
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.346 kg
