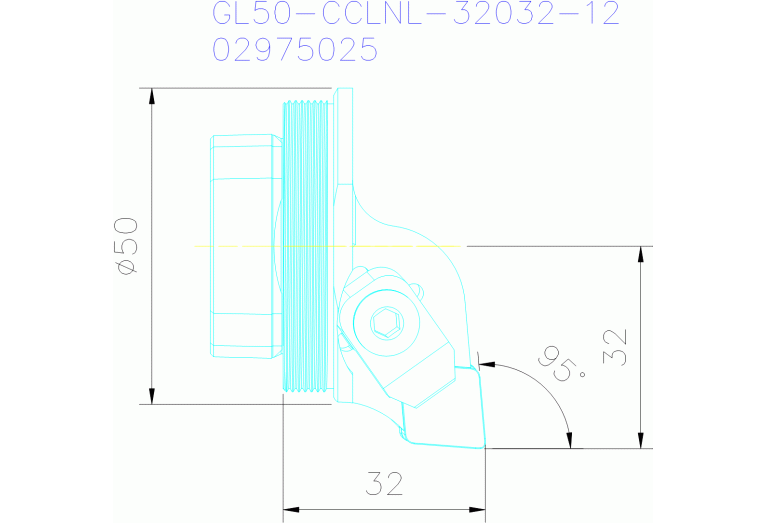

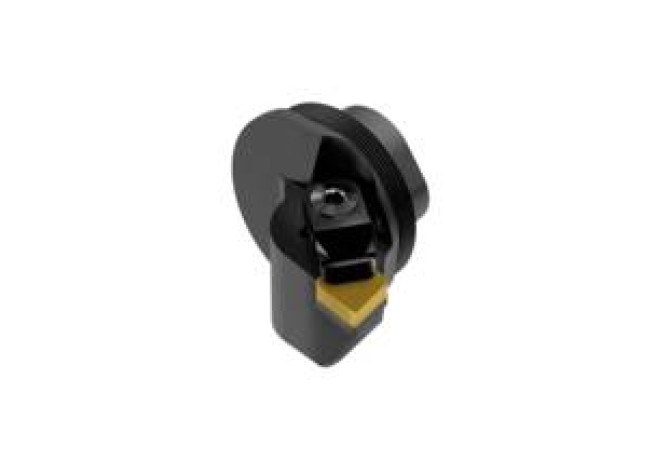

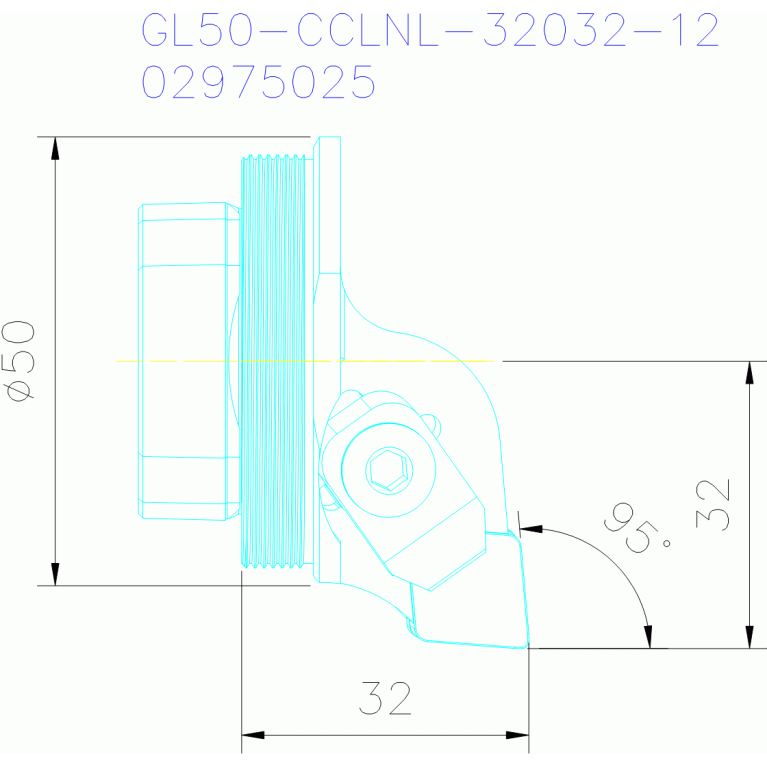

GL50-CCLNL-32032-12

GL50-CCLNL-32032-12 GL50-CCLNL-32032-12 GL50-CCLNL-32032-12 GL50-CCLNL-32032-12

GL50-CCLNL-32032-12

Seco
Артикул: 02975025
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.794 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL05000115
DMIN Minimum bore diameter
63 mm
EPSR Insert included angle
80 Degree
FamilyProducts
GL50-CCLNL-32032-12
GAMF Rake angle radial
-5.45 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6.53 Degree
HAND Cutting direction
L - Left
HF Functional height
0.05 mm
ID Technical product number
02975025
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0500$$$$
ISO CSW1
ISO$CN1204**2LB****
ISYC Subclass
309-07 - System tool for external turning

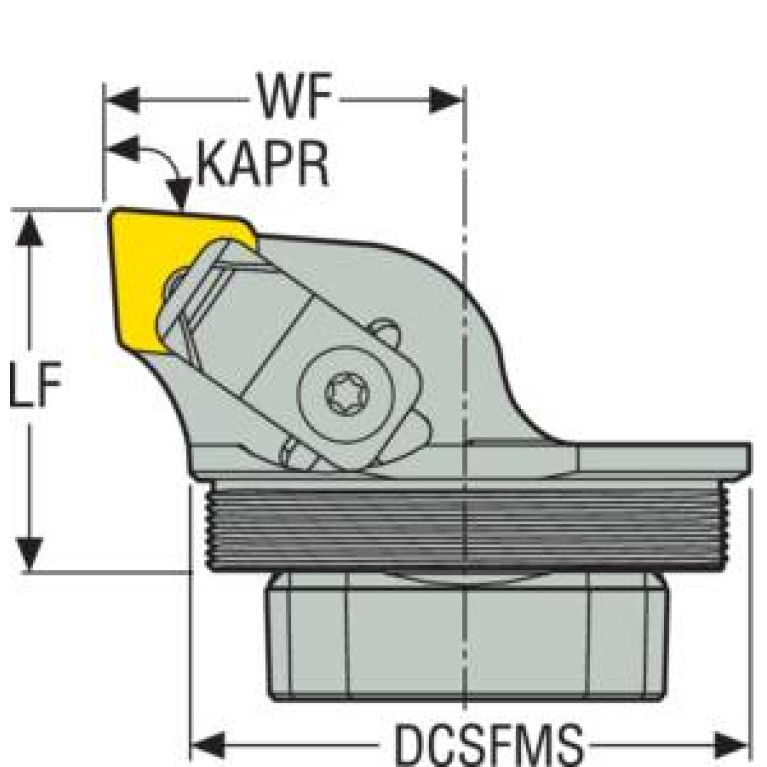

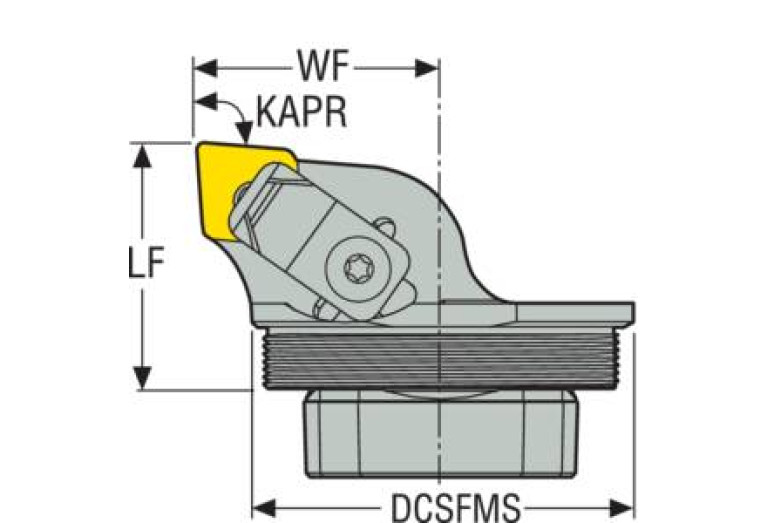

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SGL01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL05000115
LTA Length tool assembly
32 mm
MIID Master insert identification
CNGN120408S-01020
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
GL50-CCLNL-32032-12
STDDES Standard designation
GL50-CCLNL-32032-12
WF Functional width
31.88 mm
Working process
No working processes available
WT Weight of item
0.308 kg
