Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning GL40-STFCL-27032-16

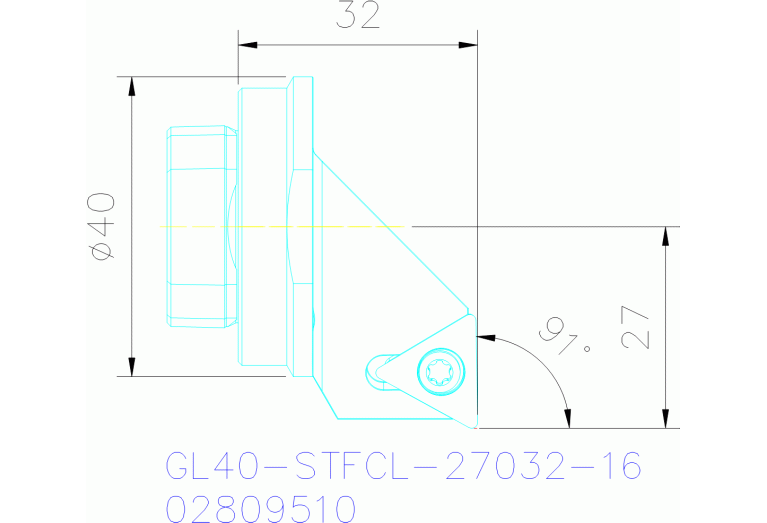

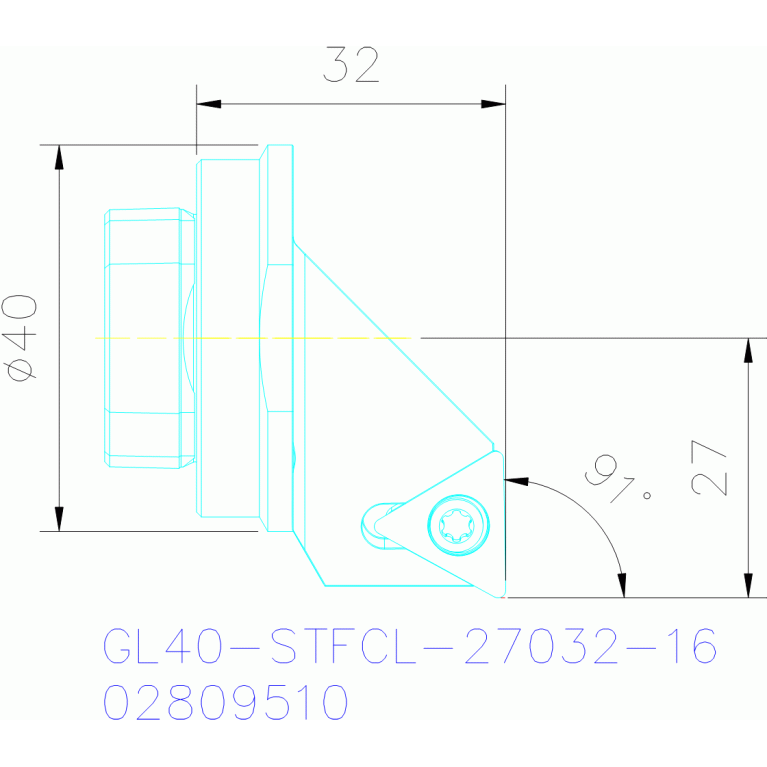

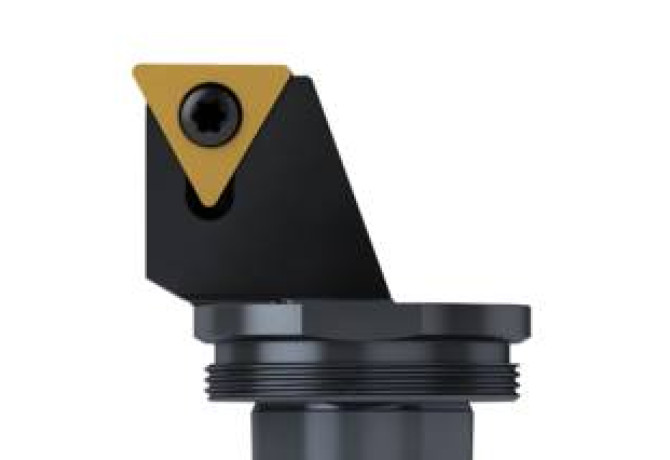

GL40-STFCL-27032-16

GL40-STFCL-27032-16

GL40-STFCL-27032-16

GL40-STFCL-27032-16

GL40-STFCL-27032-16

GL40-STFCL-27032-16

GL40-STFCL-27032-16

Seco

Артикул: 02809510

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.97 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GRL04000115

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

60 Degree

FamilyProducts

GL40-STFCL-27032-16

GAMF Rake angle radial

-8 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

-0.14 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

02809510

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO

SGL01C0400$$$$

ISO CSW1

ISO$TC16T3**3LB****

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

-8 Degree

LF Functional length

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GRL GRANLUND

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SGL01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GRL04000115

LTA Length tool assembly

32 mm

MIID Master insert identification

TCGX16T302WL-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

GL40-STFCL-27032-16

STDDES Standard designation

GL40-STFCL-27032-16

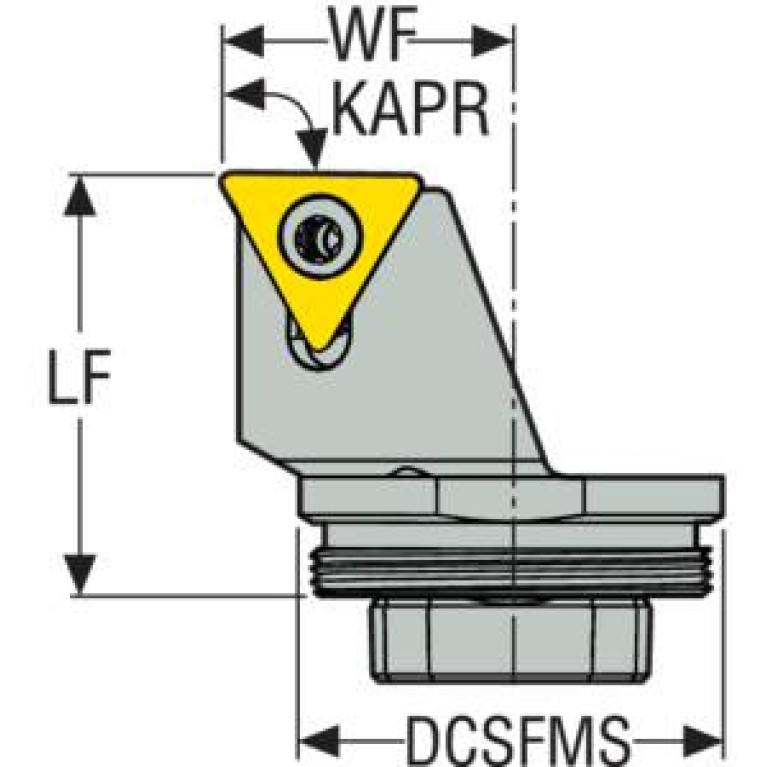

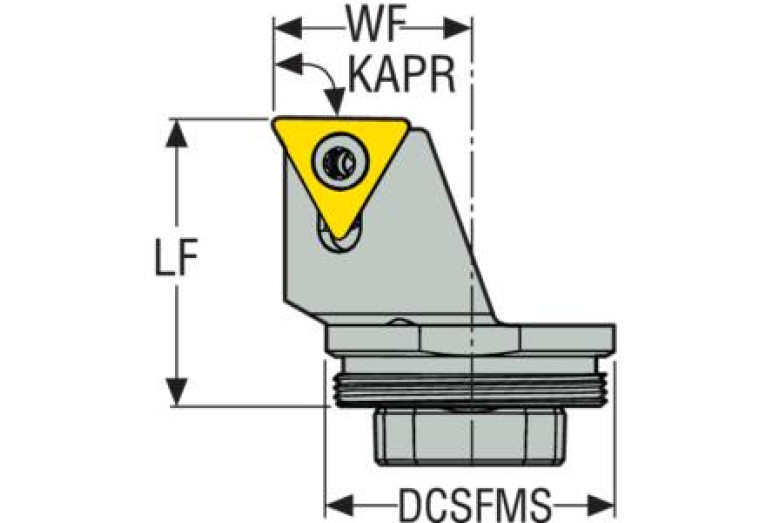

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

0.178 kg
