Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning GL32-SVUNL-22032-13

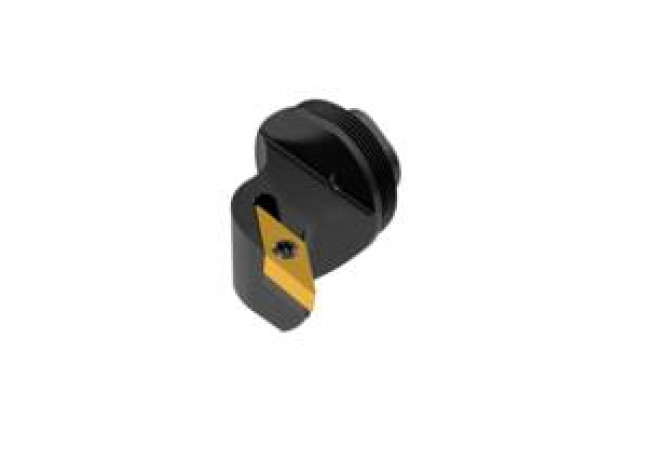

GL32-SVUNL-22032-13

GL32-SVUNL-22032-13 GL32-SVUNL-22032-13 GL32-SVUNL-22032-13 GL32-SVUNL-22032-13

GL32-SVUNL-22032-13

Seco
Артикул: 02974996
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL03200115
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
35 Degree
FamilyProducts
GL32-SVUNL-22032-13
GAMF Rake angle radial
-11.75 Degree
GAMO Rake angle orthogonal
-5 Degree
GAMP Rake angle axial
-5.7 Degree
HAND Cutting direction
L - Left
HF Functional height
0.05 mm
ID Technical product number
02974996
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0320$$$$
ISO CSW1
ISO$VN1304**2LB****
ISYC Subclass
309-07 - System tool for external turning

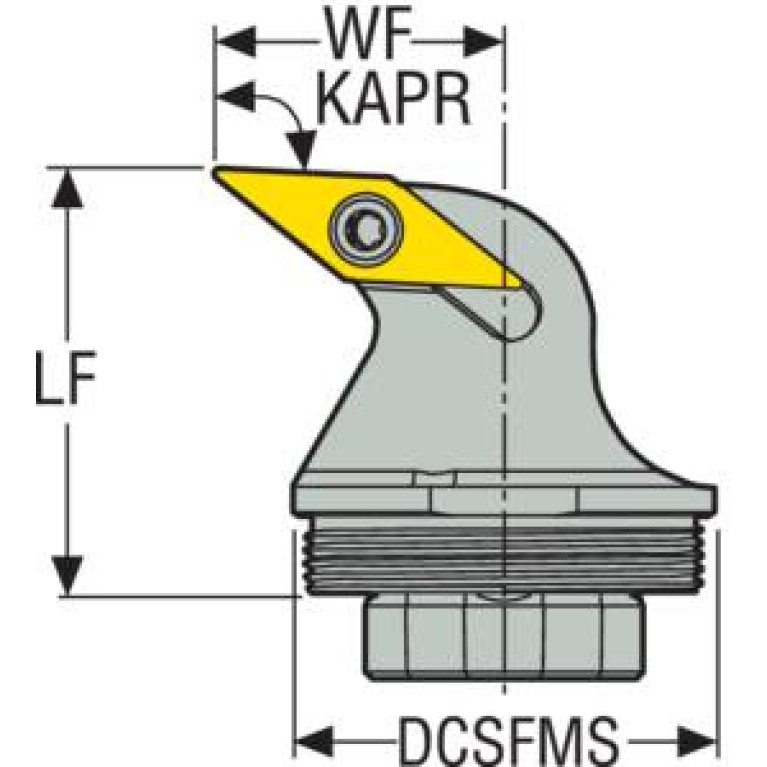

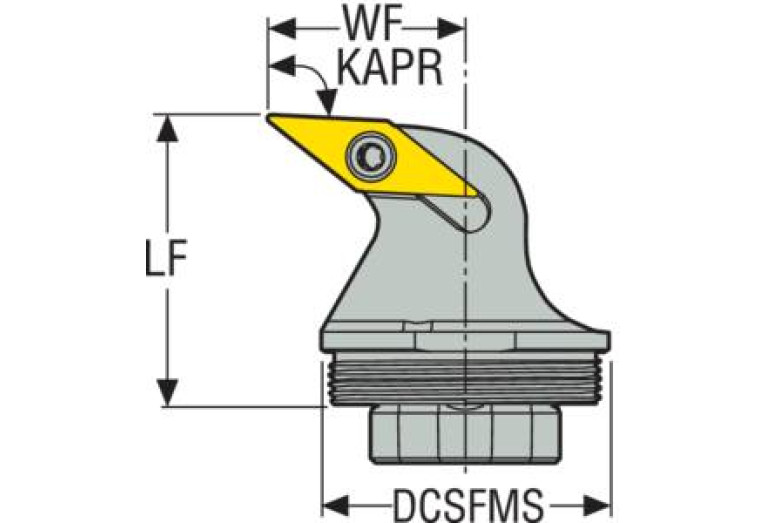

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-12 Degree

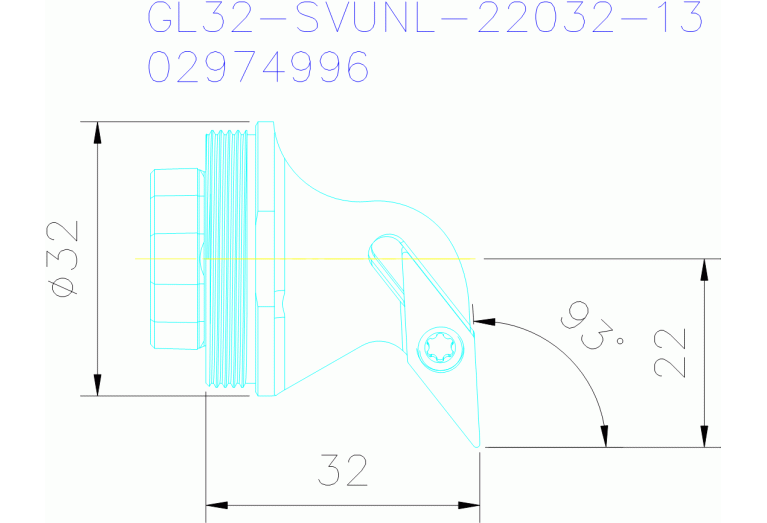

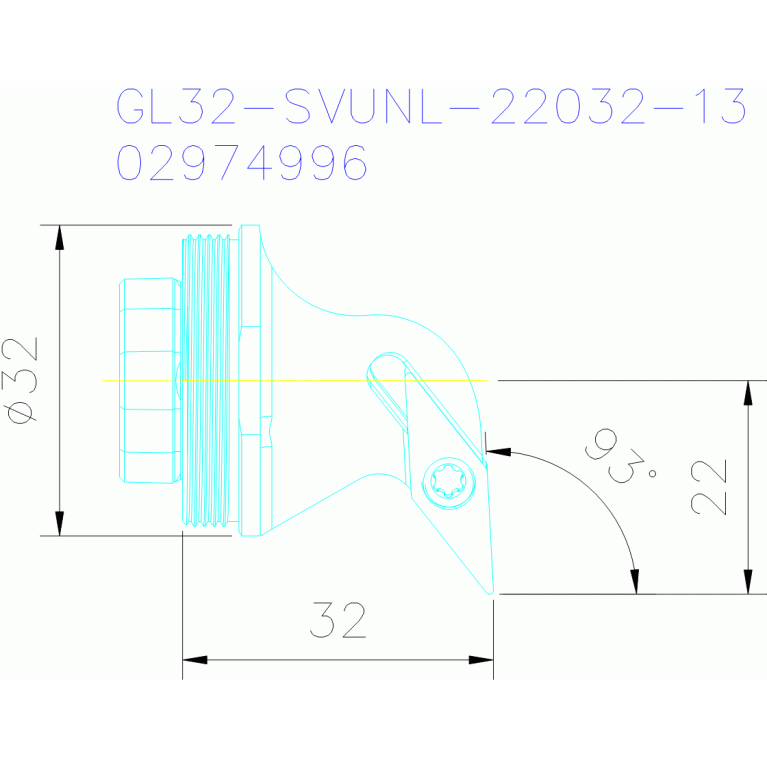

LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 ISO
SGL01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL03200115
LTA Length tool assembly
32 mm
MIID Master insert identification
VN1304
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
GL32-SVUNL-22032-13
STDDES Standard designation
GL32-SVUNL-22032-13
WF Functional width
21.88 mm
Working process
No working processes available
WT Weight of item
0.28 kg
