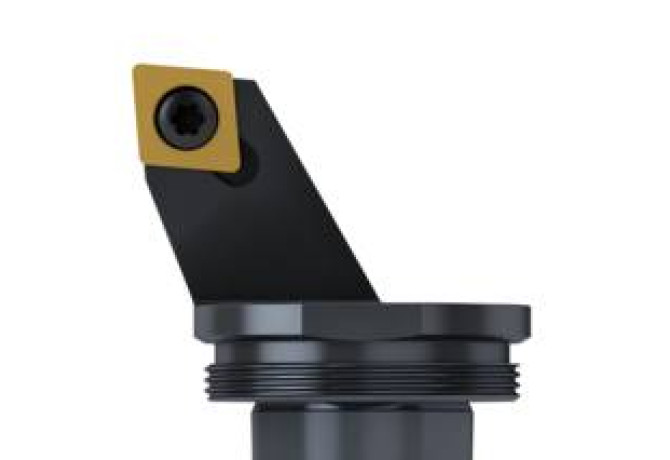

GL32-SCLCL-22032-09

GL32-SCLCL-22032-09 GL32-SCLCL-22032-09 GL32-SCLCL-22032-09 GL32-SCLCL-22032-09

GL32-SCLCL-22032-09

Seco
Артикул: 02809491
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL03200115
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
80 Degree
FamilyProducts
GL32-SCLCL-22032-09
GAMF Rake angle radial
-2 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
-0.17 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
02809491
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0320$$$$
ISO CSW1
ISO$CC09T3**3LB****
ISYC Subclass
309-07 - System tool for external turning

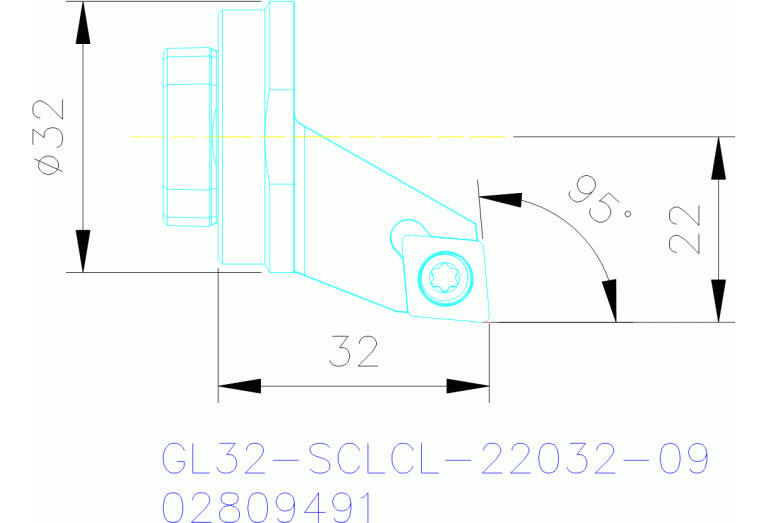

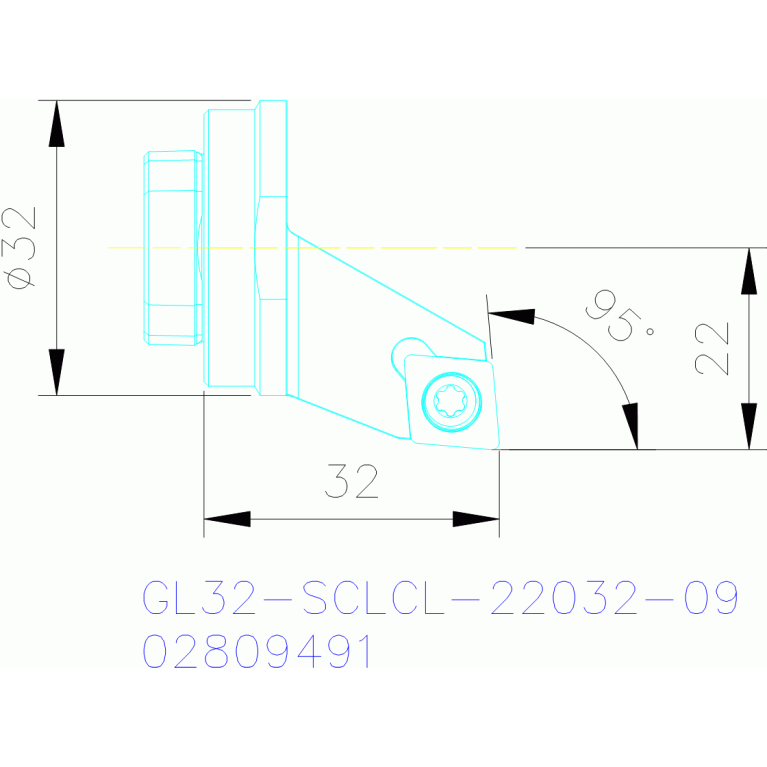

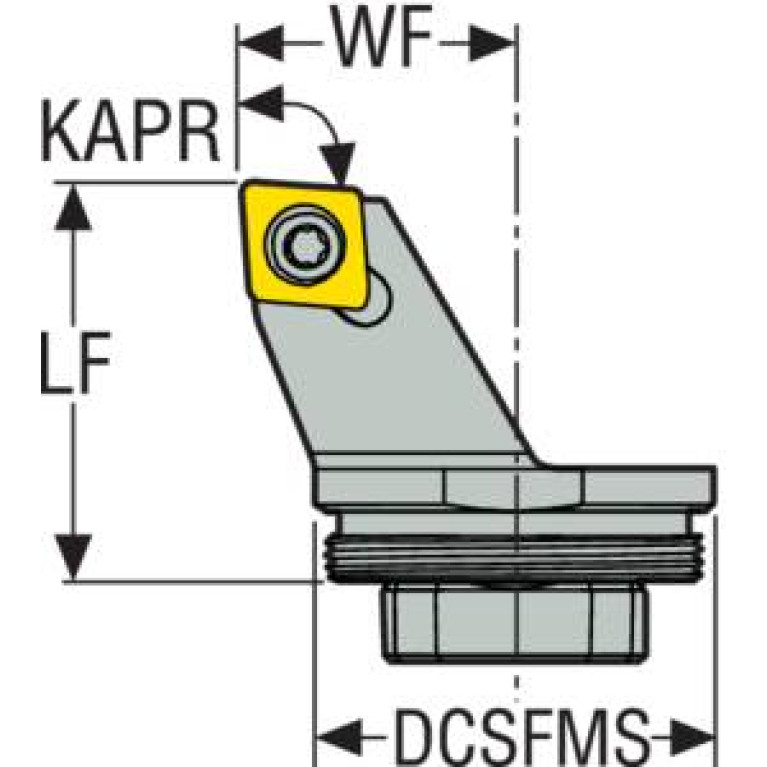

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-2 Degree
LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 ISO
SGL01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL03200115
LTA Length tool assembly
32 mm
MIID Master insert identification
CCGT09T302
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
GL32-SCLCL-22032-09
STDDES Standard designation
GL32-SCLCL-22032-09
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
0.09 kg
