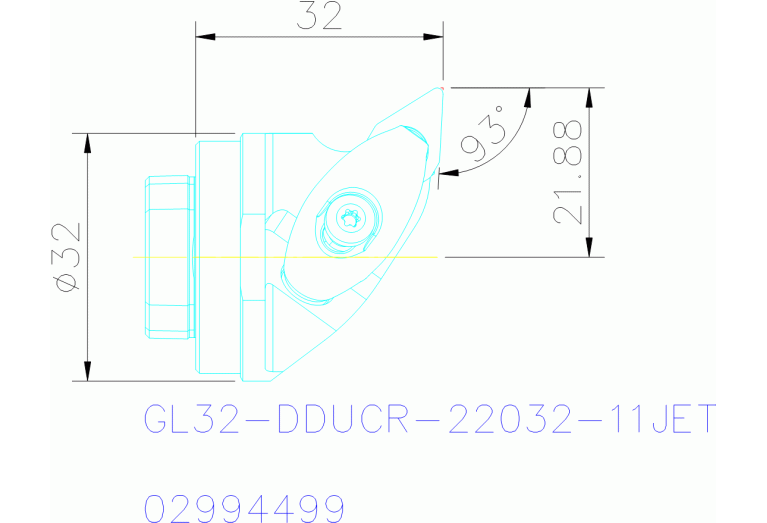

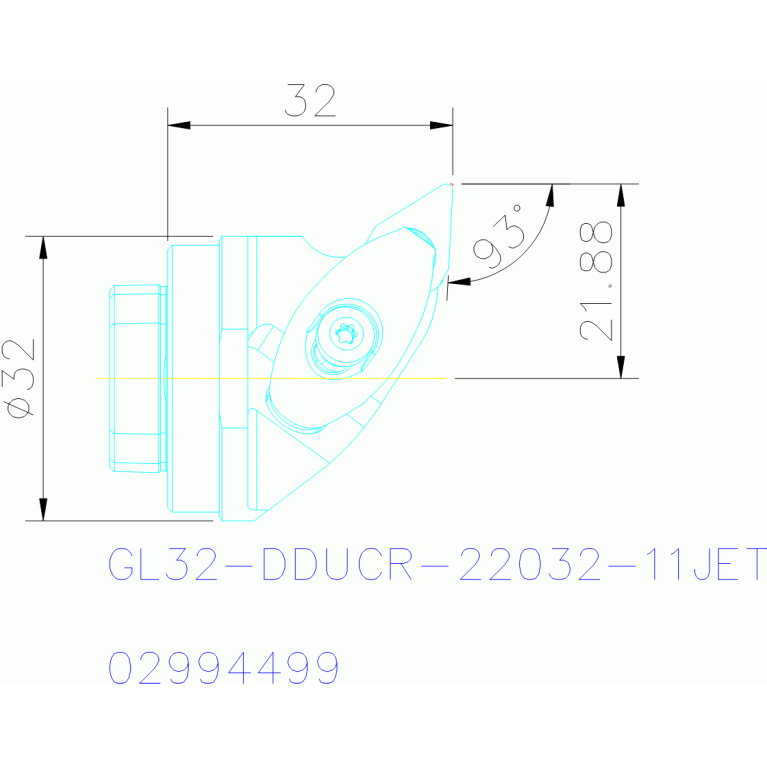

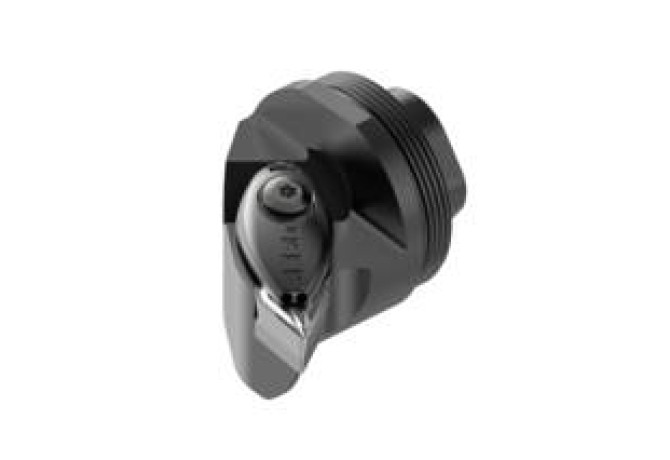

GL32-DDUCR-22032-11JET

GL32-DDUCR-22032-11JET GL32-DDUCR-22032-11JET GL32-DDUCR-22032-11JET GL32-DDUCR-22032-11JET

GL32-DDUCR-22032-11JET

Seco
Артикул: 02994499
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL03200115

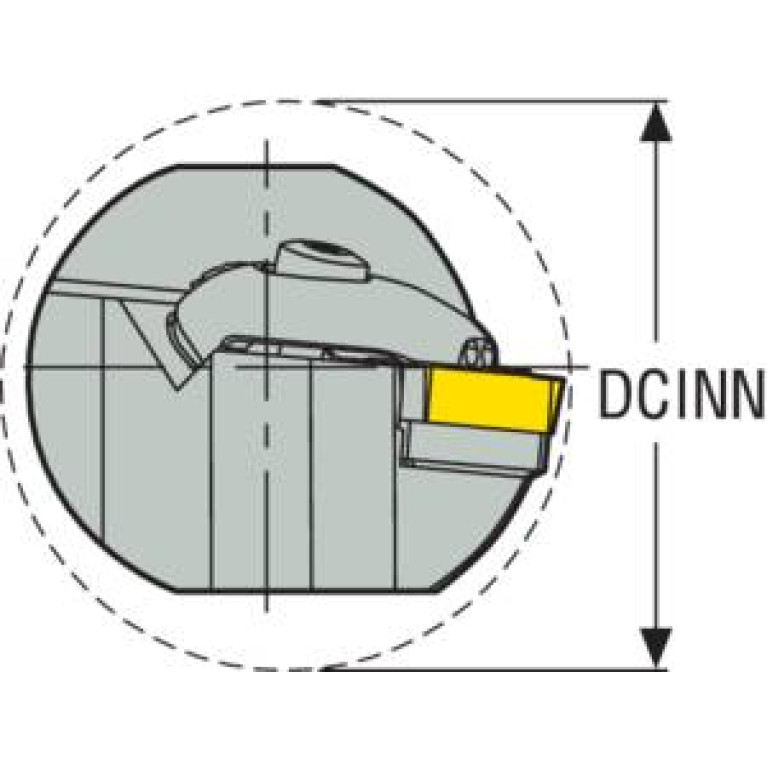

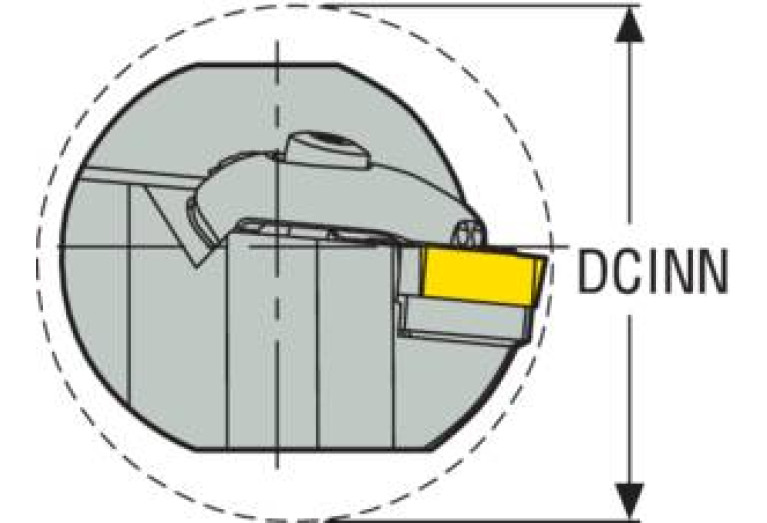

DMIN Minimum bore diameter
40 mm
FamilyProducts
GL32-DDUCR-22032-11JET
GAMF Rake angle radial
-4.99 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
-0.26 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
02994499
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0320$$$$
ISO CSW1
ISO$DC11T3**3RB****
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-5 Degree
LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 ISO
SGL01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL03200115
LTA Length tool assembly
32 mm
MIID Master insert identification
DCGT11T301-F1
MTP Clamping type code
D
Name Identifying order number
GL32-DDUCR-22032-11JET
STDDES Standard designation
GL32-DDUCR-22032-11J
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
0.114 kg
