Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning GL32-CRSNL-22032-09

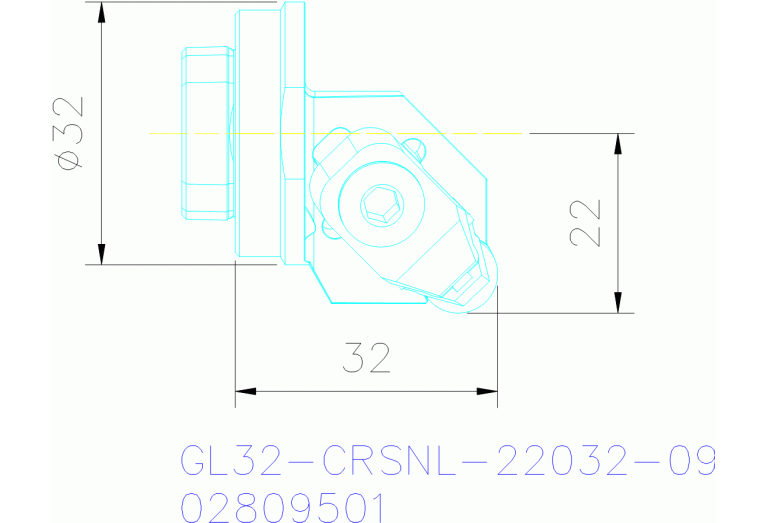

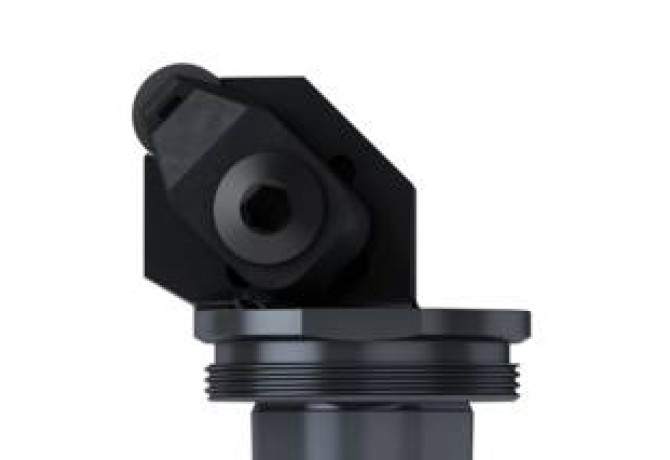

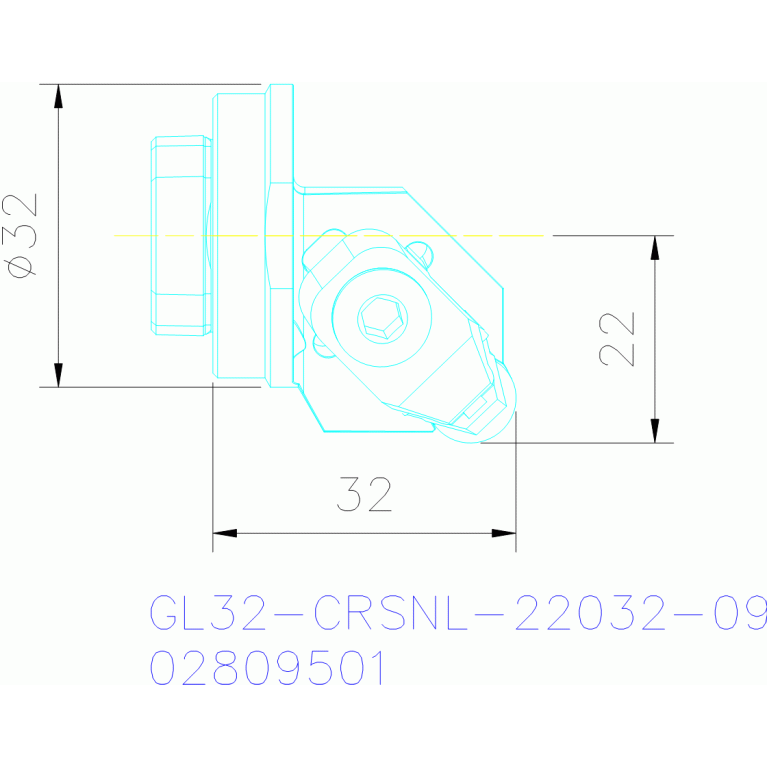

GL32-CRSNL-22032-09

GL32-CRSNL-22032-09 GL32-CRSNL-22032-09 GL32-CRSNL-22032-09 GL32-CRSNL-22032-09

GL32-CRSNL-22032-09

Seco
Артикул: 02809501
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.18 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GRL03200115
DMIN Minimum bore diameter
40 mm
FamilyProducts
GL32-CRSNL-22032-09
GAMF Rake angle radial
-12 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
02809501
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0320$$$$
ISO CSW1
ISO$RN0903**1LB****
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
-12 Degree
LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 ISO
SGL01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL03200115
LPR Protruding length
32 mm
LTA Length tool assembly
32 mm
MIID Master insert identification
RNGN090300E25
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
GL32-CRSNL-22032-09
STDDES Standard designation
GL32-CRSNL-22032-09

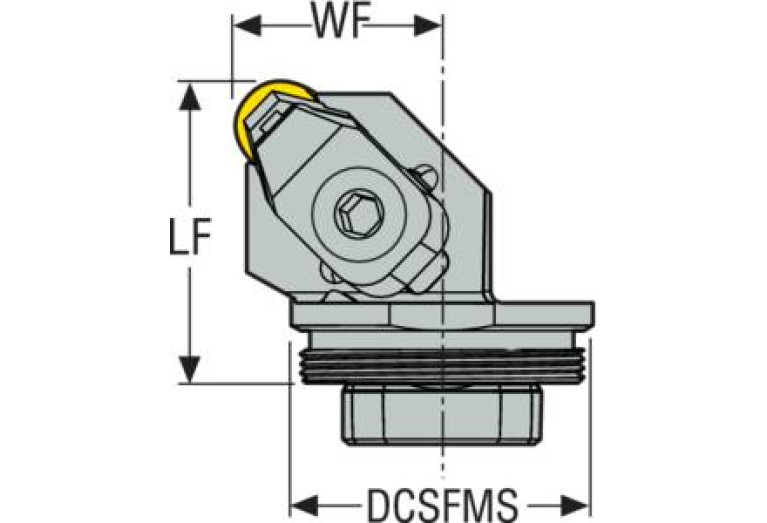

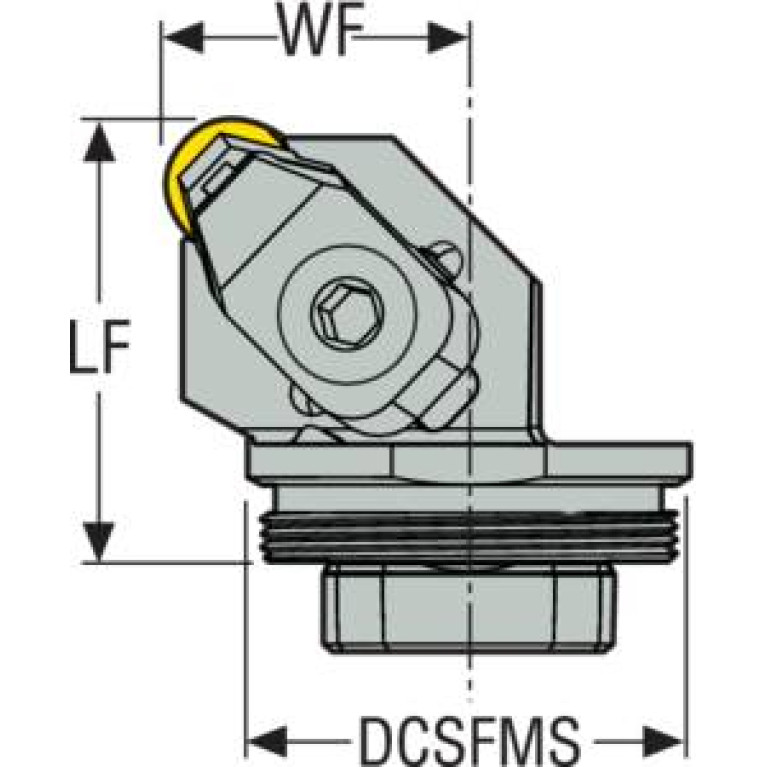

WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
0.135 kg
