Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning C6-DSSNR-45054-15-M

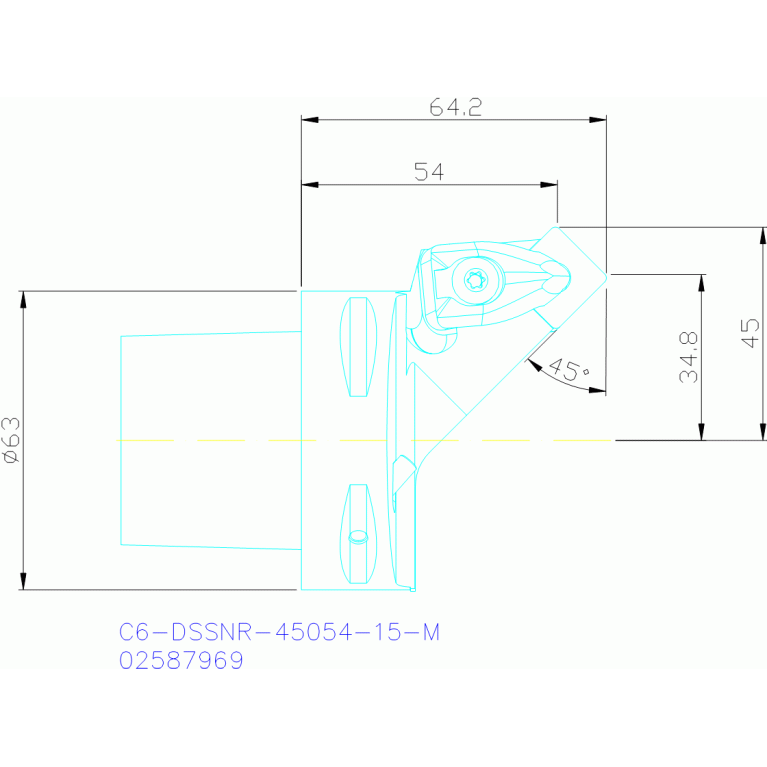

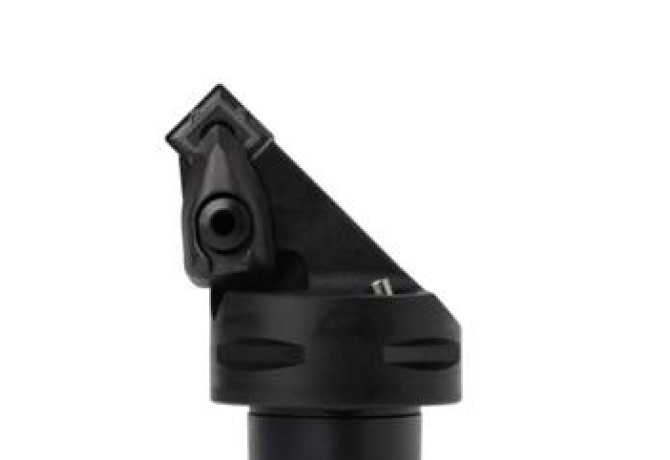

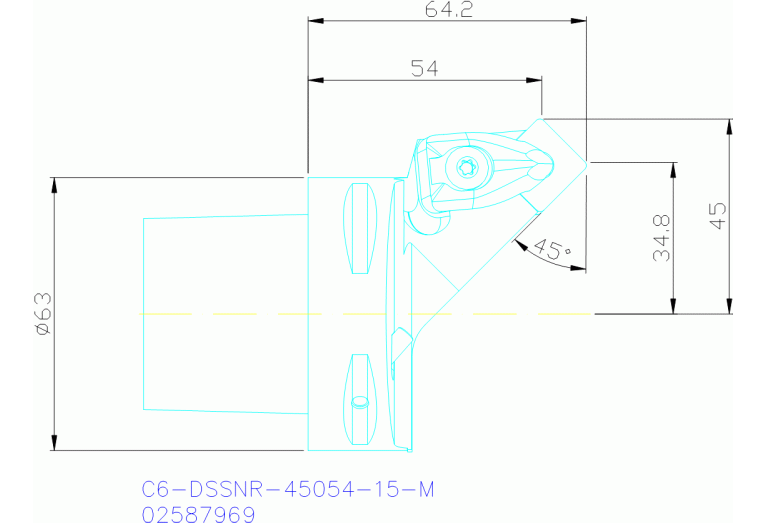

C6-DSSNR-45054-15-M

C6-DSSNR-45054-15-M C6-DSSNR-45054-15-M C6-DSSNR-45054-15-M C6-DSSNR-45054-15-M

C6-DSSNR-45054-15-M

Seco
Артикул: 02587969
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
15.875 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
6.35 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300185
DMIN Minimum bore diameter
125 mm
EPSR Insert included angle
90 Degree
FamilyProducts
C6-DSSNR-45054-15-M
GAMO Rake angle orthogonal
-8 Degree
HAND Cutting direction
R - Right
ID Technical product number
02587969
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0630$$$$
ISO CSW1
ISO$SN1506**2RB****
ISYC Subclass
309-07 - System tool for external turning

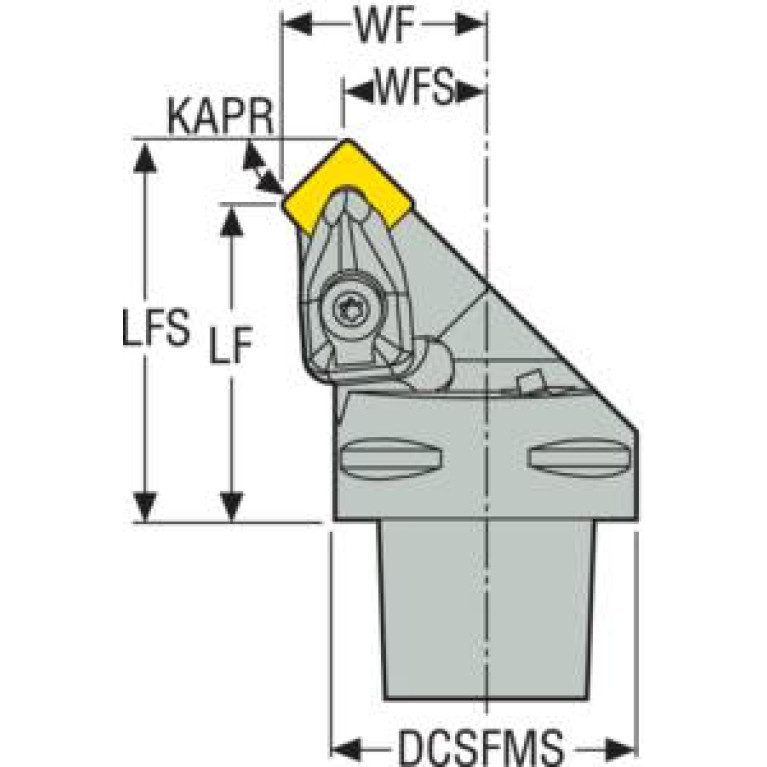

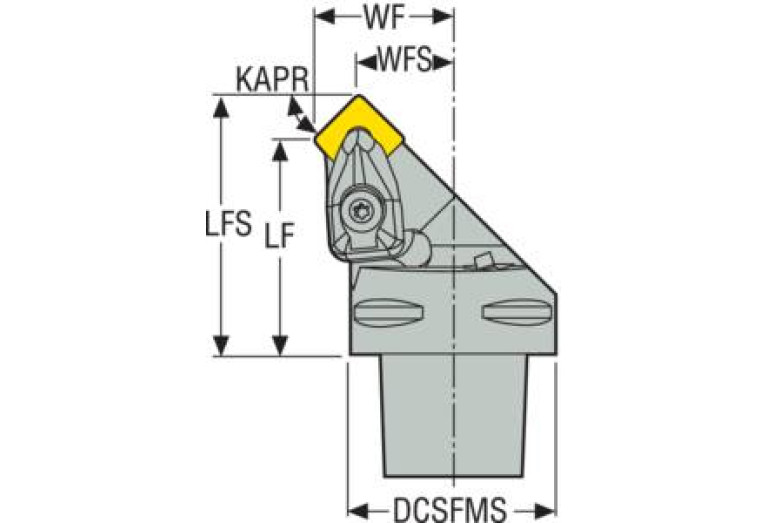

KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree
LF Functional length
54 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300185
LTA Length tool assembly
54 mm
MIID Master insert identification
SNMG150608-M5
MTP Clamping type code
D
Name Identifying order number
C6-DSSNR-45054-15-M
STDDES Standard designation
C6-DSSNR-45054-15-M
WF Functional width
45 mm
Working process
No working processes available
WT Weight of item
1.1 kg
