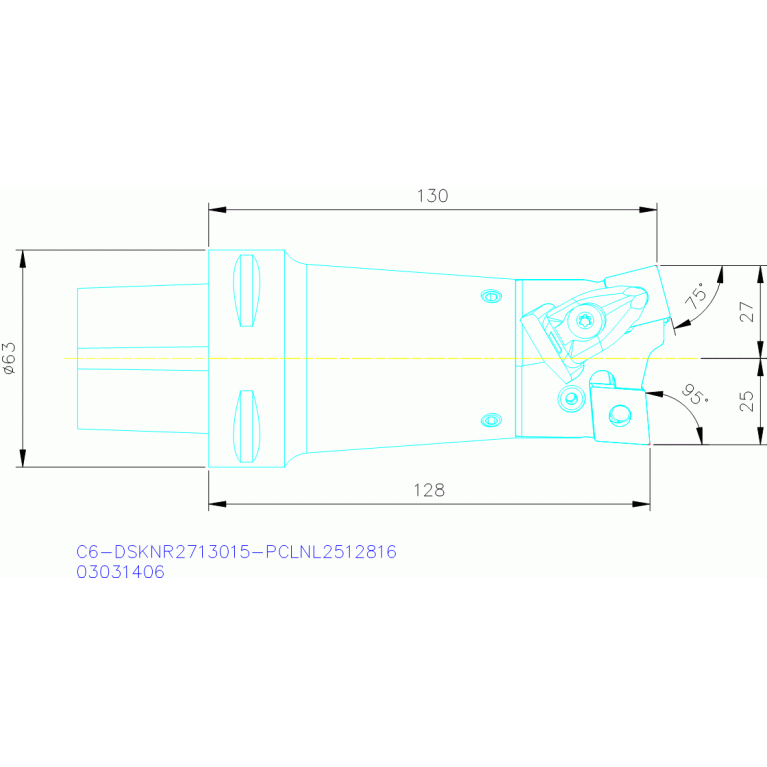

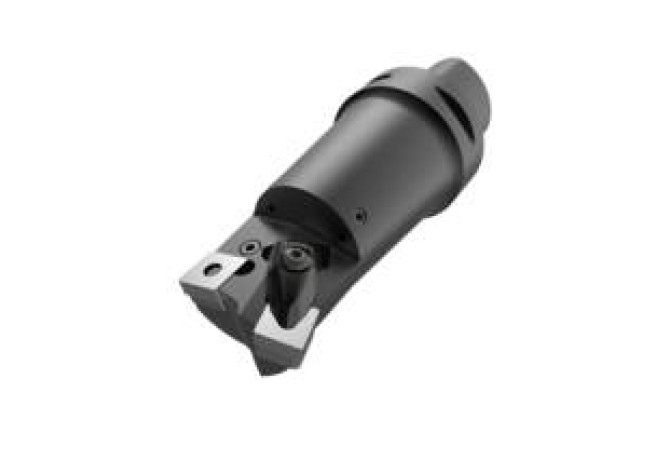

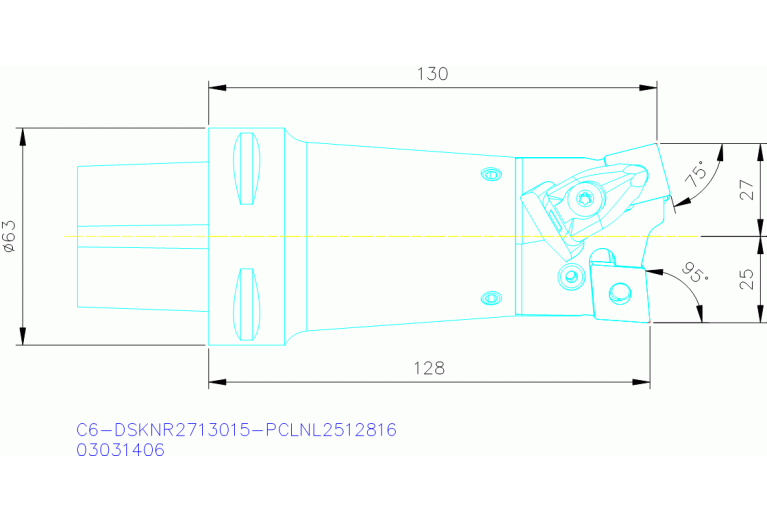

C6-DSKNR2713015-PCLNL2512816

C6-DSKNR2713015-PCLNL2512816 C6-DSKNR2713015-PCLNL2512816 C6-DSKNR2713015-PCLNL2512816 C6-DSKNR2713015-PCLNL2512816

C6-DSKNR2713015-PCLNL2512816

Seco
Артикул: 03031406
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300195
DIN CSW1
SO-CN2-1606N
FamilyProducts
C6-DSKNR2713015-PCLNL2512816
GAMF Rake angle radial
-11 Degree
GAMO Rake angle orthogonal
-5 Degree
GAMP Rake angle axial
-2.2 Degree
HAND Cutting direction
R - Right
ID Technical product number
03031406
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-07 - System tool for external turning

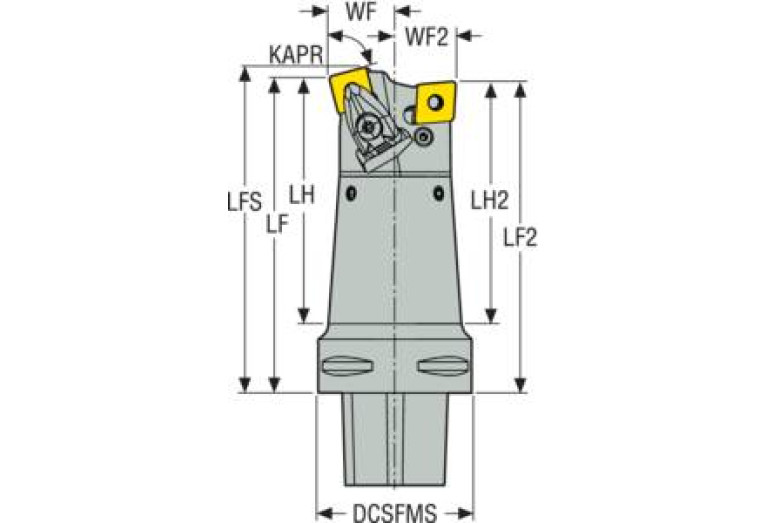

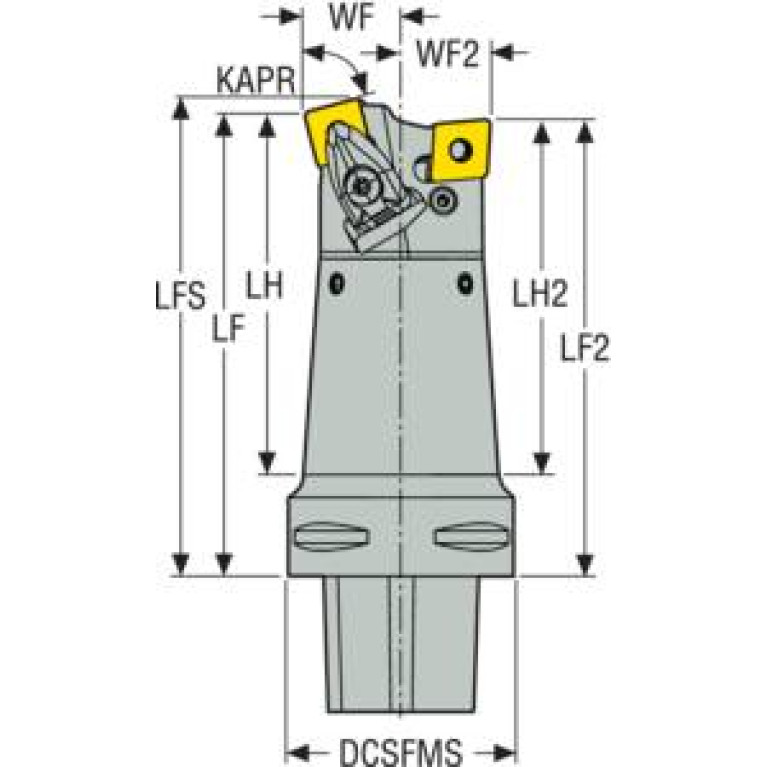

KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
130 mm
LH Head length
101.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LTA Length tool assembly
130 mm
MIID Master insert identification
CN2-1606N
MTP Clamping type code
D
Name Identifying order number
C6-DSKNR2713015-PCLNL2512816
NameAnsi Identifying order number inch alternative
C6-DSKN2713015-PCLN2712816
STDDES Standard designation
C6-DSKNR2713015-PCLN
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.8 kg
