Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning C5-PSSNR-35052-12JET

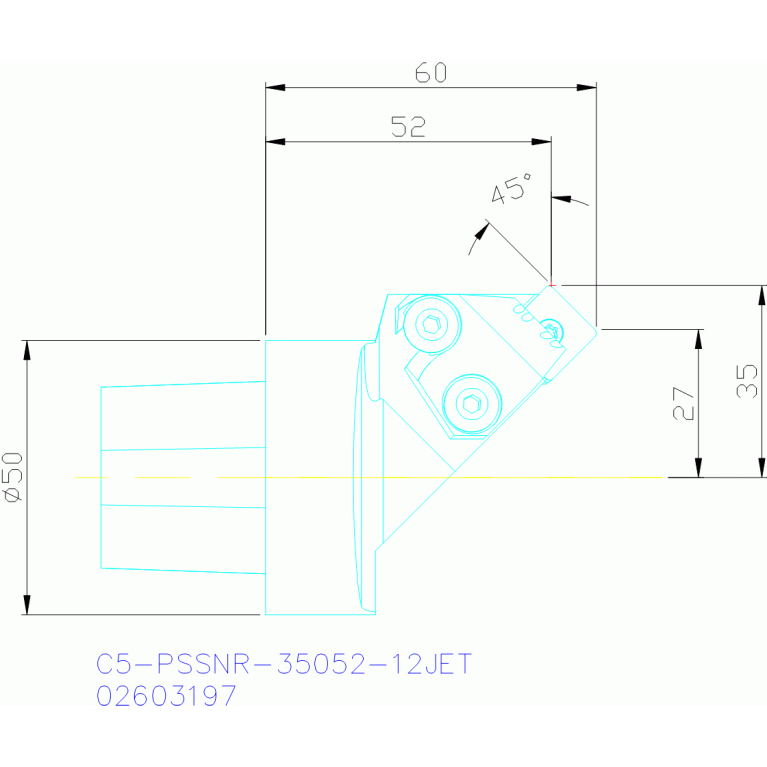

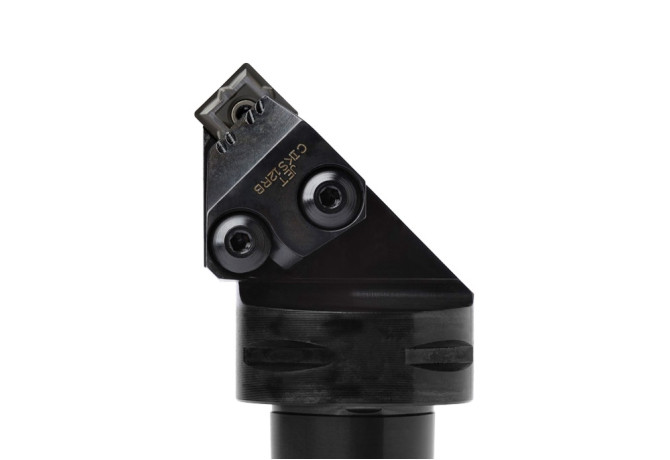

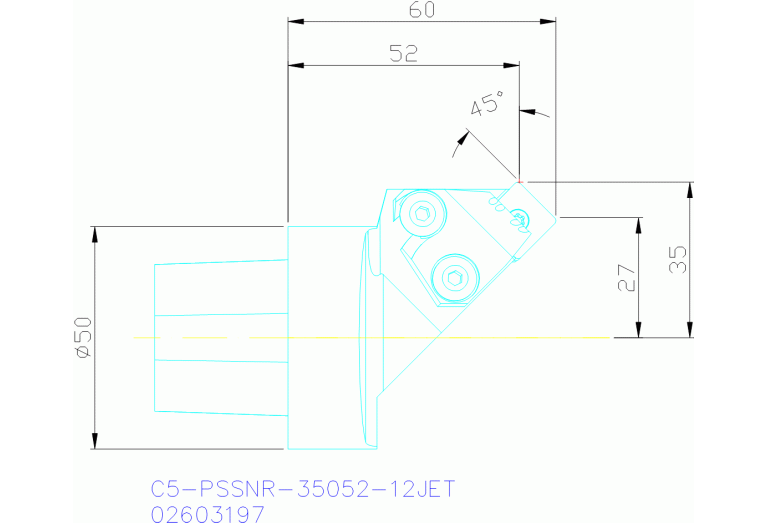

C5-PSSNR-35052-12JET

C5-PSSNR-35052-12JET C5-PSSNR-35052-12JET C5-PSSNR-35052-12JET C5-PSSNR-35052-12JET

C5-PSSNR-35052-12JET

Seco
Артикул: 02603197
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
CCS05000185
DIN CSW1
SO-SN2-1204N

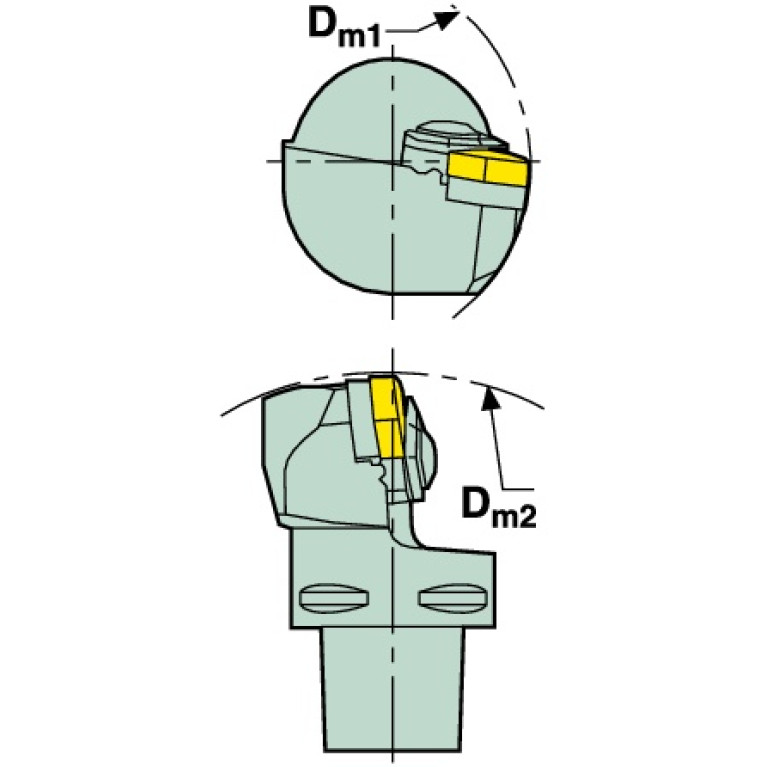

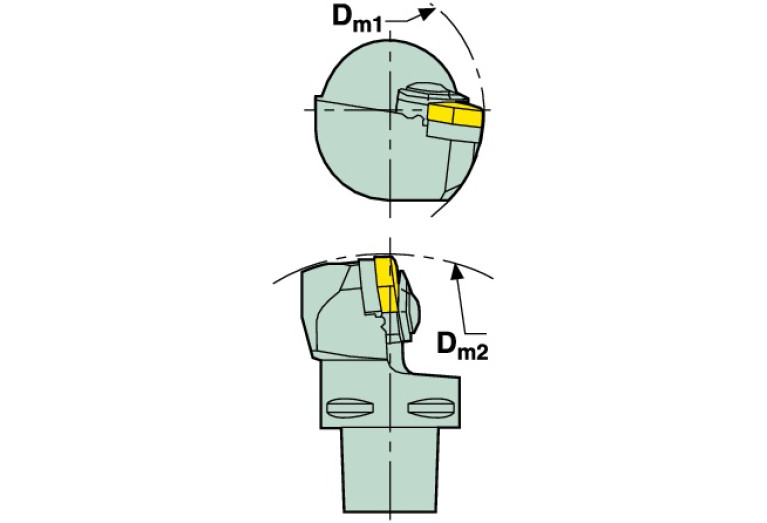

DMIN Minimum bore diameter
95 mm
EPSR Insert included angle
90 Degree
FamilyProducts
C5-PSSNR-35052-12JET
GAMO Rake angle orthogonal
-8 Degree
HAND Cutting direction
R - Right
ID Technical product number
02603197
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree
LF Functional length
52 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LTA Length tool assembly
52 mm
MIID Master insert identification
SNMG120404-M3
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C5-PSSNR-35052-12JET
STDDES Standard designation
C5-PSSNR-35052-12JET
THSC Tool holder shape code
A - offset shank design
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.7 kg
