Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning C4-PSSNR-27048-12JET

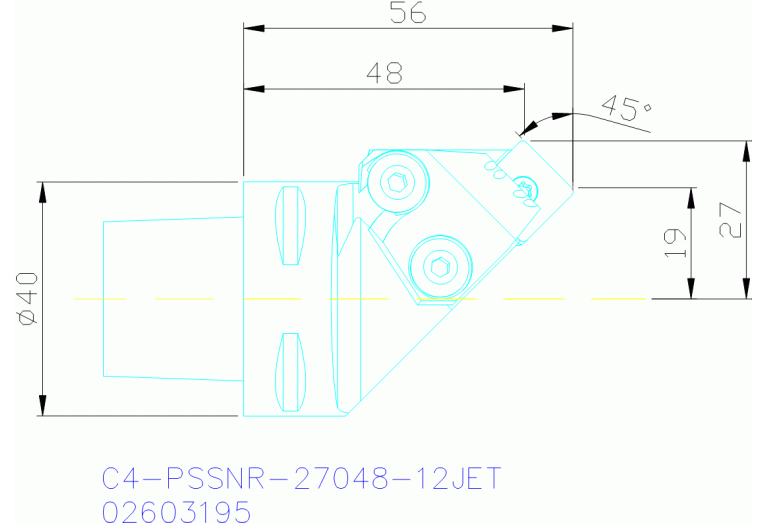

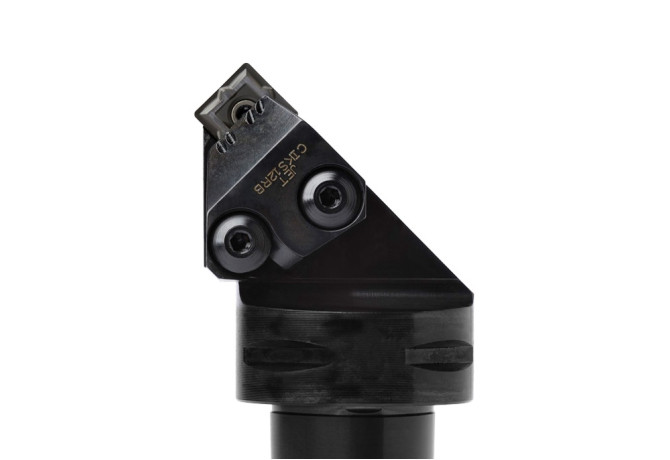

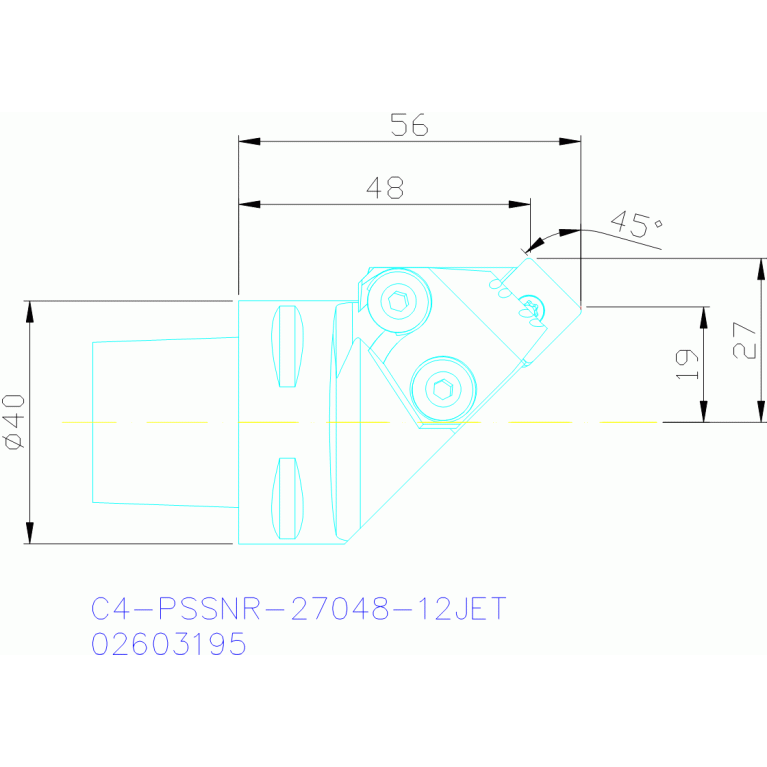

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

C4-PSSNR-27048-12JET

Seco

Артикул: 02603195

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

COMPC Company code

SO - SECO Tools

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

CCS04000185

DIN CSW1

SO-SN2-1204N

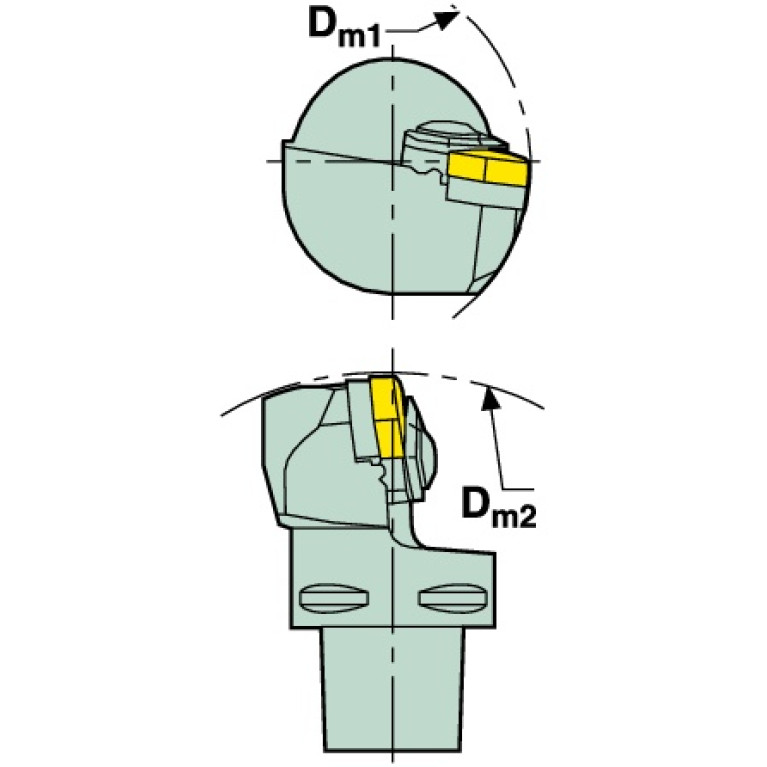

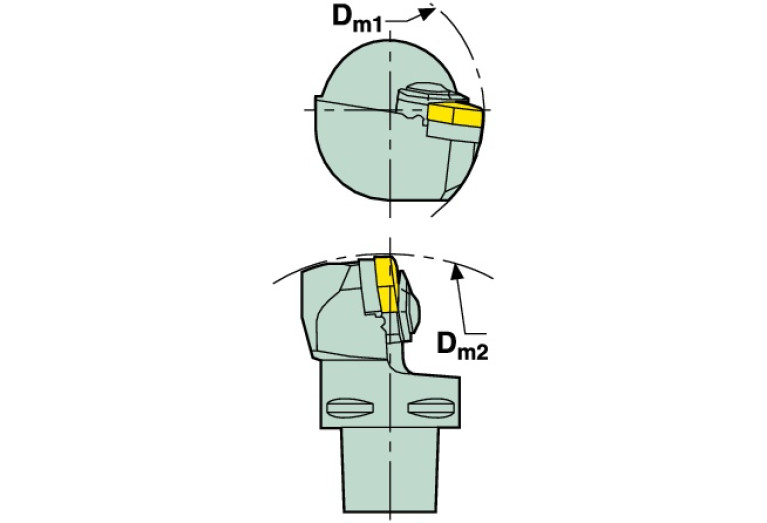

DMIN Minimum bore diameter

75 mm

EPSR Insert included angle

90 Degree

FamilyProducts

C4-PSSNR-27048-12JET

GAMO Rake angle orthogonal

-8 Degree

HAND Cutting direction

R - Right

ID Technical product number

02603195

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

45 Degree

LAMS Inclination angle

0 Degree

LF Functional length

48 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000185

LTA Length tool assembly

48 mm

MIID Master insert identification

SNMG120404-M3

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

C4-PSSNR-27048-12JET

STDDES Standard designation

C4-PSSNR-27048-12JET

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

0.5 kg
