Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning C4-DSSNL-27045-15-M

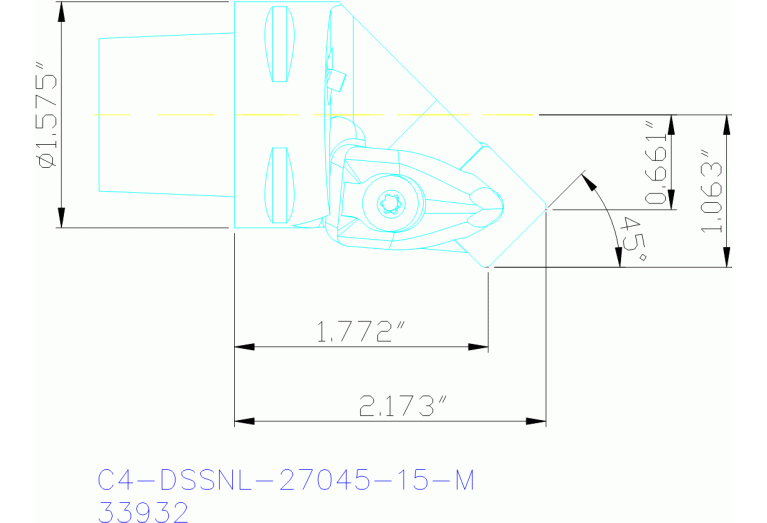

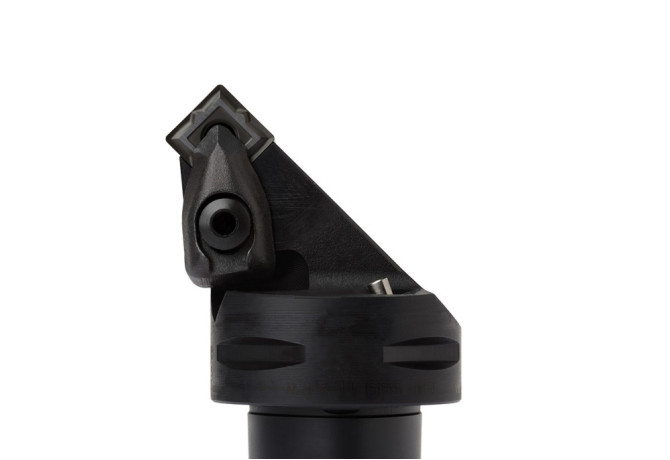

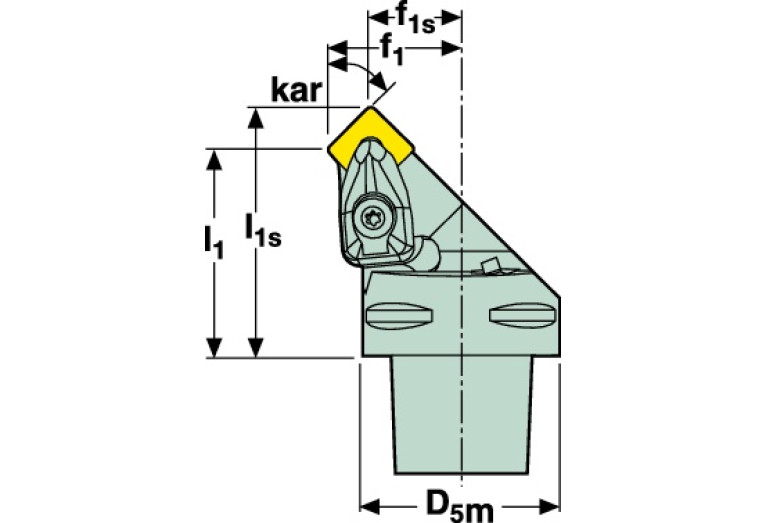

C4-DSSNL-27045-15-M

C4-DSSNL-27045-15-M C4-DSSNL-27045-15-M C4-DSSNL-27045-15-M C4-DSSNL-27045-15-M

C4-DSSNL-27045-15-M

Seco
Артикул: 02587958
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
15.875 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
6.35 mm
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
CCS04000185
DIN CSW1
SO-SN2-1506N
DMIN Minimum bore diameter
125 mm
EPSR Insert included angle
90 Degree
FamilyProducts
C4-DSSNL-27045-15-M
GAMO Rake angle orthogonal
-8 Degree
HAND Cutting direction
L - Left
ID Technical product number
02587958
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree
LF Functional length
45 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LTA Length tool assembly
45 mm
MIID Master insert identification
SNMG150608-M5
MTP Clamping type code
D
Name Identifying order number
C4-DSSNL-27045-15-M
STDDES Standard designation
C4-DSSNL-27045-15-M
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.5 kg
