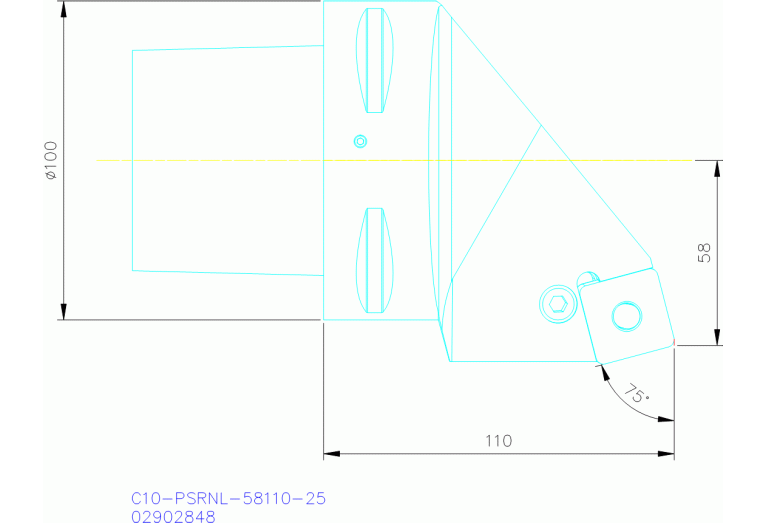

C10-PSRNL-58110-25

C10-PSRNL-58110-25 C10-PSRNL-58110-25 C10-PSRNL-58110-25 C10-PSRNL-58110-25

C10-PSRNL-58110-25

Seco
Артикул: 02902848
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS01000185
DMIN Minimum bore diameter
320 mm
EPSR Insert included angle
90 Degree
FamilyProducts
C10-PSRNL-58110-25
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02902848
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C1000$$$$
ISO CSW1
ISO$SN2507**2LB****
ISYC Subclass
309-07 - System tool for external turning

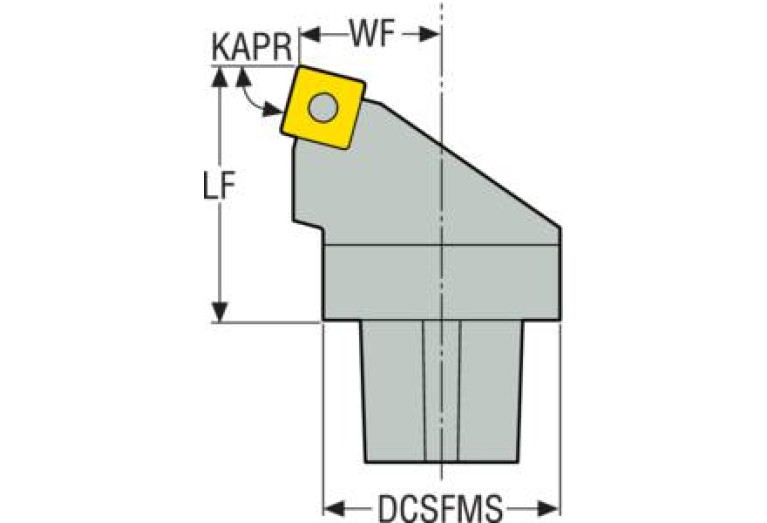

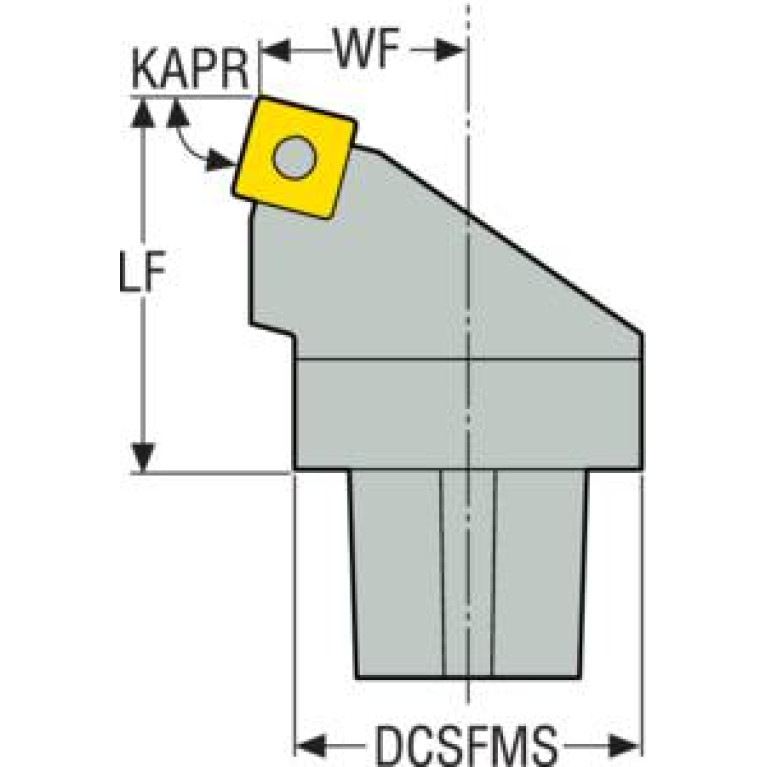

KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
110 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0100
LOC-03 ISO
CCS01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS01000185
LTA Length tool assembly
110 mm
MIID Master insert identification
SN2507
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C10-PSRNL-58110-25
STDDES Standard designation
C10-PSRNL-58110-25
WF Functional width
58 mm
Working process
No working processes available
WT Weight of item
5.12 kg
