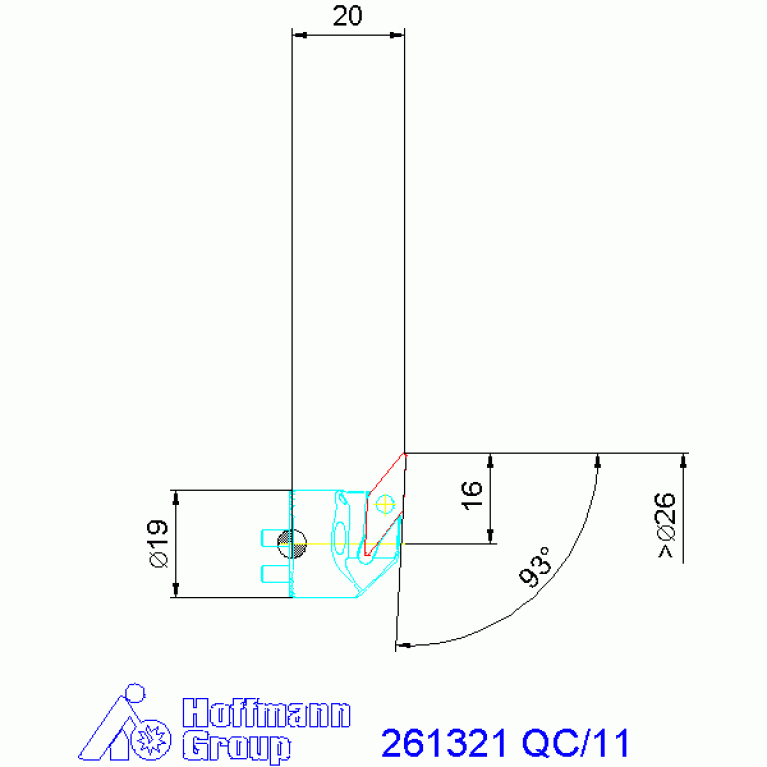

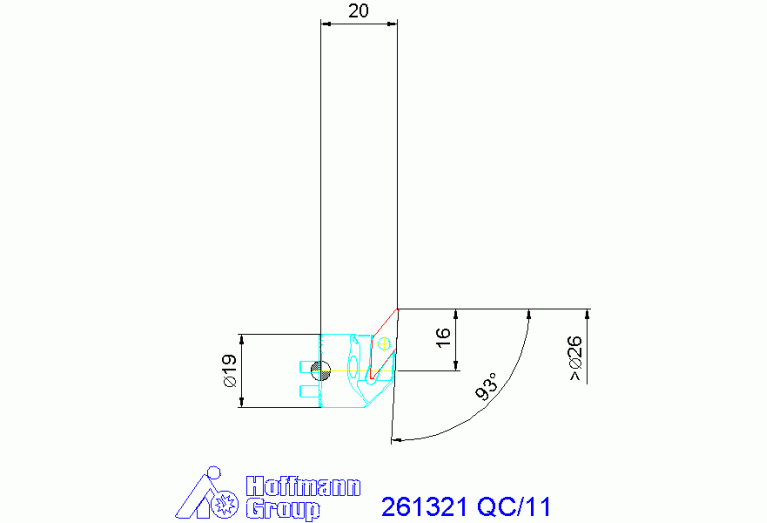

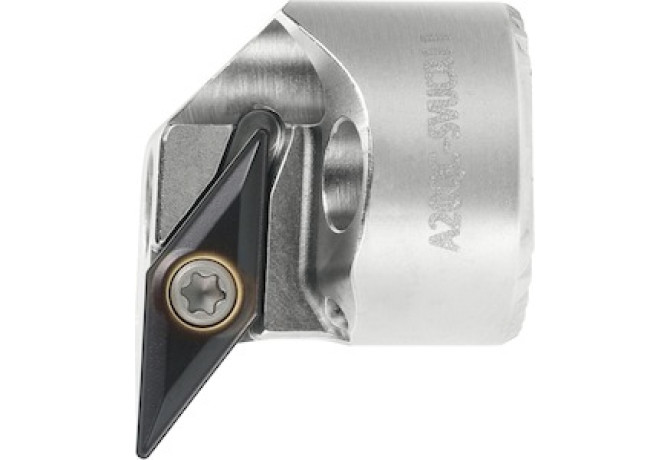

Главная Каталог продукции Toolunited 17 309-07 - System tool for external turning 261321 QC/11

261321 QC/11

261321 QC/11 261321 QC/11 261321 QC/11

261321 QC/11

Hoffmann Group
Артикул: 261321 QC/11
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HOG-QC0200xx17
DIN CSW1
VC1103043N
DMIN Minimum bore diameter
26 mm
EPSR Insert included angle
35 Degree
FamilyProducts
Cutting head
HAND Cutting direction
R - Right
HF Functional height
10 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
6.35 mm
LAMS Inclination angle
0 Degree
LF Functional length
20 mm
LFA A dimension on lf
0 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HOG-QC0200xx17
LPR Protruding length
19.95 mm
LTA Length tool assembly
20 mm
MIID Master insert identification
VCMT110304
Name Identifying order number
261321 QC/11
OAL Overall length
20 mm
STDDES Standard designation
SVUCR-11
THSC Tool holder shape code
A - offset shank design
WF Functional width
16.05 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
0.05 kg
