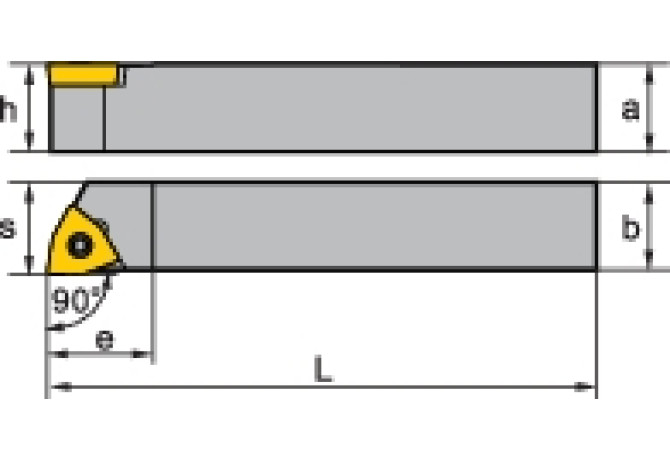

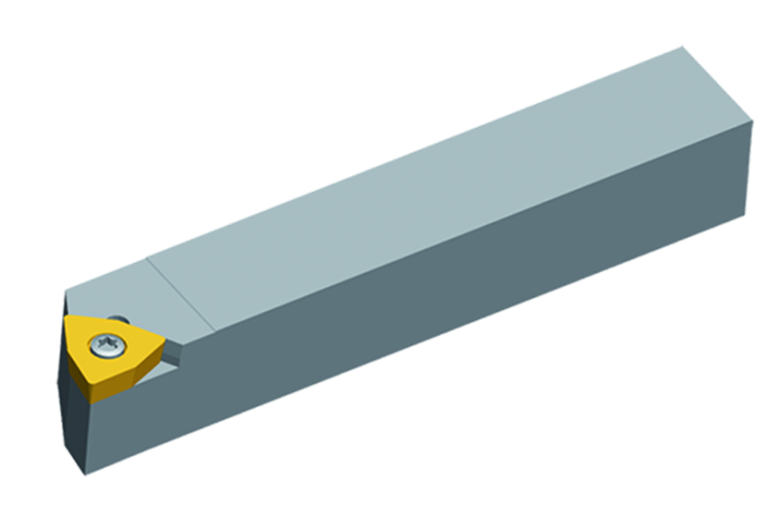

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SWACL1010E04

SWACL1010E04

SWACL1010E04

Артикул: SWACL1010E04

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.5 kg

DIN

VKT10100105

DIN CSW1

WC0402083N

EPSR Insert included angle

80 Degree

FamilyProducts

WC** holder (external)

HAND Cutting direction

L - Left

HF Functional height

10 mm

ID Identifying order number

SWACL1010E04

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

4.3 mm

LF Functional length

70 mm

LH Head length

10 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

MIID Master insert identification

WCMX040208R

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

70 mm

STDDES Standard designation

SWACL1010E04

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

10.5 mm

Working process

DDA - External turning
