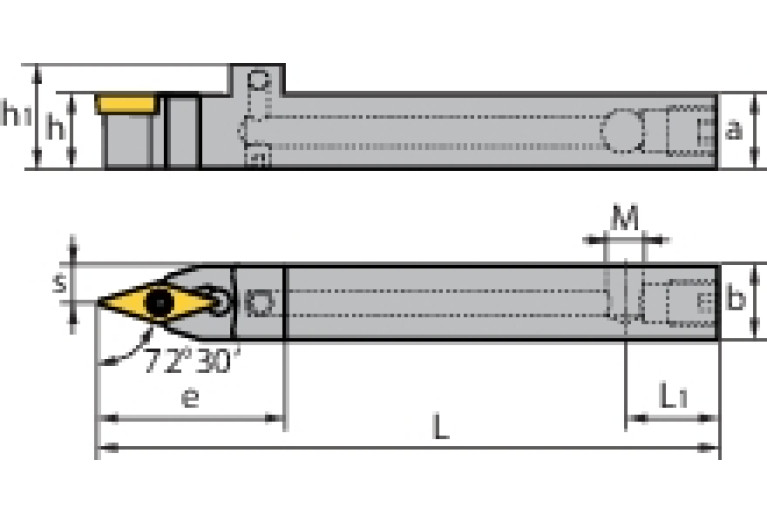

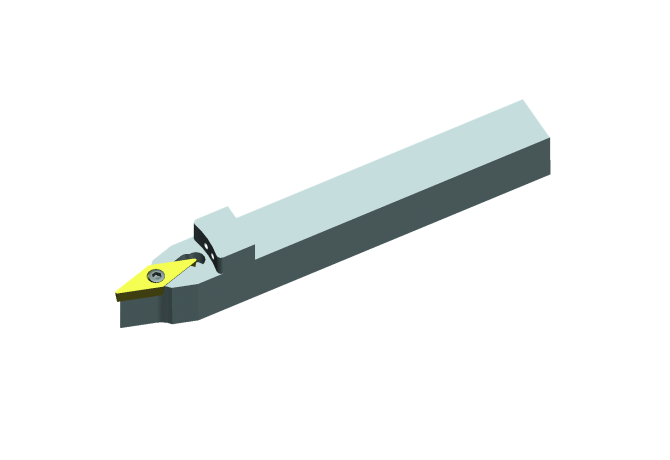

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SVVCN1212H11-SC

SVVCN1212H11-SC

Артикул: SVVCN1212H11-SC

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DIN

VKT12120115

DIN CSW1

VC1103083N

EPSR Insert included angle

35 Degree

FamilyProducts

VC** holder

HAND Cutting direction

N - Neutral

HF Functional height

12 mm

ID Identifying order number

SVVCN1212H11-SC

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

72.5 Degree

L Cutting edge length

11 mm

LF Functional length

100 mm

LH Head length

30 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120115

MIID Master insert identification

VCGX110301

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

100 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

6 mm

Working process

No working processes available

WT Weight of item

0.09 kg
