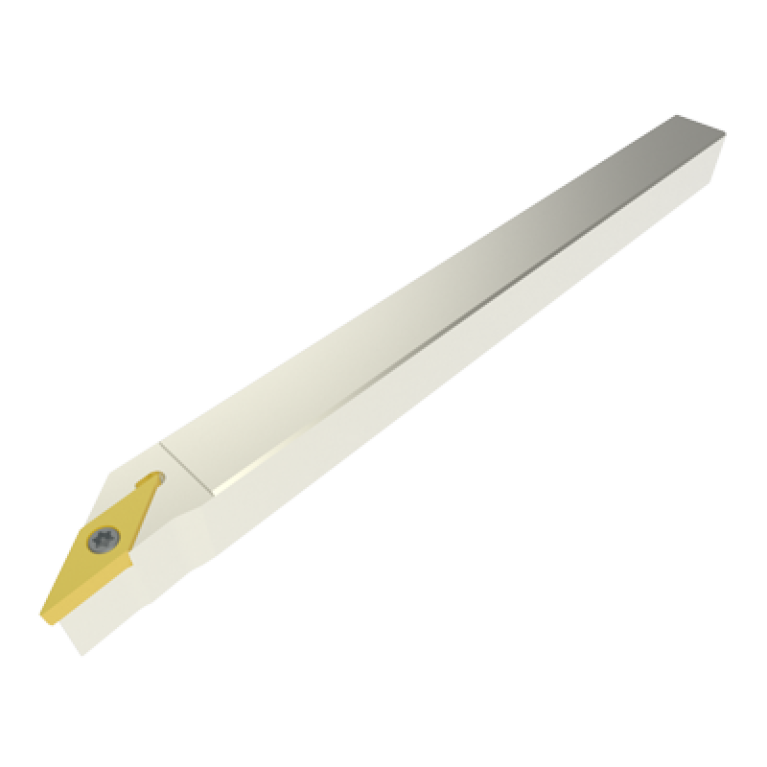

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SVJCR1010JX13-SM

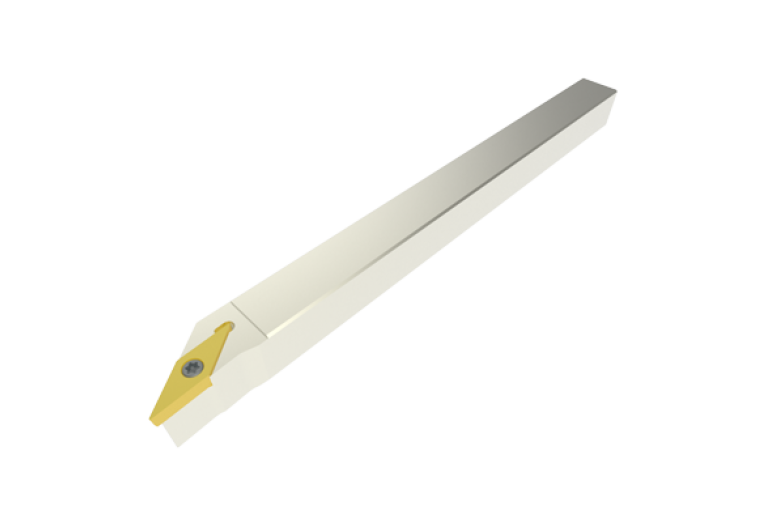

SVJCR1010JX13-SM

SVJCR1010JX13-SM

SVJCR1010JX13-SM

SVJCR1010JX13-SM

SVJCR1010JX13-SM

SVJCR1010JX13-SM

Mitsubishi Materials

Артикул: 10578421

В наличии

В корзину

Описание

Характеристики

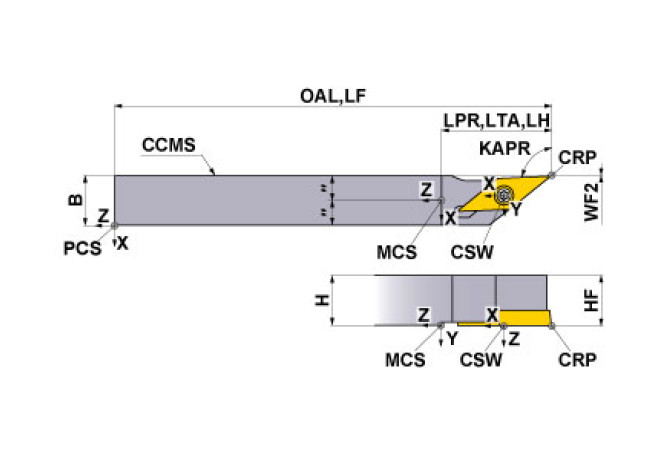

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

7.94 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.38 mm

Delivery state valid from

4/1/2022

DIN

VKT10100105

DIN CSW1

MI-VC1303 3N

FamilyProducts

external turning tools,small tools

HAND Cutting direction

R - Right

HF Functional height

10 mm

ID Technical product number

10578421

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

120 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

MIID Master insert identification

VC 1303

Name Identifying order number

SVJCR1010JX13-SM

OAL Overall length

120 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
