Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SVJBR102

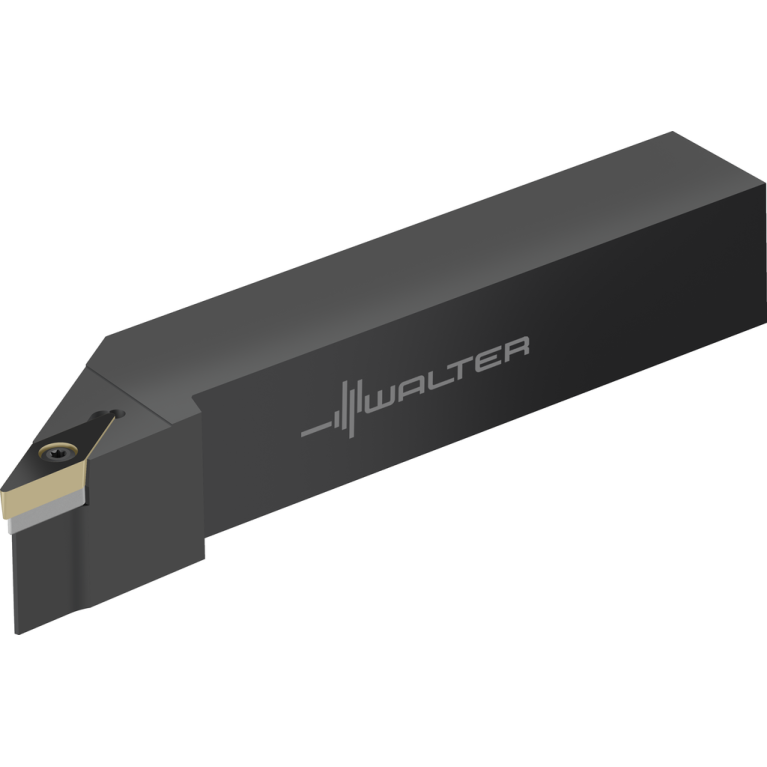

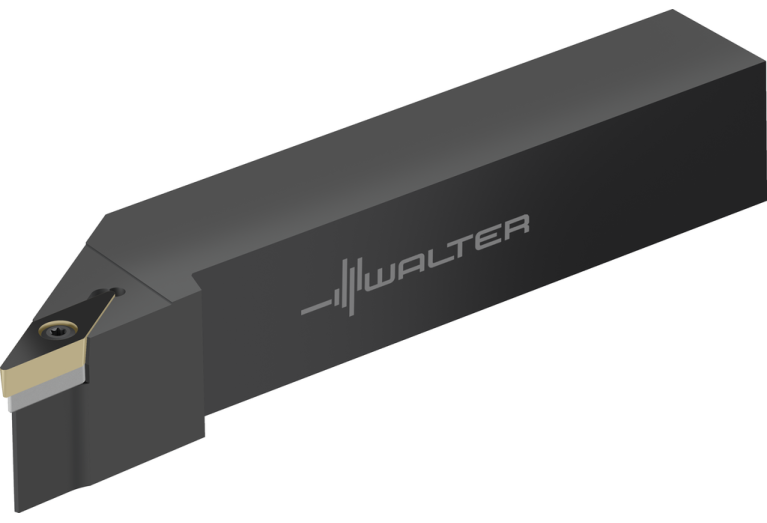

SVJBR102

SVJBR102 SVJBR102 SVJBR102

SVJBR102

Walter
Артикул: 5364818
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT10100125
DIN CSW1
VB1103993N
EPSR Insert included angle
35 Degree
FamilyProducts
Shank tool – Screw clamping SVJB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
15.875 mm
ID Technical product number
5364818
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01B1010$$$$
ISO CSW1
ISO$VB1103003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

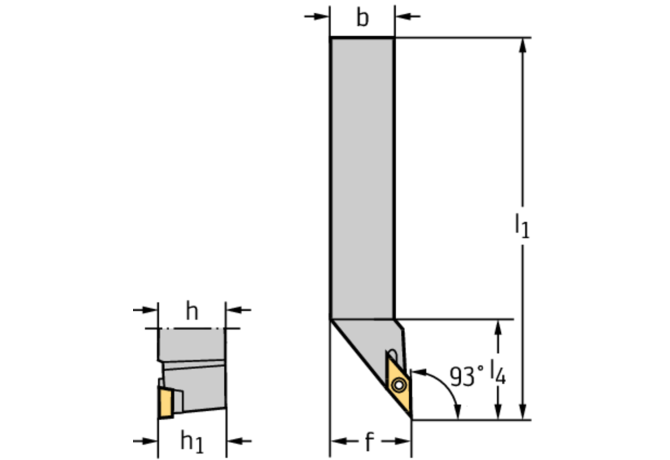

KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LF Functional length
101.6 mm
LOC-03 B Shank width
15.875 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1010
LOC-03 H Shank height
15.875 mm
LOC-03 ISO
VKT01B1010$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100125
LPR Protruding length
101.6 mm
MIID Master insert identification
VBMT 221
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SVJBR102
OAL Overall length
101.6 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
19.05 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.196 kg
