Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning STTCL1616H16

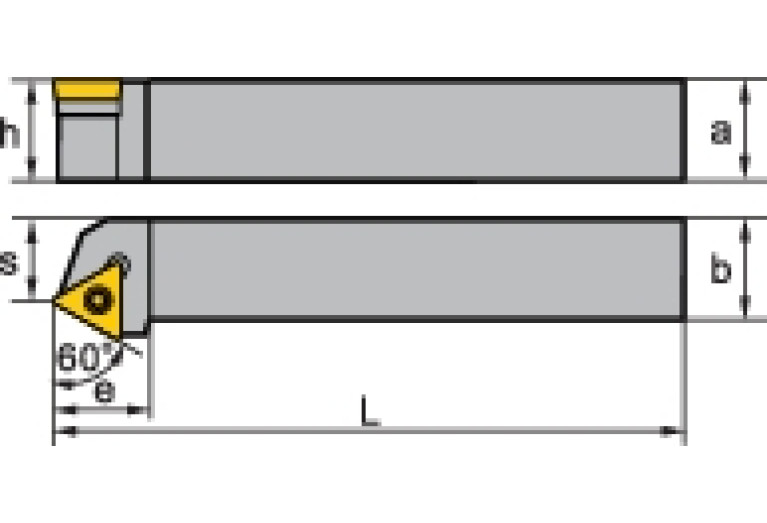

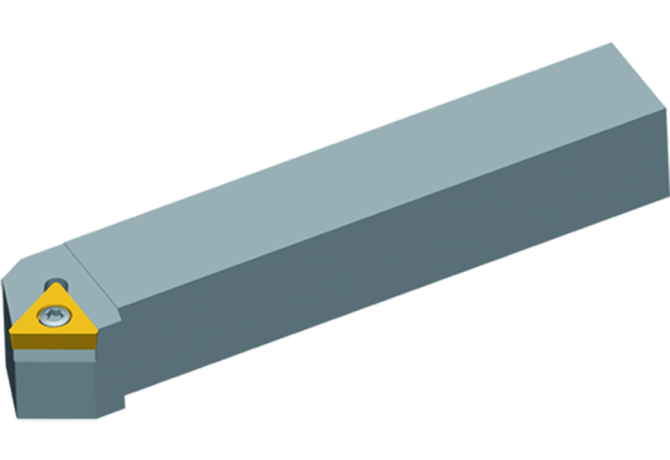

STTCL1616H16

STTCL1616H16 STTCL1616H16 STTCL1616H16

STTCL1616H16

ZCC Cutting Tools
Артикул: STTCL1616H16
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.97 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1.9 kg
DIN
VKT16160105
DIN CSW1
TC16T3123N
EPSR Insert included angle
60 Degree
FamilyProducts
TC** holder (external)
HAND Cutting direction
L - Left
HF Functional height
16 mm
ID Identifying order number
STTCL1616H16
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
60 Degree
L Cutting edge length
16.5 mm
LF Functional length
100 mm
LH Head length
19 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
TCGX16T302
MTP Clamping type code
S - Screwed across bore with, counter bore
OAL Overall length
100 mm
STDDES Standard designation
STTCL1616H16
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
13 mm
Working process
DDA - External turning
