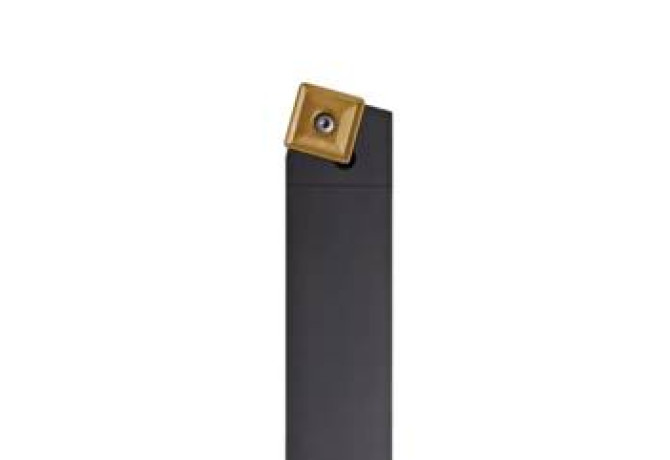

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SSBCR-40-12F

SSBCR-40-12F

SSBCR-40-12F SSBCR-40-12F SSBCR-40-12F SSBCR-40-12F

SSBCR-40-12F

Seco
Артикул: 02885940
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
38.1 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
9.4 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
3.175 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
VKT40400125
DMIN Minimum bore diameter
4500 mm
EPSR Insert included angle
90 Degree
FamilyProducts
SSBCR-40-12F
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
02885940
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$SC3809**3RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

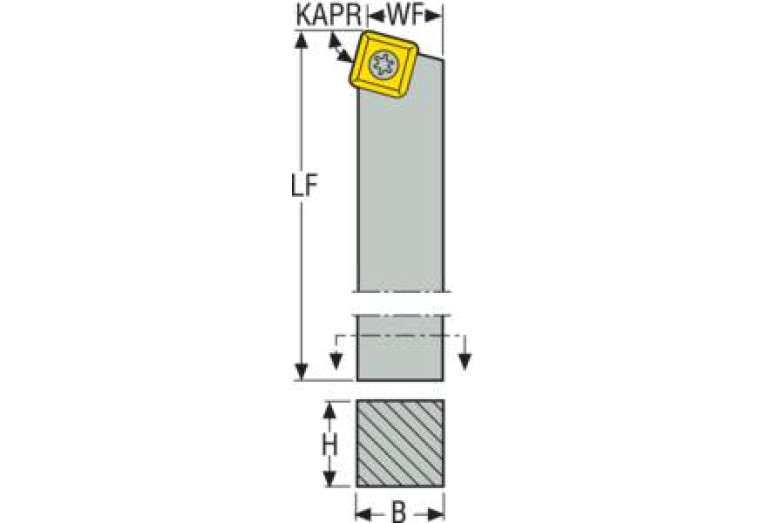

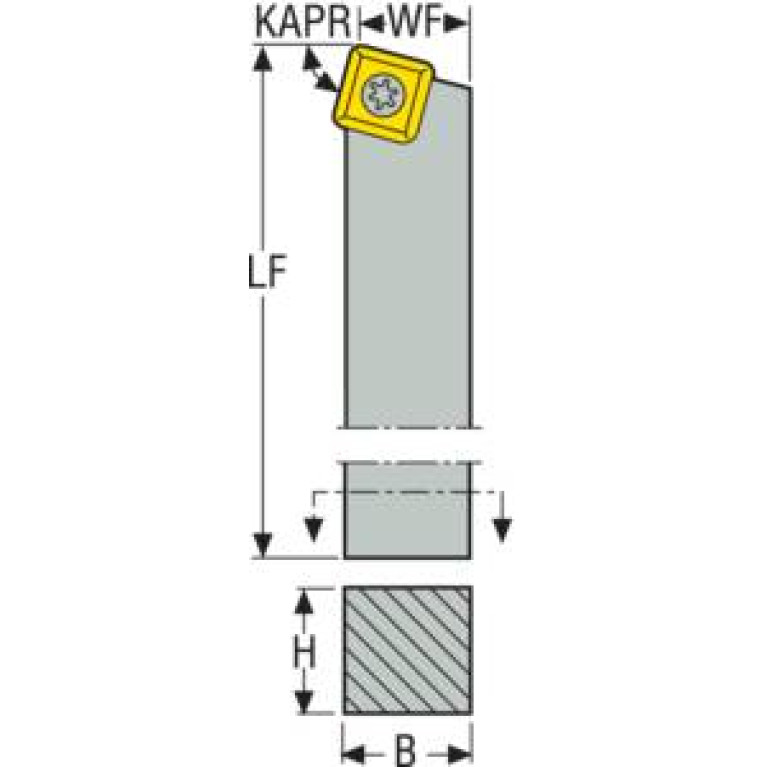

KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
0 Degree

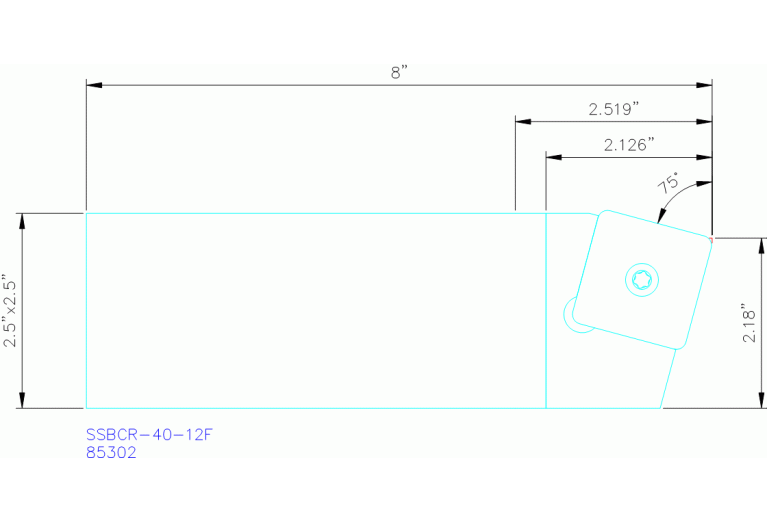

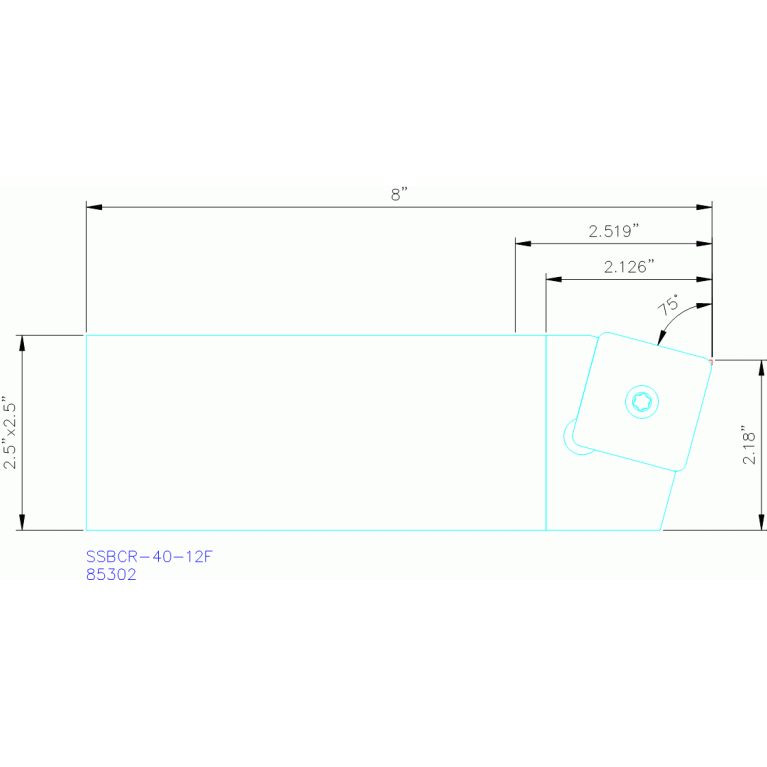

LF Functional length
203.2 mm
LH Head length
54 mm
LOC-03 B Shank width
63.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
4040
LOC-03 H Shank height
63.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400125
MIID Master insert identification
SCMT380932-RR97
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
SSBCR-40-12F
STDDES Standard designation
SSBCR-40-12F
THSC Tool holder shape code
G - straight shank design
WF Functional width
55.37 mm
Working process
No working processes available
WT Weight of item
6.1 kg
