Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SRGCR-12-3

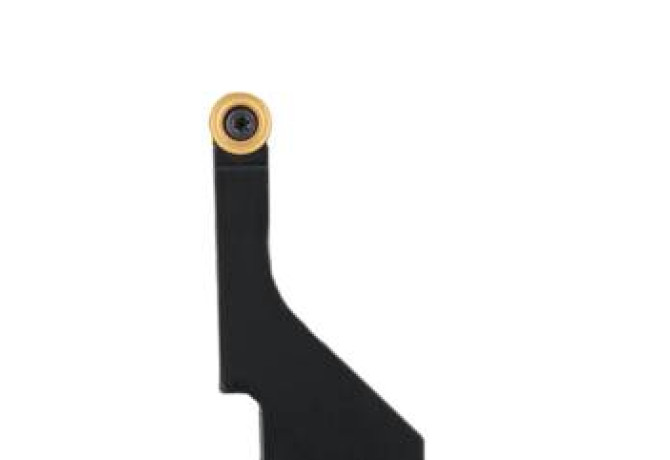

SRGCR-12-3

SRGCR-12-3 SRGCR-12-3 SRGCR-12-3 SRGCR-12-3

SRGCR-12-3

Seco
Артикул: 00013348
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
VKT12120125
FamilyProducts
SRGCR-12-3
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
00013348
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$RC09T3**3RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree

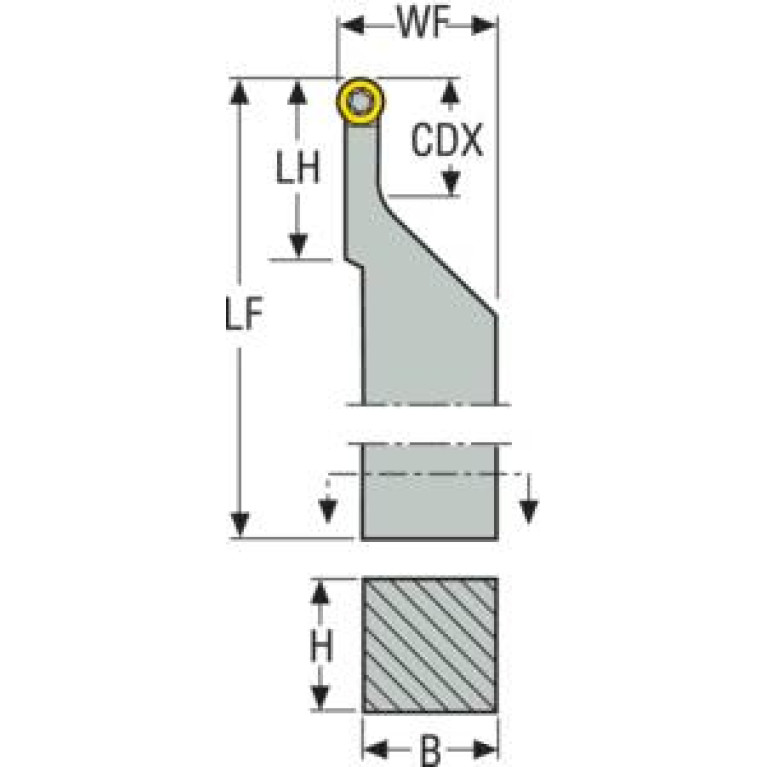

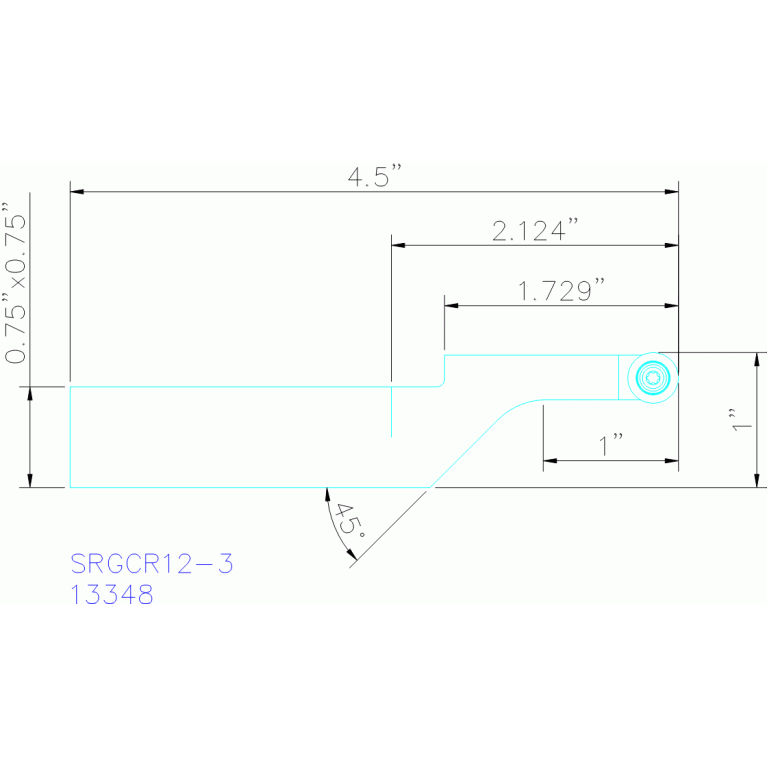

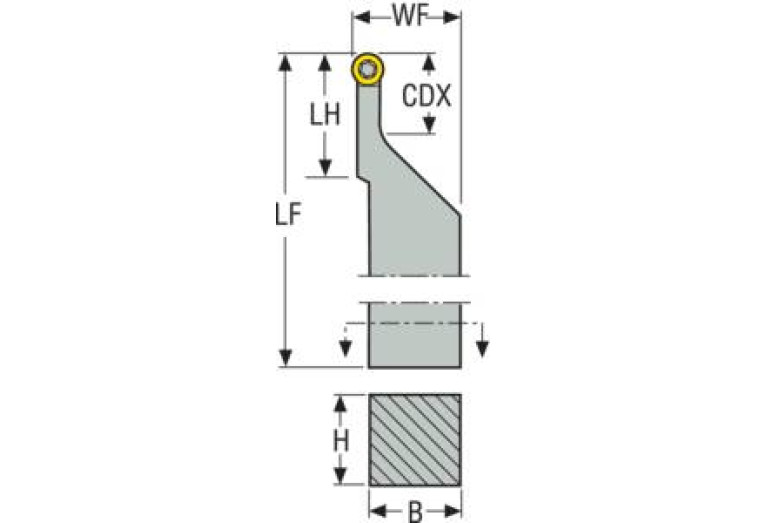

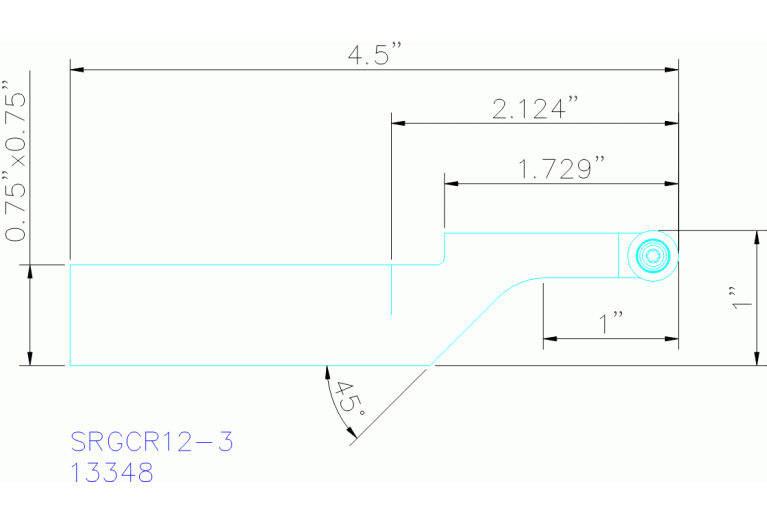

LF Functional length
114.3 mm
LH Head length
43.94 mm
LOC-03 B Shank width
19.05 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1212
LOC-03 H Shank height
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120125
MIID Master insert identification
RCMT09T300-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SRGCR-12-3
STDDES Standard designation
SRGCR-12-3
THSC Tool holder shape code
A - offset shank design
WF Functional width
25.4 mm
Working process
No working processes available
WT Weight of item
0.262 kg
