Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning S40T-CSKNR09

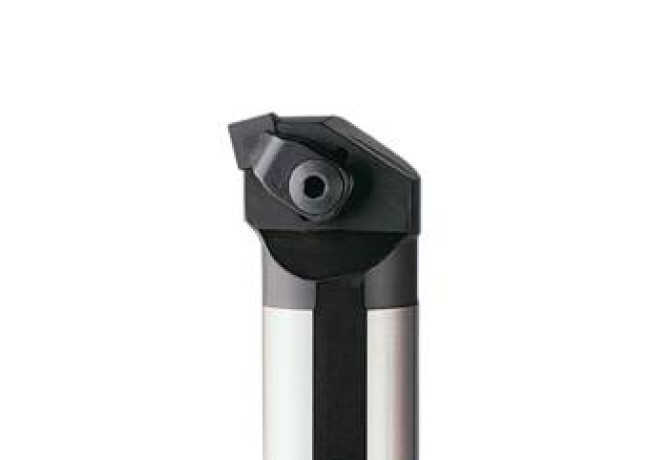

S40T-CSKNR09

S40T-CSKNR09

Seco

Артикул: 75069288

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.794 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

ZYL04002215

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

90 Degree

FamilyProducts

S40T-CSKNR09

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

75069288

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$SN0903**1RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

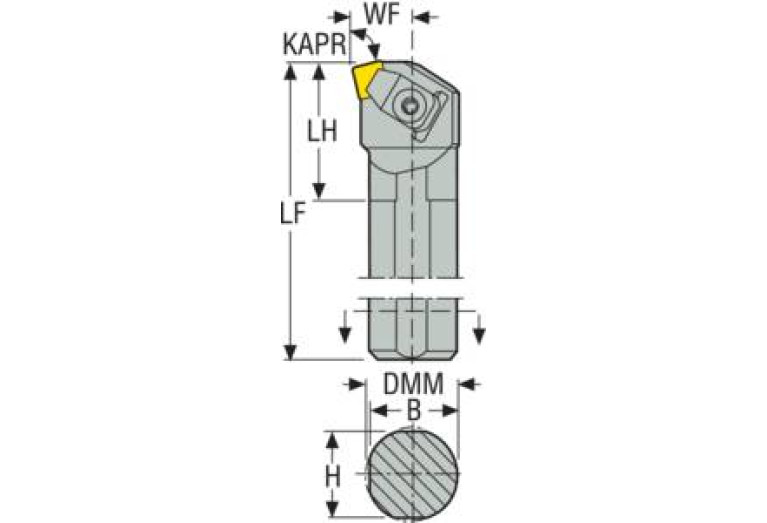

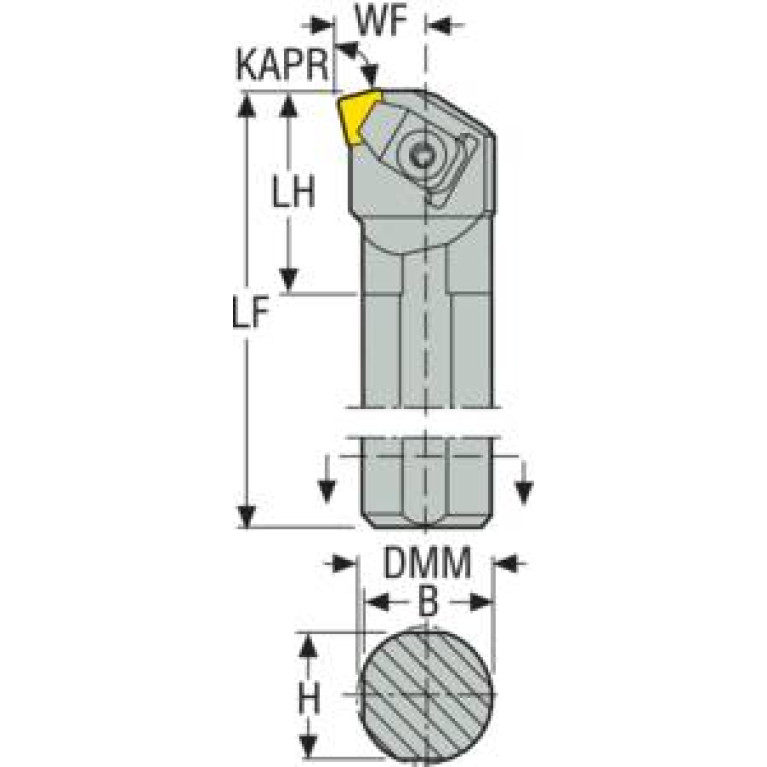

KAPR Tool cutting edge angle

75 Degree

LAMS Inclination angle

-12 Degree

LF Functional length

300 mm

LH Head length

40 mm

LOC-03 B Shank width

38.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

37 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002215

MIID Master insert identification

SNGN090308S-01020

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

S40T-CSKNR09

STDDES Standard designation

S40T-CSKNR09

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

2.8 kg
