Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning S16-STUCR-3

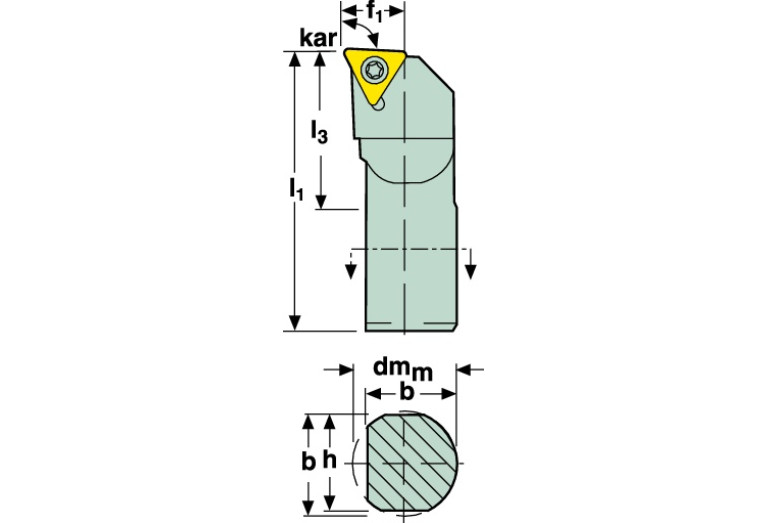

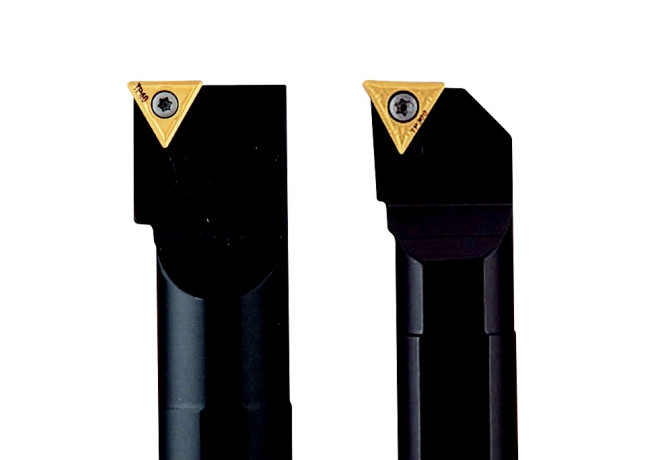

S16-STUCR-3

S16-STUCR-3 S16-STUCR-3 S16-STUCR-3 S16-STUCR-3

S16-STUCR-3

Seco
Артикул: 00076565
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL02542205
DIN CSW1
SO-TC3-16T3N
DMIN Minimum bore diameter
32.512 mm
EPSR Insert included angle
60 Degree
FamilyProducts
S16-STUCR-3
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
-4 Degree
HAND Cutting direction
R - Right
ID Technical product number
00076565
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-4 Degree
LF Functional length
304.8 mm
LH Head length
48.41 mm
LOC-03 B Shank width
21.8 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02542205
MIID Master insert identification
TCMT16T302-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S16-STUCR-3
STDDES Standard designation
S16-STUCR-3
THSC Tool holder shape code
A - offset shank design
WF Functional width
16.26 mm
Working process
No working processes available
WT Weight of item
1.1 kg
