Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning PWLNR-16-4DJETLR

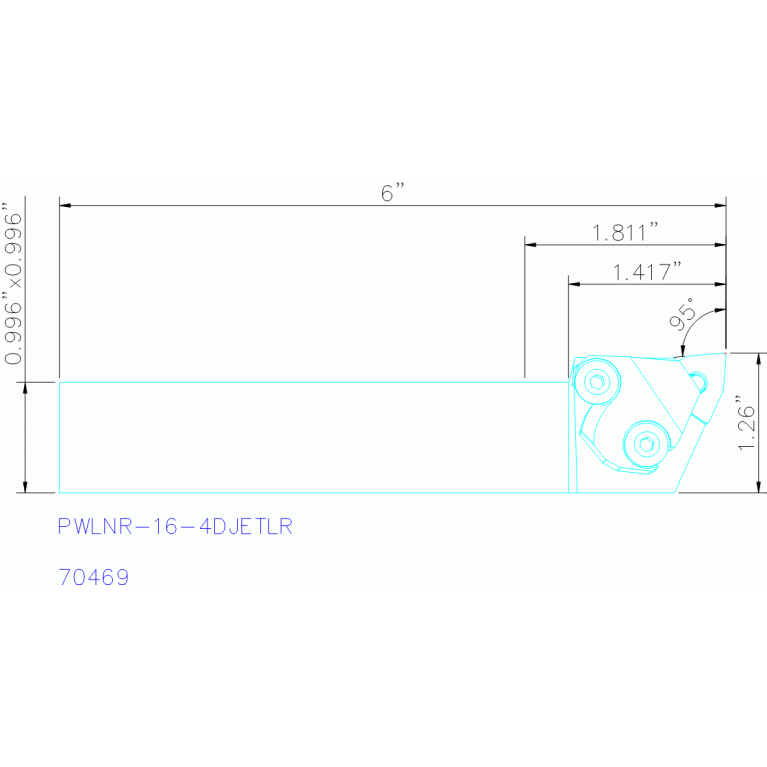

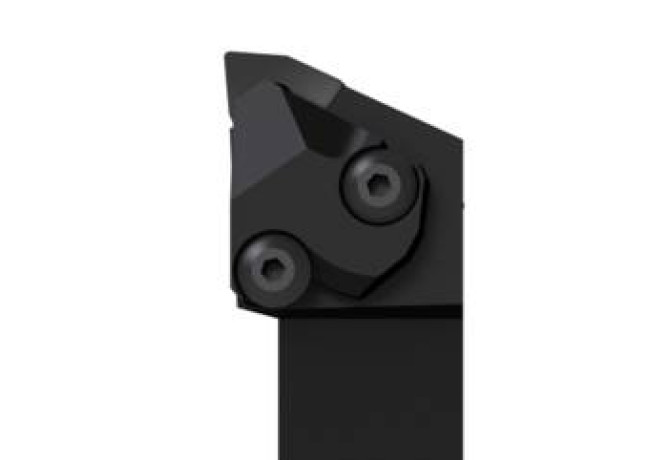

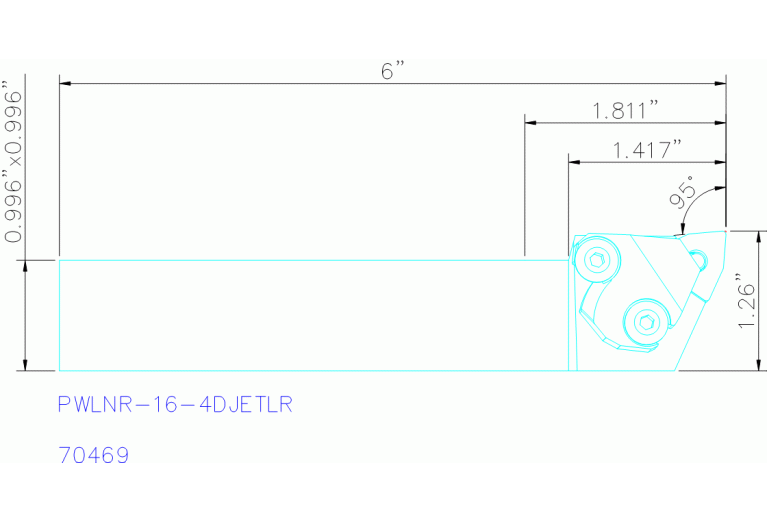

PWLNR-16-4DJETLR

PWLNR-16-4DJETLR PWLNR-16-4DJETLR PWLNR-16-4DJETLR PWLNR-16-4DJETLR

PWLNR-16-4DJETLR

Seco
Артикул: 03134877
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT16160125
DIN CSW1
SO-WN2-0804N
DMIN Minimum bore diameter
210 mm
EPSR Insert included angle
80 Degree
FamilyProducts
PWLNR-16-4DJETLR
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
25.4 mm
ID Technical product number
03134877
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

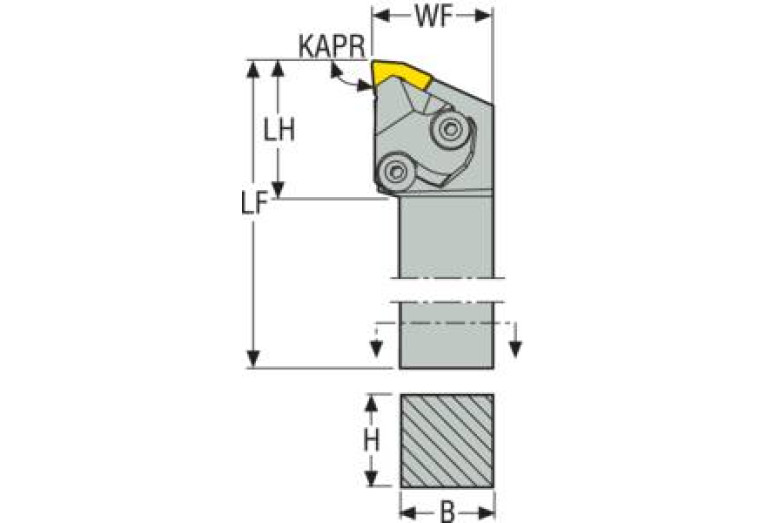

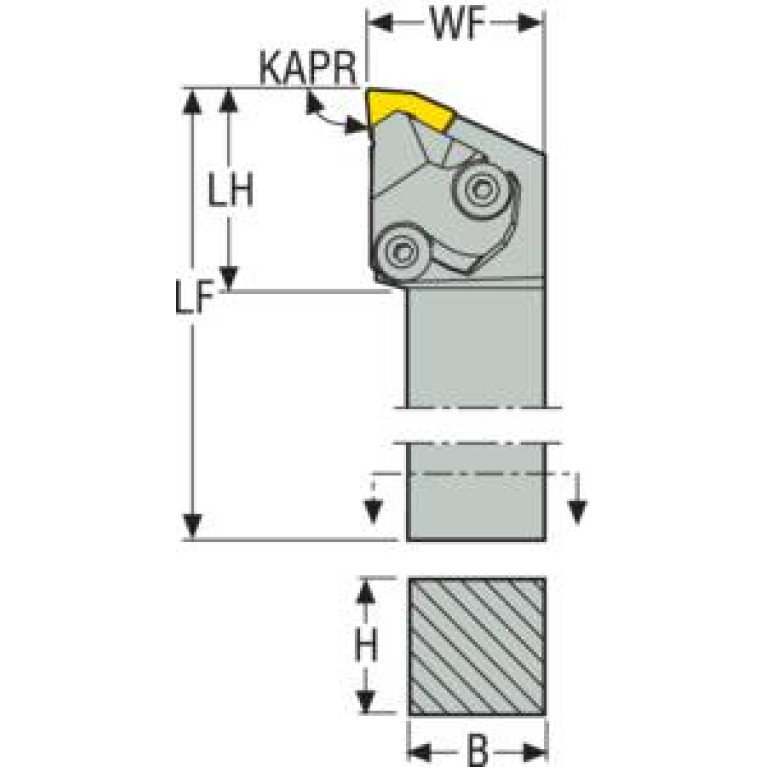

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
152.4 mm
LH Head length
36 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
MIID Master insert identification
WNGG080401-MF1
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
PWLNR-16-4DJETLR
STDDES Standard designation
PWLNR-16-4DJETLR
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.8 kg
