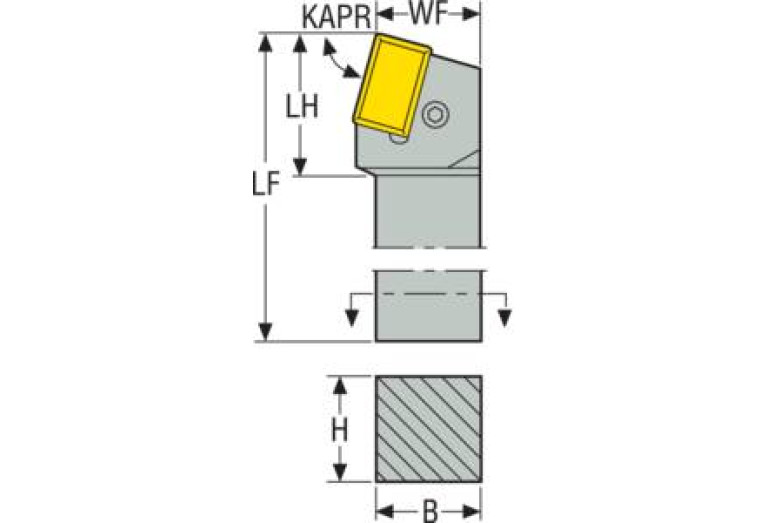

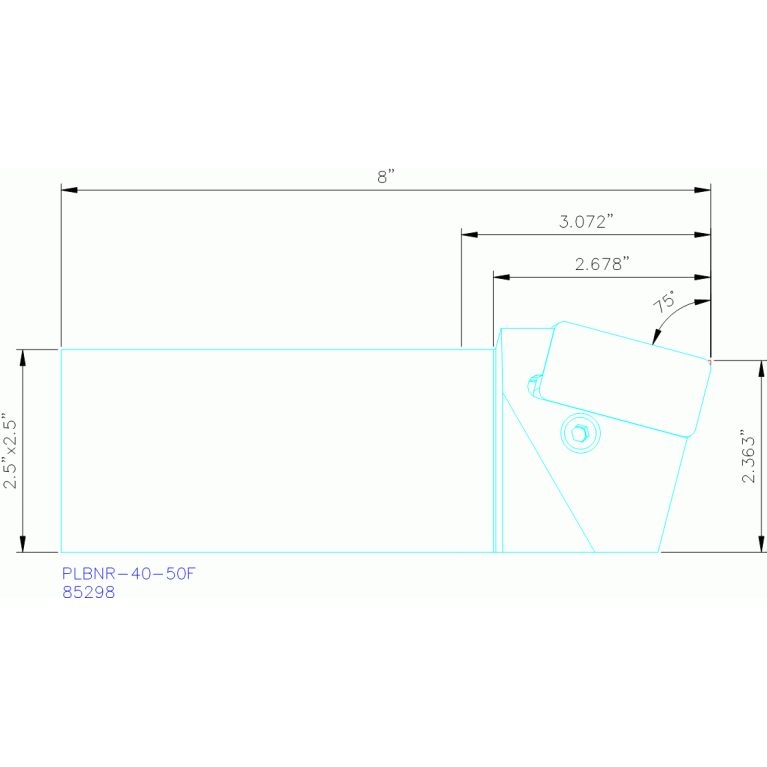

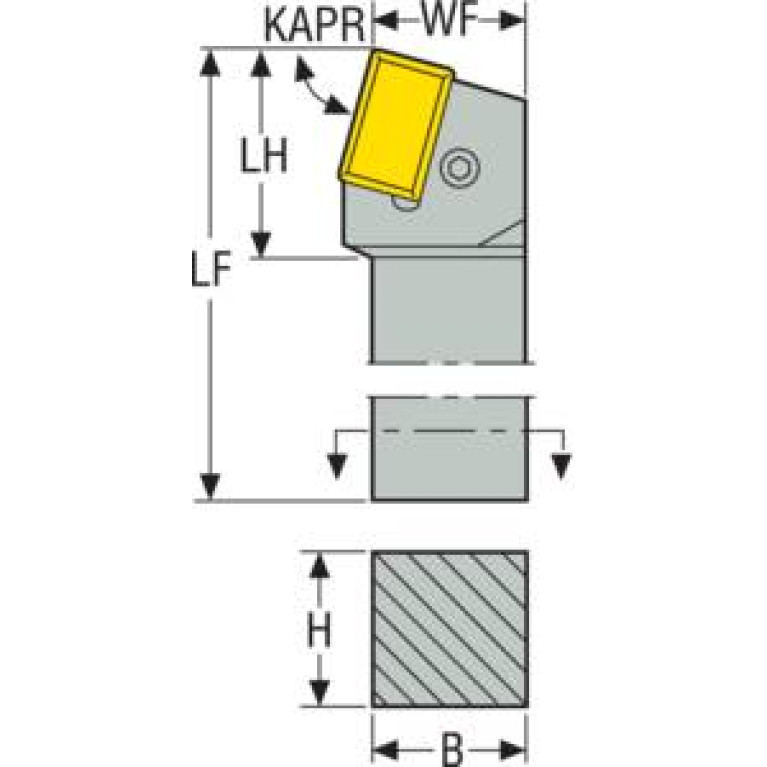

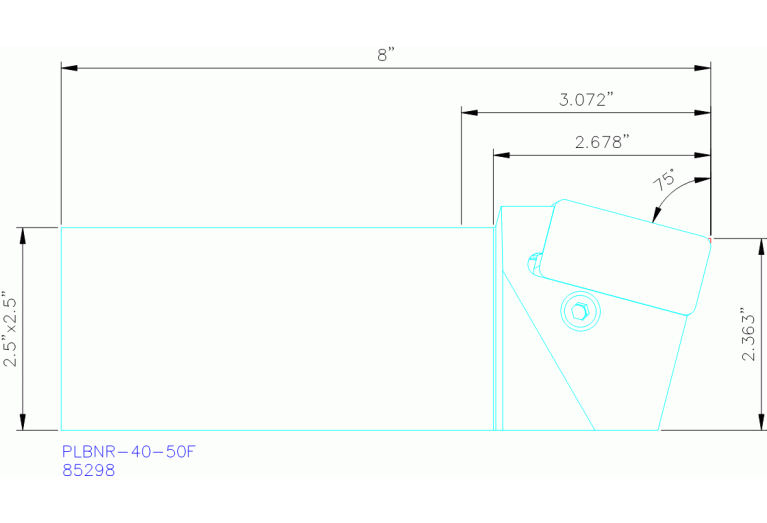

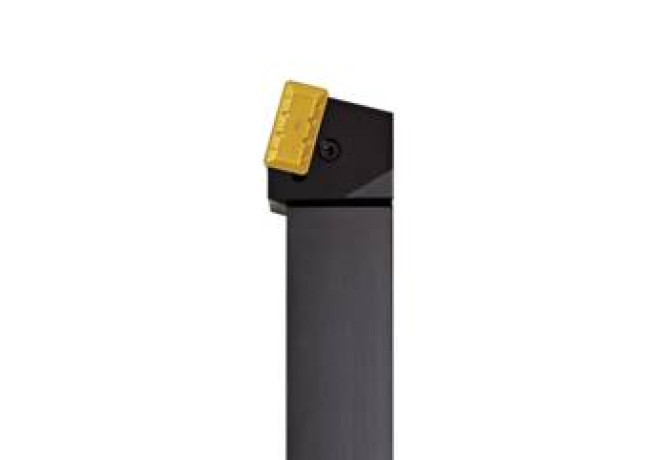

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning PLBNR-40-50F

PLBNR-40-50F

PLBNR-40-50F

Seco

Артикул: 02885938

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

BLDA Tool style code Position A

4

C1A Insert thickness Pos. A

14 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

3.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT40400125

DMIN Minimum bore diameter

900 mm

EPSR Insert included angle

90 Degree

FamilyProducts

PLBNR-40-50F

GAMF Rake angle radial

-4.25 Degree

GAMO Rake angle orthogonal

-6 Degree

GAMP Rake angle axial

-7.33 Degree

HAND Cutting direction

R - Right

HF Functional height

63.5 mm

ID Technical product number

02885938

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$LN5014**1RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

LAMS Inclination angle

-6 Degree

LF Functional length

203.2 mm

LH Head length

68 mm

LOC-03 B Shank width

63.5 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

4040

LOC-03 H Shank height

63.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT40400125

MIID Master insert identification

LNMX501432-RR96

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

PLBNR-40-50F

STDDES Standard designation

PLBNR-40-50F

THSC Tool holder shape code

G - straight shank design

WF Functional width

60.03 mm

Working process

No working processes available

WT Weight of item

6.1 kg
