Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning MVLNR-20-4D

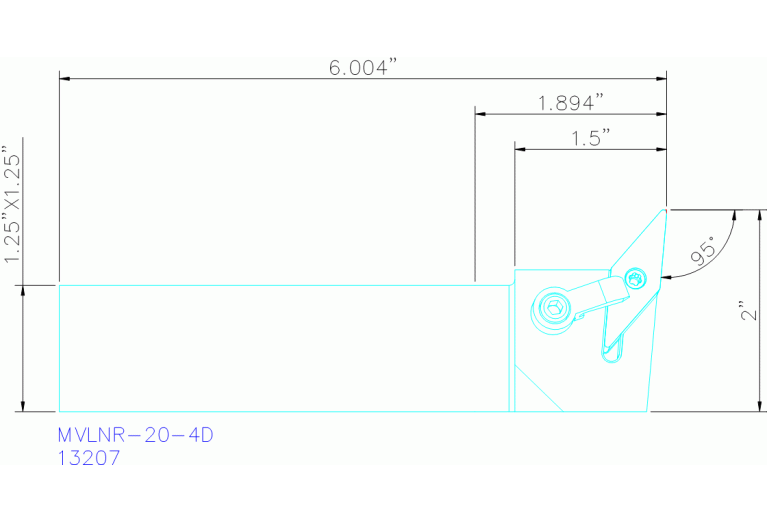

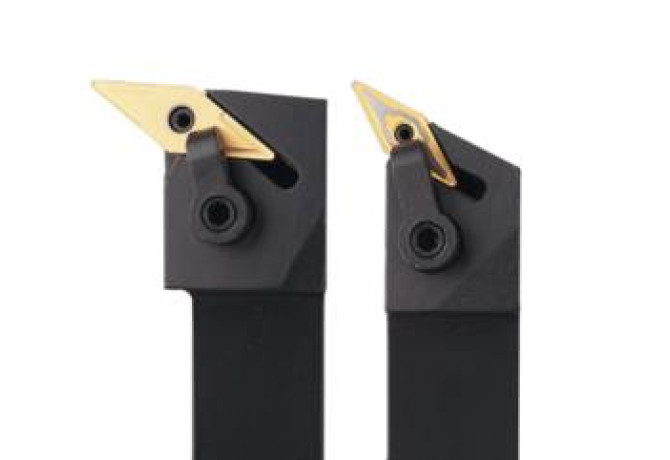

MVLNR-20-4D

MVLNR-20-4D

Seco

Артикул: 00013207

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT20200125

DMIN Minimum bore diameter

400 mm

EPSR Insert included angle

35 Degree

FamilyProducts

MVLNR-20-4D

GAMO Rake angle orthogonal

-4 Degree

GAMP Rake angle axial

-4 Degree

HAND Cutting direction

R - Right

HF Functional height

31.75 mm

ID Technical product number

00013207

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$VN2204**2RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

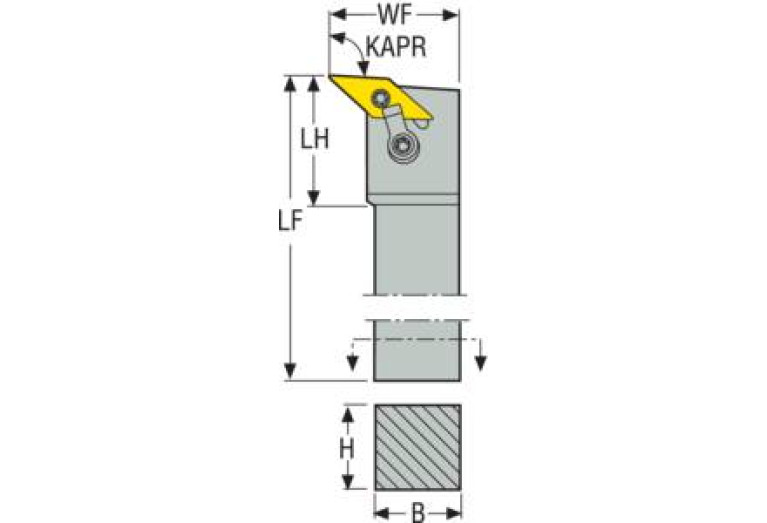

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-13 Degree

LF Functional length

152.4 mm

LH Head length

38.04 mm

LOC-03 B Shank width

31.75 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200125

MIID Master insert identification

VN2204

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

MVLNR-20-4D

STDDES Standard designation

MVLNR-20-4D

THSC Tool holder shape code

A - offset shank design

WF Functional width

50.8 mm

Working process

No working processes available

WT Weight of item

1.38 kg
