Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning MSDNN-16-5

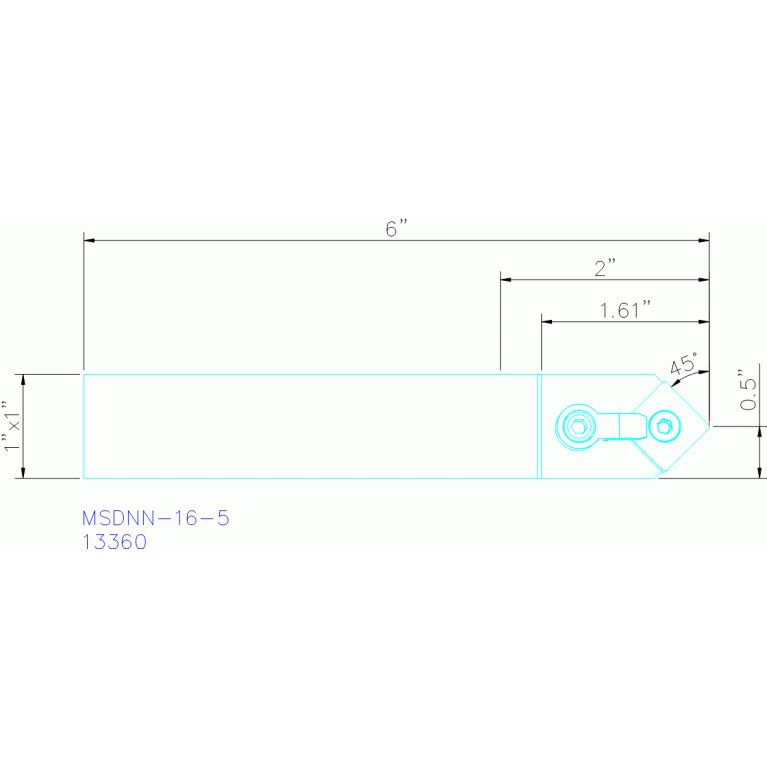

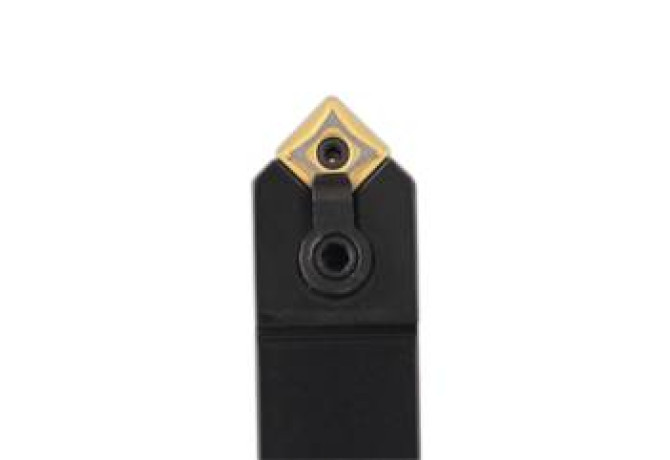

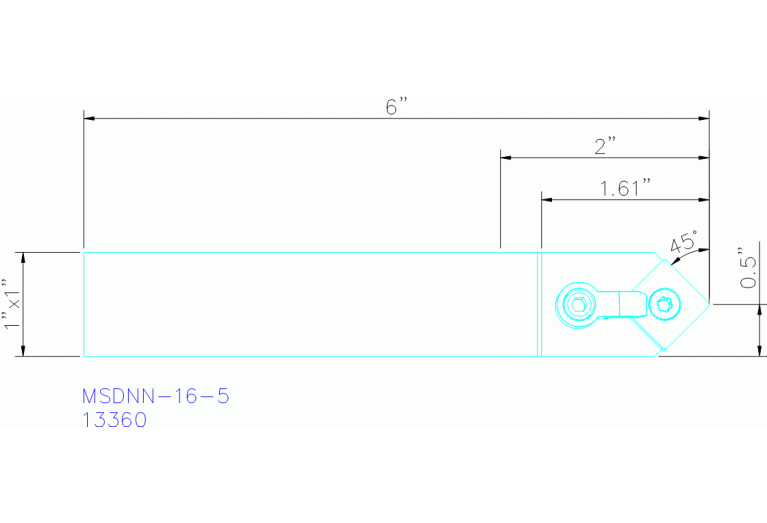

MSDNN-16-5

MSDNN-16-5 MSDNN-16-5 MSDNN-16-5 MSDNN-16-5

MSDNN-16-5

Seco
Артикул: 00013360
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT16160125
DMIN Minimum bore diameter
180 mm
EPSR Insert included angle
90 Degree
FamilyProducts
MSDNN-16-5
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
N - Neutral
HF Functional height
25.4 mm
ID Technical product number
00013360
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$SN1506**2NB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

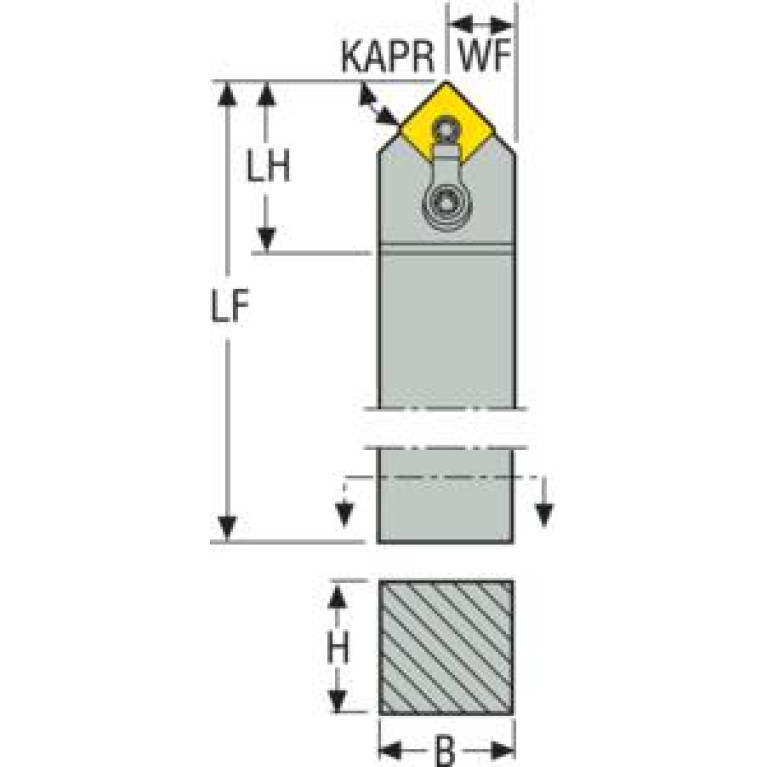

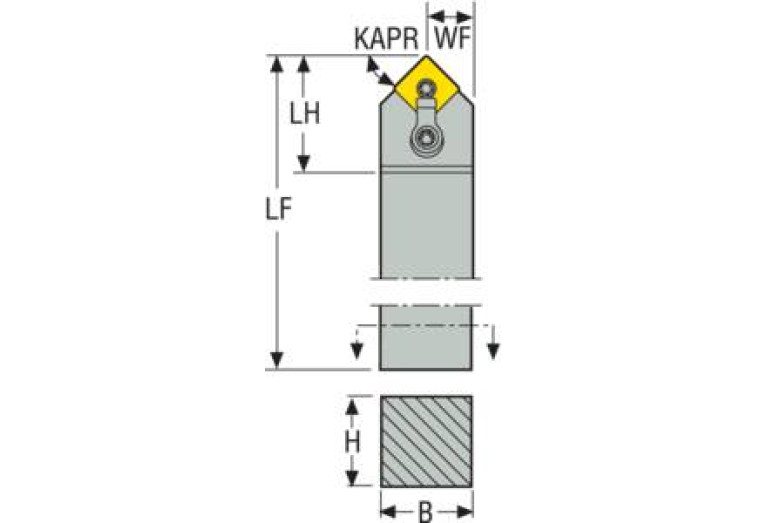

KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
152.4 mm
LH Head length
40.818 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
MIID Master insert identification
SN1506
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
MSDNN-16-5
STDDES Standard designation
MSDNN-16-5
THSC Tool holder shape code
G - straight shank design
WF Functional width
12.7 mm
Working process
No working processes available
WT Weight of item
0.76 kg
