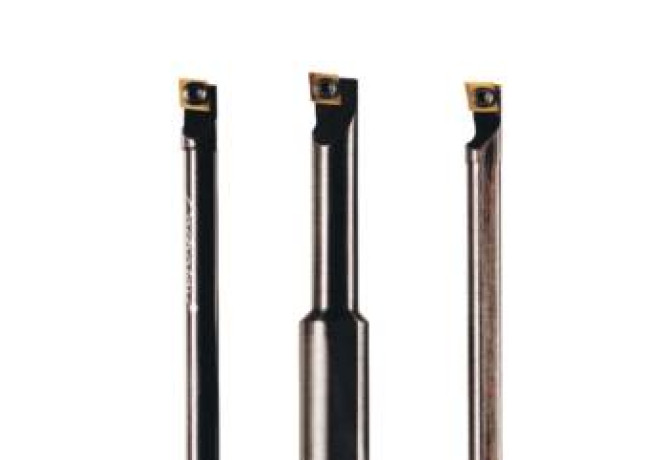

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning H03-SCLDR-1.2

H03-SCLDR-1.2

H03-SCLDR-1.2

Seco

Артикул: 00057648

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

3.969 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

0.966 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL00472215

DIN CSW1

SO-CD3-04T0

DMIN Minimum bore diameter

5.18 mm

EPSR Insert included angle

80 Degree

FamilyProducts

H03-SCLDR-1.2

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

00057648

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

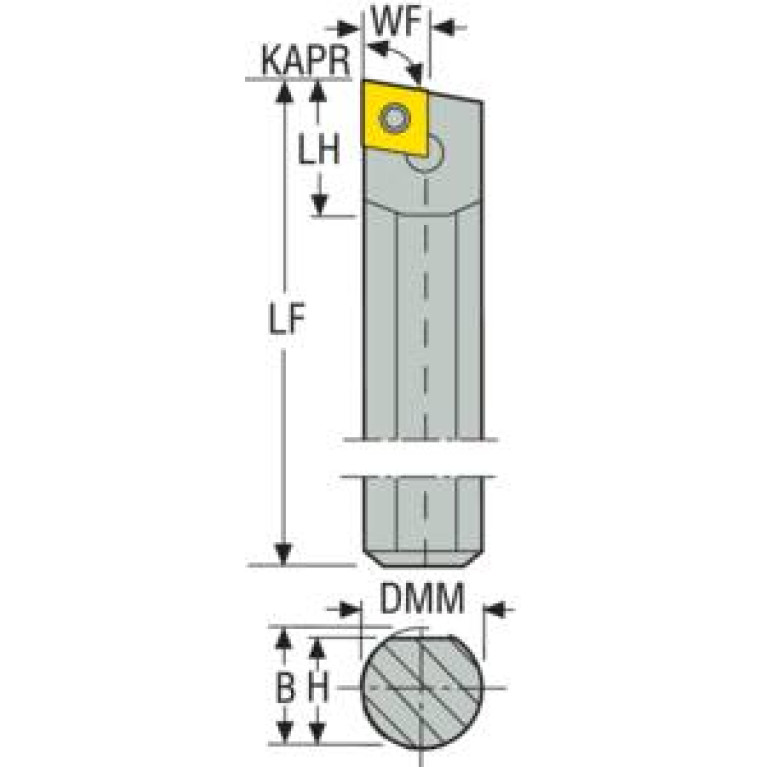

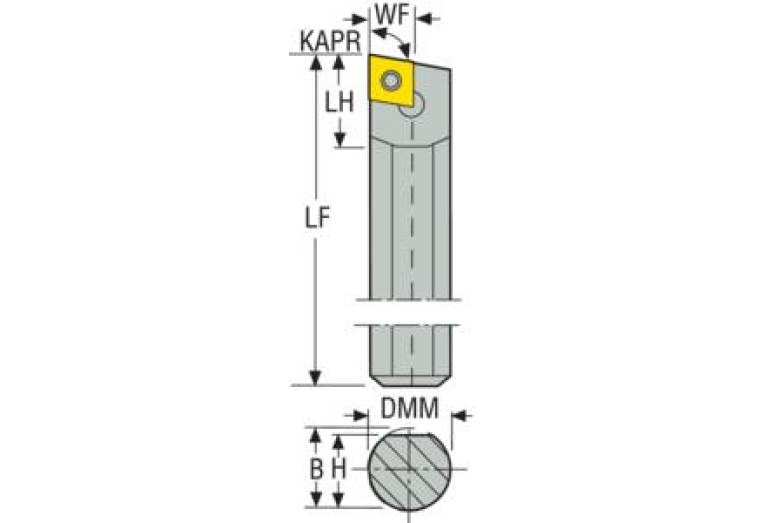

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-17 Degree

LF Functional length

101.6 mm

LH Head length

10 mm

LOC-03 B Shank width

4.76 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0047

LOC-03 DCONMS Diameter

4.76 mm

LOC-03 H Shank height

4.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00472215

MIID Master insert identification

CDCB04T0005

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

H03-SCLDR-1.2

STDDES Standard designation

H03-SCLDR-1.2

THSC Tool holder shape code

A - offset shank design

WF Functional width

2.79 mm

Working process

No working processes available

WT Weight of item

0.01 kg
