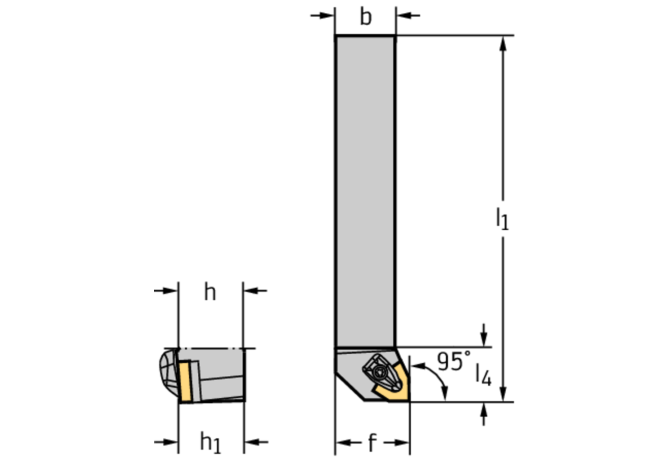

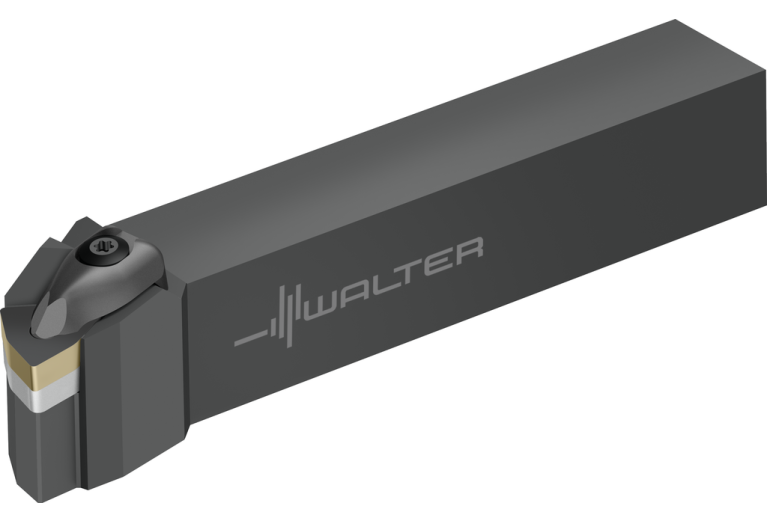

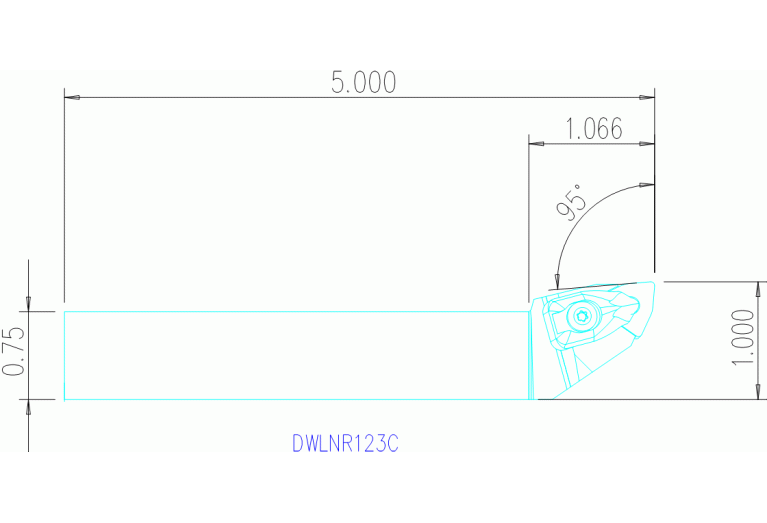

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning DWLNR123C

DWLNR123C

DWLNR123C DWLNR123C DWLNR123C DWLNR123C

DWLNR123C

Walter
Артикул: 5097593
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT12120125
DIN CSW1
WN0604992N
EPSR Insert included angle
80 Degree
FamilyProducts
Shank tool – Rigid clamping DWLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
19.05 mm
ID Technical product number
5097593
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01B1212$$$$
ISO CSW1
ISO$WN0604002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.5 mm
LAMS Inclination angle
-6 Degree
LF Functional length
127 mm
LOC-03 B Shank width
19.05 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1212
LOC-03 H Shank height
19.05 mm
LOC-03 ISO
VKT01B1212$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120125
LPR Protruding length
127 mm
MIID Master insert identification
WNMG 332
MTP Clamping type code
D
Name Identifying order number
DWLNR123C
OAL Overall length
127 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
25.4 mm
Working process
DDA - External turning
WT Weight of item
0.39 kg
