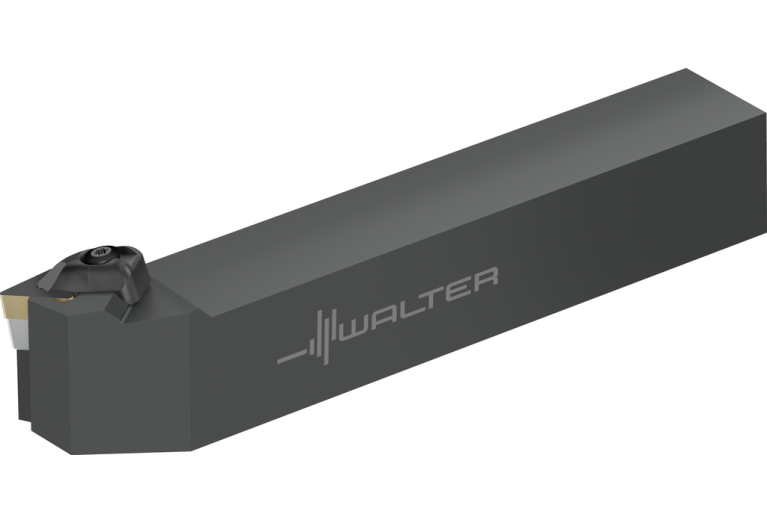

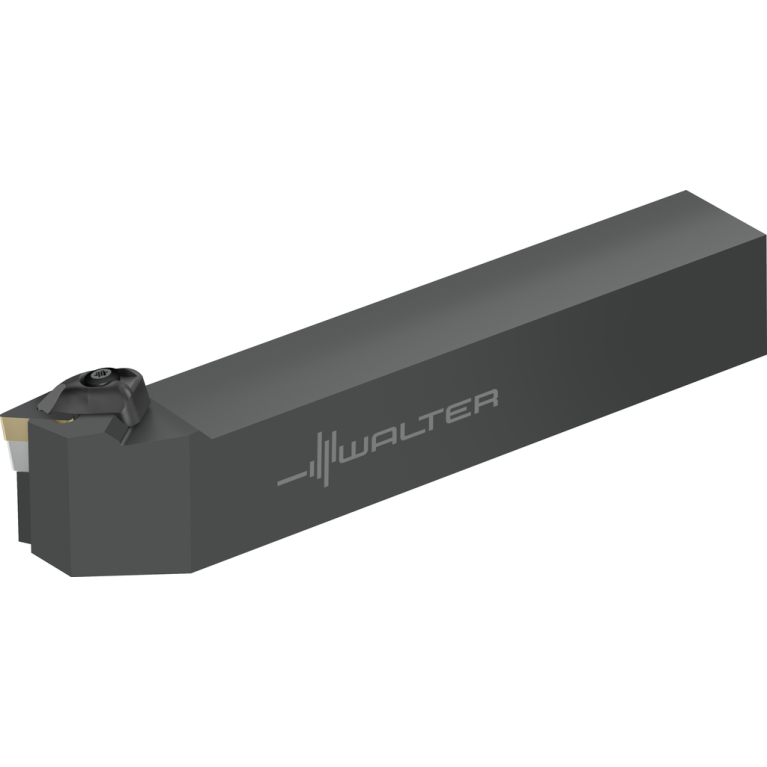

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning DTJNL123B

DTJNL123B

DTJNL123B DTJNL123B DTJNL123B

DTJNL123B

Walter
Артикул: 5097534
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT12120125
DIN CSW1
TN1604992N
EPSR Insert included angle
60 Degree
FamilyProducts
Shank tool – Rigid clamping DTJN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left

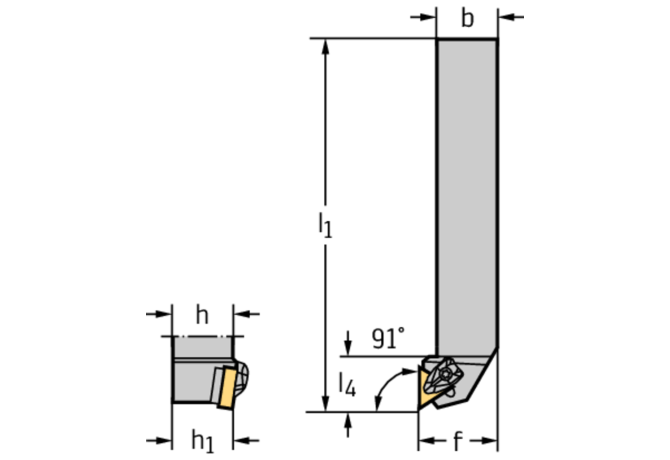

HF Functional height
19.05 mm
ID Technical product number
5097534
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01B1212$$$$
ISO CSW1
ISO$TN1604002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
16.5 mm
LAMS Inclination angle
-6 Degree
LF Functional length
114.3 mm
LOC-03 B Shank width
19.05 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1212
LOC-03 H Shank height
19.05 mm
LOC-03 ISO
VKT01B1212$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120125
LPR Protruding length
114.3 mm
MIID Master insert identification
TNMG 332
MTP Clamping type code
D
Name Identifying order number
DTJNL123B
OAL Overall length
114.3 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
25.4 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.363 kg
