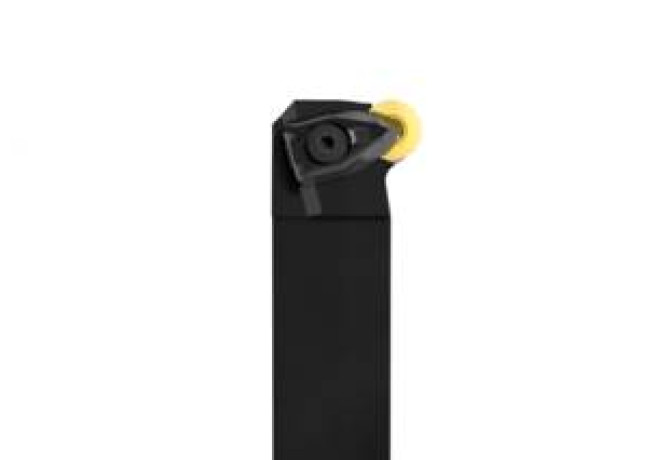

DRGNR-16-4D

DRGNR-16-4D DRGNR-16-4D DRGNR-16-4D DRGNR-16-4D

DRGNR-16-4D

Seco
Артикул: 02565514
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT16160125
FamilyProducts
DRGNR-16-4D
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02565514
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$RN1204**2RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-6 Degree

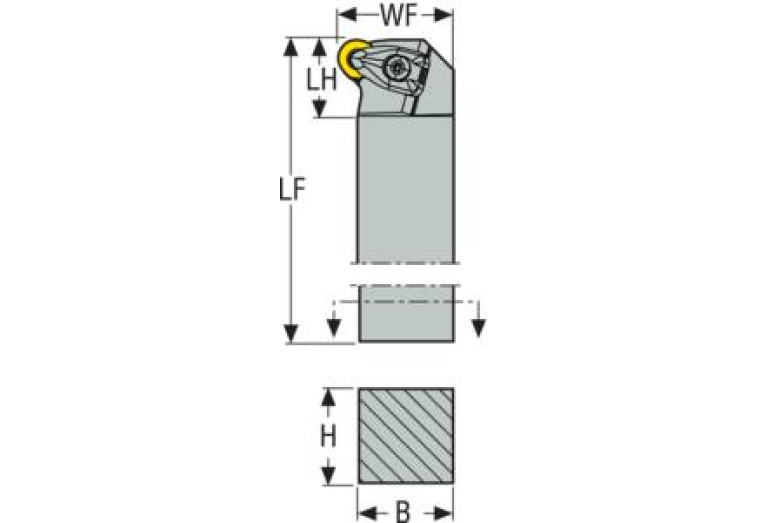

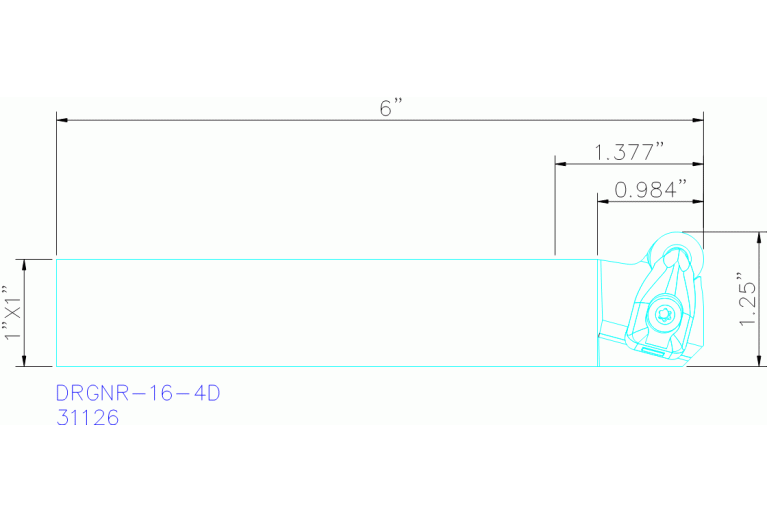

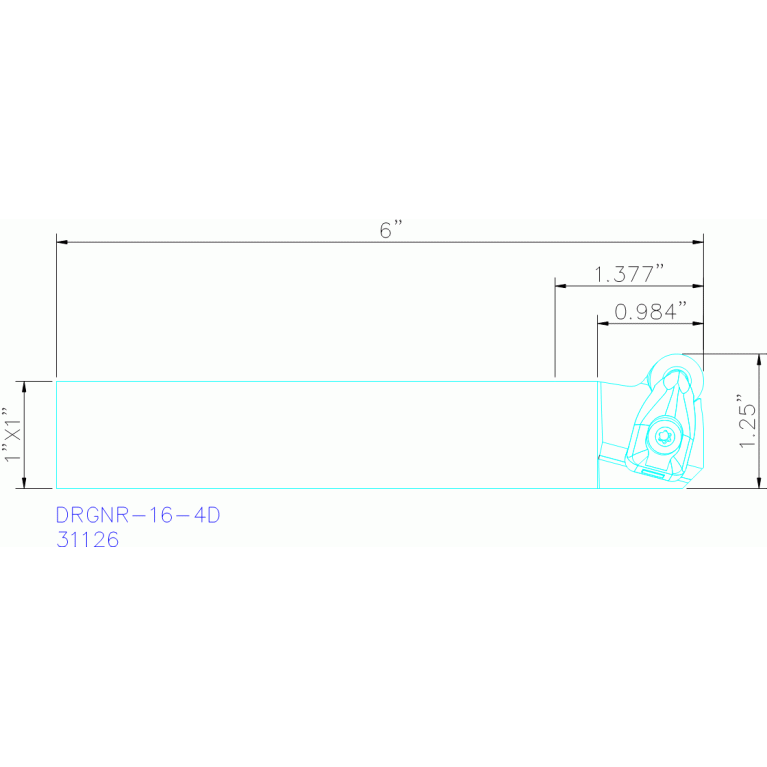

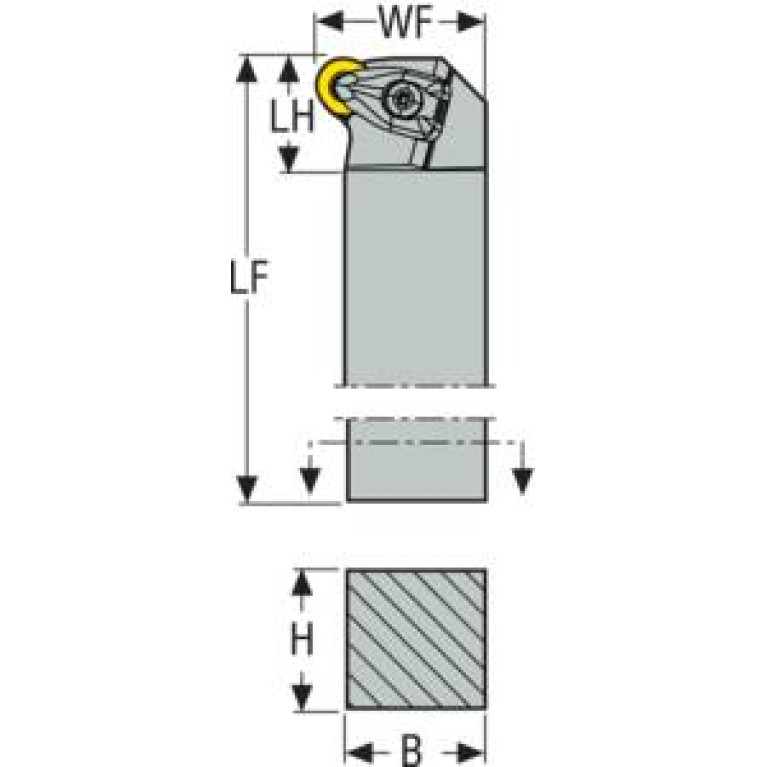

LF Functional length
152.4 mm
LH Head length
30 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
MIID Master insert identification
RN1204
MTP Clamping type code
D
Name Identifying order number
DRGNR-16-4D
STDDES Standard designation
DRGNR-16-4D
THSC Tool holder shape code
A - offset shank design
WF Functional width
31.75 mm
Working process
No working processes available
WT Weight of item
0.78 kg
